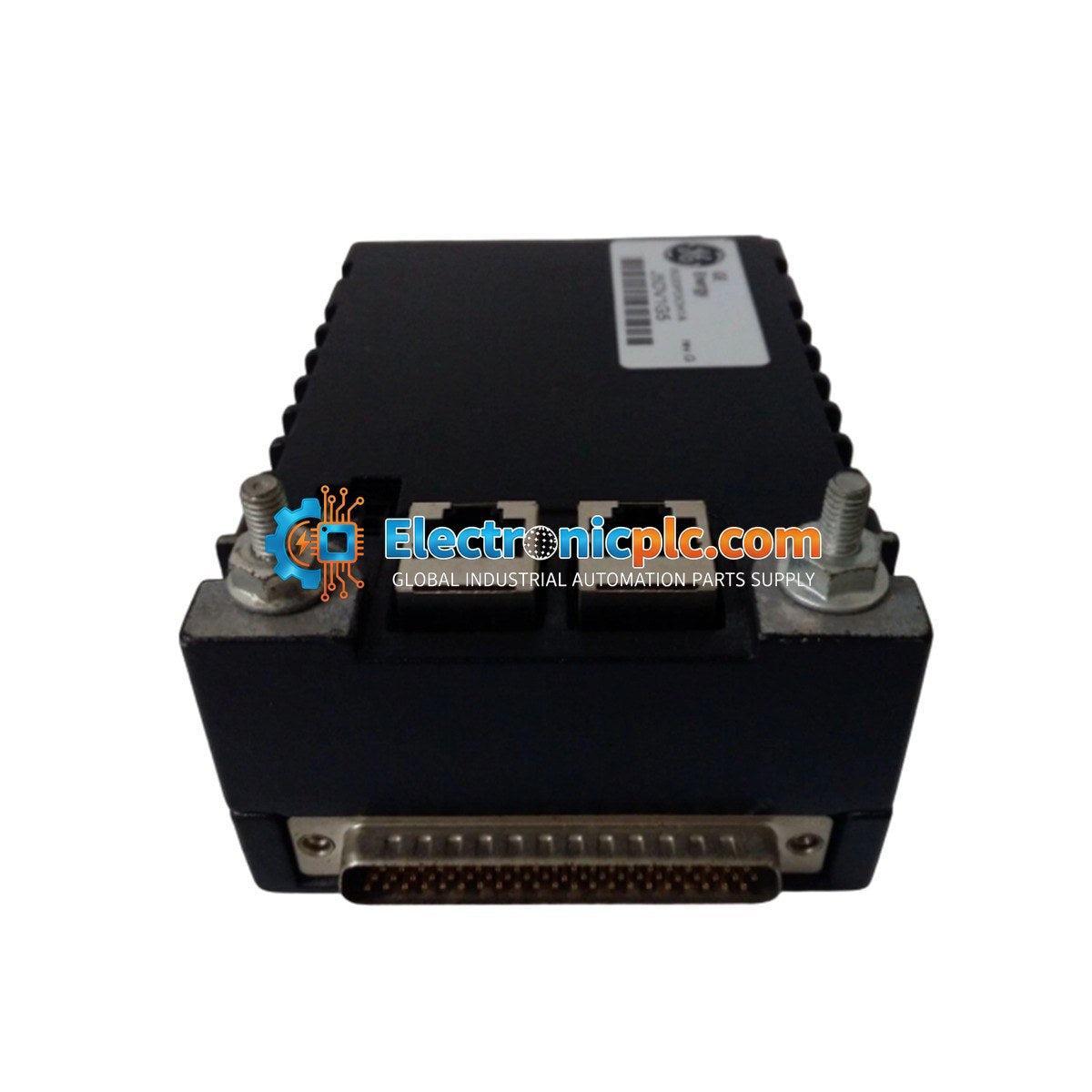

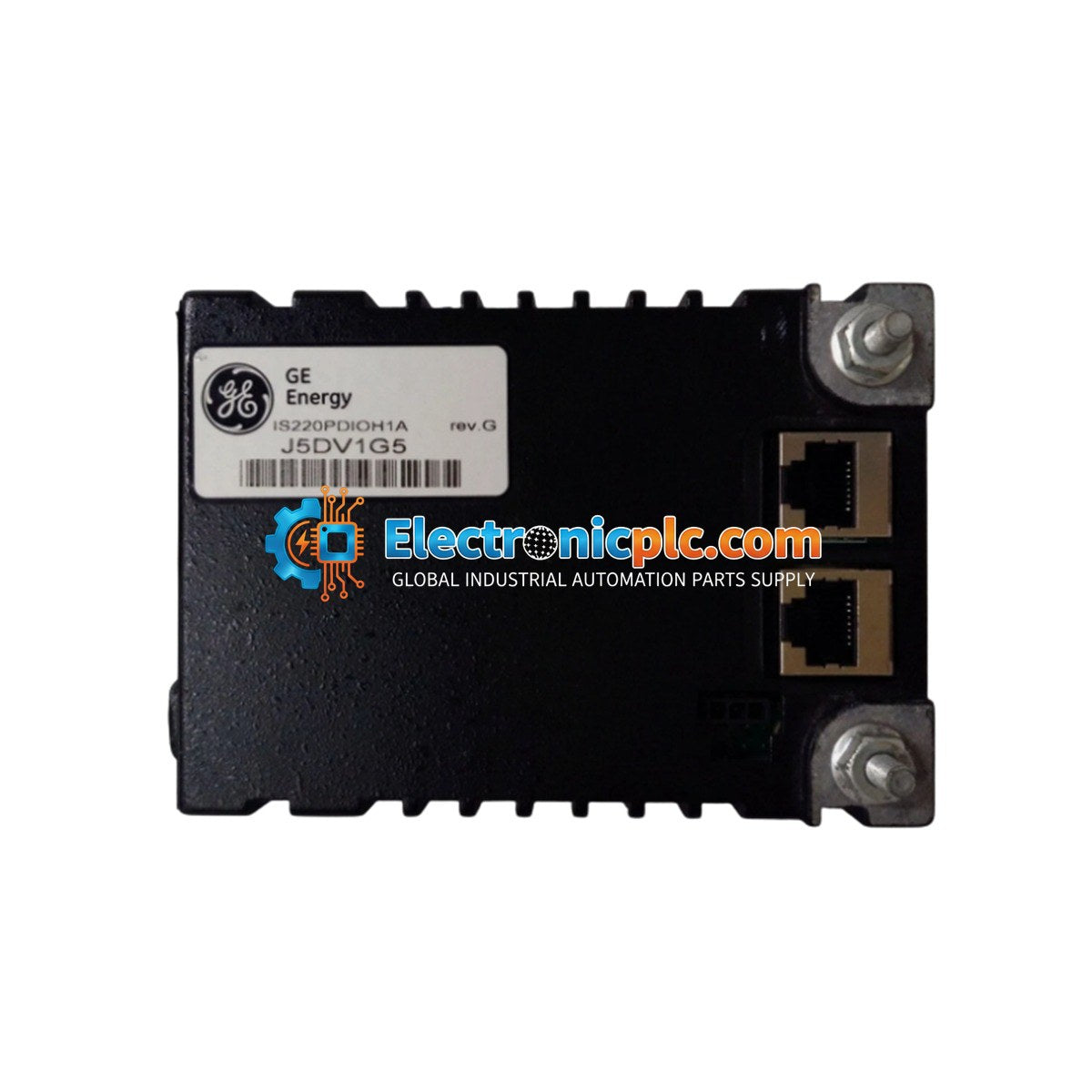

General Electric IS220PDIOH1A Mark VIe Discrete I/O Pack

General Electric IS220PDIOH1A Mark VIe Discrete I/O Pack

Description

The General Electric IS220PDIOH1A is a high-performance Discrete I/O Pack designed for the Mark VIe Speedtronic turbine control system. This module serves as a critical interface between the I/O Ethernet...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: IS220PDIOH1A
Proveedora: General Electric
tipo: Discrete I/O Pack
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IS220PDIOH1A is a high-performance Discrete I/O Pack designed for the Mark VIe Speedtronic turbine control system. This module serves as a critical interface between the I/O Ethernet networks and the associated discrete input/output terminal boards. It is engineered to provide reliable real-time data acquisition and relay control for industrial turbine management, including steam, gas, and wind turbine applications.

Features

  • System Compatibility: Designed specifically for the GE Mark VIe control platform.
  • I/O Capacity: Supports 24 contact inputs and 12 Form C mechanical relay outputs.
  • Communication: Features dual 100MB Ethernet ports for redundant network connectivity.
  • Hazardous Location Support: Approved for use in hazardous environments (Ex ic nA [ic] IIC T4 Gc) when paired with compatible terminal boards such as the IS200TDBSH2A and IS200TDBTH2A.
  • Diagnostics: Integrated front-panel LED indicators for Ethernet status, power, and attention (attn) alerts.
  • Local Processing: Equipped with an onboard processor for local I/O management and communication handling.

Technical Specifications

Model IS220PDIOH1A
Manufacturer General Electric
Input Channels 24 Contact Inputs
Output Channels 12 Form C Mechanical Relays
Input Voltage Range 5V DC / 24V DC
Output Voltage Range 5V DC – 250V AC
Response Time <5ms
Input Isolation 1500 V
Operating Temperature -40 degC to +70 degC
Nominal Voltage 28.0 VDC

Installation Guidelines

  • Mounting: Secure the compatible terminal board to the cabinet frame before seating the PDIO pack into the designated connectors.
  • Handling: Use caution when inserting the module to avoid applying excessive force to the DC-62 pin connector.
  • Connectivity: Connect RJ45 Ethernet cables to the ENET1 and ENET2 ports as required by the system architecture (e.g., R controller).
  • Power: Connect the 3-pin power supply; the module includes integrated soft-start functionality to manage inrush current.
  • Environment: Ensure the installation site meets the environmental ratings specified for the Mark VIe series to maintain hazardous location compliance.

FAQs

What is the primary function of the IS220PDIOH1A?

The IS220PDIOH1A acts as an interface module that bridges the gap between the I/O Ethernet network and field-level discrete devices, managing up to 24 inputs and 12 relay outputs for turbine control.

Can this module be used in hazardous locations?

Yes, the IS220PDIOH1A is approved for use in hazardous locations when installed in accordance with GE documentation and paired with approved terminal boards like the IS200TDBSH2A or IS200TDBTH2A.

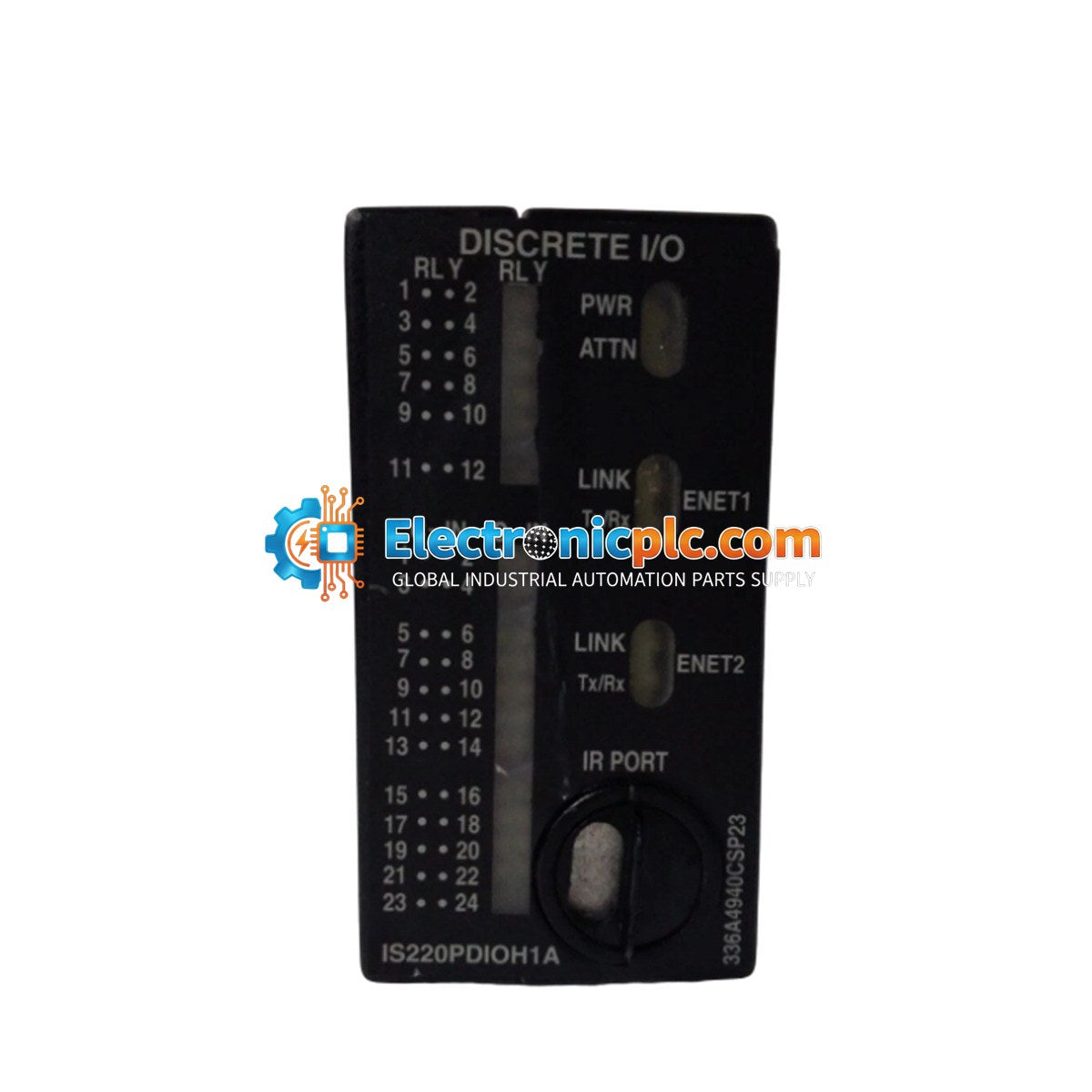

What does the front panel LED array indicate?

The LEDs provide visual status for the two Ethernet ports, the unit's power supply status, and an 'attn' (attention) LED for system diagnostics, along with indicators for relay channel status.
