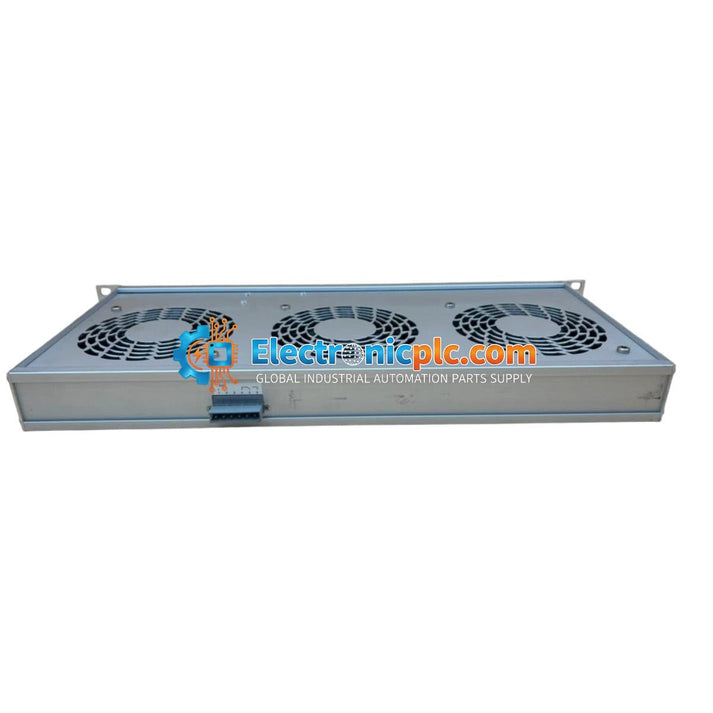

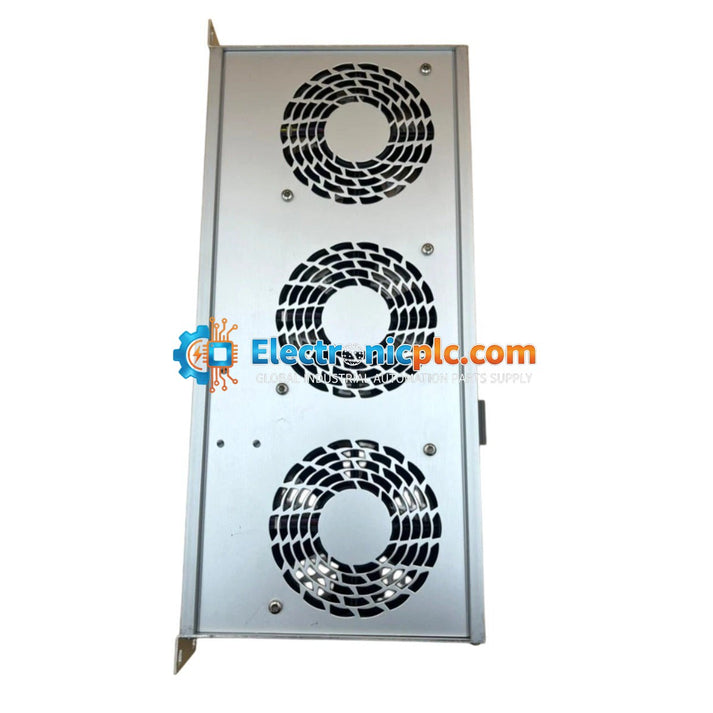

HIMA K 9203 Circulation Fan Drawer

HIMA K 9203 Circulation Fan Drawer

Description

The HIMA K 9203 is a specialized 3-axis circulation fan drawer designed for thermal management within HIMA HIMatrix safety cabinets. This unit is essential for maintaining optimal operating temperatures in...

22 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: K 9203
Proveedora: HIMA
tipo: Industrial Cooling Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The HIMA K 9203 is a specialized 3-axis circulation fan drawer designed for thermal management within HIMA HIMatrix safety cabinets. This unit is essential for maintaining optimal operating temperatures in high-integrity environments, such as power plants and refineries, by ensuring uniform air distribution across PLC racks and preventing localized hotspots. The K 9203 features an integrated run monitoring system that provides real-time feedback to the safety controller, enabling proactive maintenance and minimizing the risk of system downtime due to thermal stress.

Features

  • Triple axial fan configuration for efficient cabinet cooling.
  • Integrated run monitor for immediate detection of fan failure or mechanical blockage.
  • Robust metal chassis providing structural integrity and electromagnetic shielding.
  • Hot-swappable design for rapid maintenance and reduced MTTR (Mean Time To Repair).
  • Engineered specifically for compatibility with HIMA HIMatrix safety-instrumented system cabinets.

Applications

The K 9203 is primarily used in industrial safety-instrumented systems (SIS) where consistent thermal regulation is critical for the longevity and reliability of safety controllers. It is suitable for deployment in harsh industrial environments including chemical processing, oil and gas, and power generation facilities.

Technical Specifications

Brand HIMA
Model K 9203
Type 3-Axis Fan Drawer
Supply Voltage 24 VDC
Current Draw 0.8 A
Monitoring Integrated Run Monitor
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the cabinet power is isolated before installing or removing the fan drawer.
  • Slide the unit into the designated rack slot, ensuring the connectors are fully seated.
  • Verify that the status monitoring output is correctly wired to the HIMA controller input to enable fault detection.
  • Keep the intake and exhaust areas clear of obstructions to maintain rated airflow.
  • Handle with care to avoid damage to the fan blades or the internal monitoring circuitry.

FAQ

Does the K 9203 support hot-swapping?

Yes, the unit is designed for hot-swappable operation, allowing for replacement without requiring a full system shutdown, provided local safety procedures are followed.

How does the controller detect a fan failure?

The K 9203 includes an integrated run monitor that transmits a status signal to the safety controller. If a fan stops or becomes blocked, the controller receives an alert, allowing for immediate maintenance intervention.
