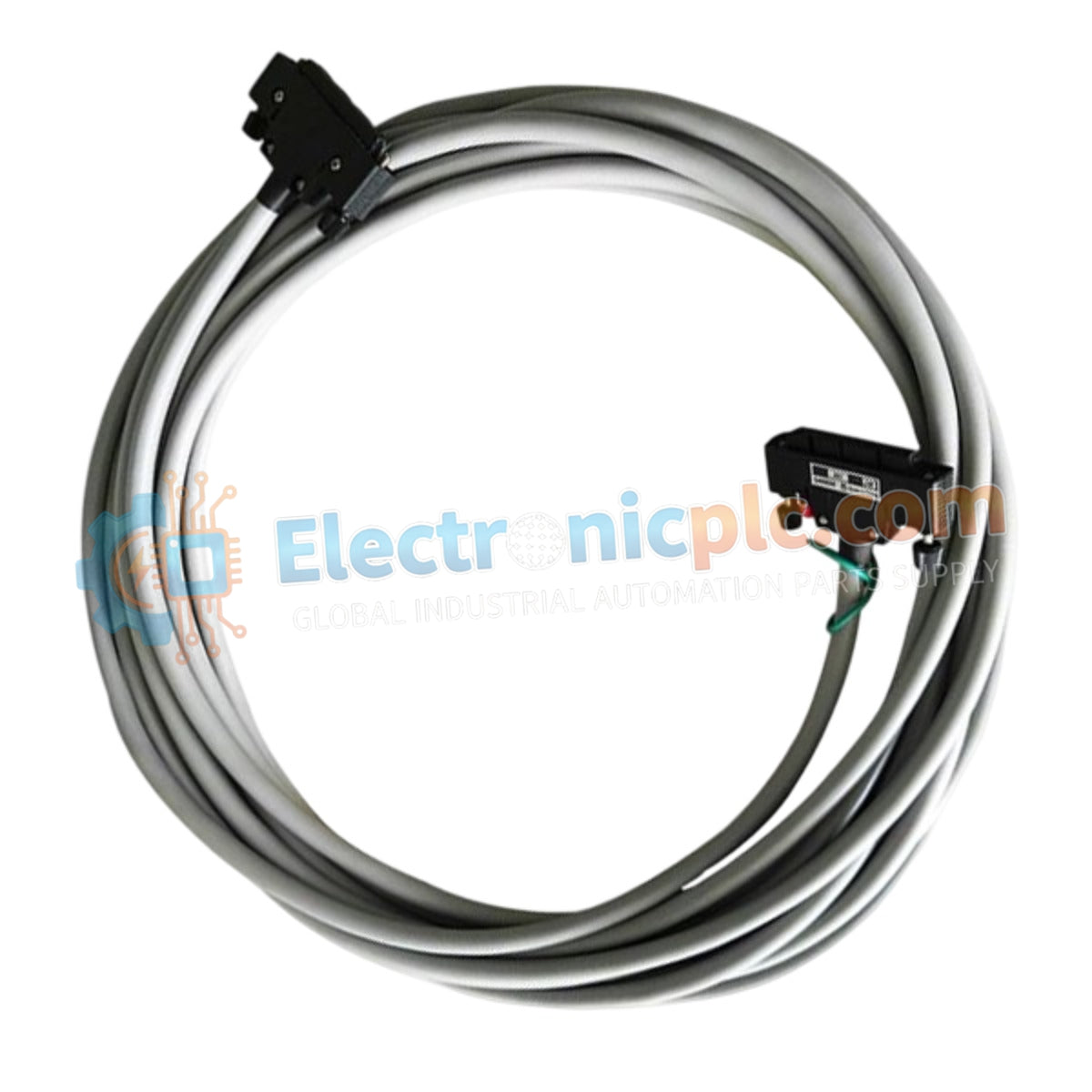

Configured for high-density signal interconnection in CENTUM and related DCS platform architectures, the Yokogawa KS1010-25 (KS1010 Signal Cable) provides direct physical execution of data transmission between I/O modules and field terminal boards. This cable assembly utilizes a 50-pin to 50-pin interface with Style A mechanical keying to ensure reliable electrical continuity and correct orientation during field installation.

Suffix Breakdown & Model Matrix

Hardware Specifications

DCS Instrumentation and Signal Integrity

The KS1010-25 is engineered to facilitate stable signal transmission across extended distances within industrial cabinets and marshalling racks. The 50-pin connector assembly is designed to mate with KCN1 panel-mount sockets, providing a robust interface for analog and digital I/O signal distribution. By adhering to Style A mechanical keying standards, the cable prevents improper alignment, which is critical for maintaining ground reference and preventing signal cross-talk between high-density loops in CENTUM control systems.

Frequently Asked Questions

Q: Can the KS1010-25 cable be field-terminated or shortened if the full 25-meter length is not required?

A: Field modification of this cable is not recommended, as it will compromise the integrity of the factory-molded 50-pin connectors and the shielding effectiveness of the internal conductors.

Q: Is this cable suitable for use in environments with extreme electromagnetic interference?

A: The cable provides baseline shielding for DCS signal integrity, but it should be routed through dedicated metallic conduits or wireways if used in close proximity to high-voltage power cables.

Field Installation Guidelines

• Ensure the Style A keyed housing is properly aligned with the KCN1 socket before applying pressure to engage the 50-pin connector.
• Secure the cable at regular intervals to the cabinet frame to prevent mechanical strain on the connector pins due to the weight of the 25-meter cable run.
• Maintain the specified minimum bend radius during installation to prevent internal conductor fatigue or damage to the cable jacket.
• Avoid routing the cable across sharp metallic edges or through areas with excessive heat that may exceed the +60 deg C operating limit.
• Verify that both ends of the cable are firmly seated and that the locking mechanisms are fully engaged to ensure a stable electrical connection.
