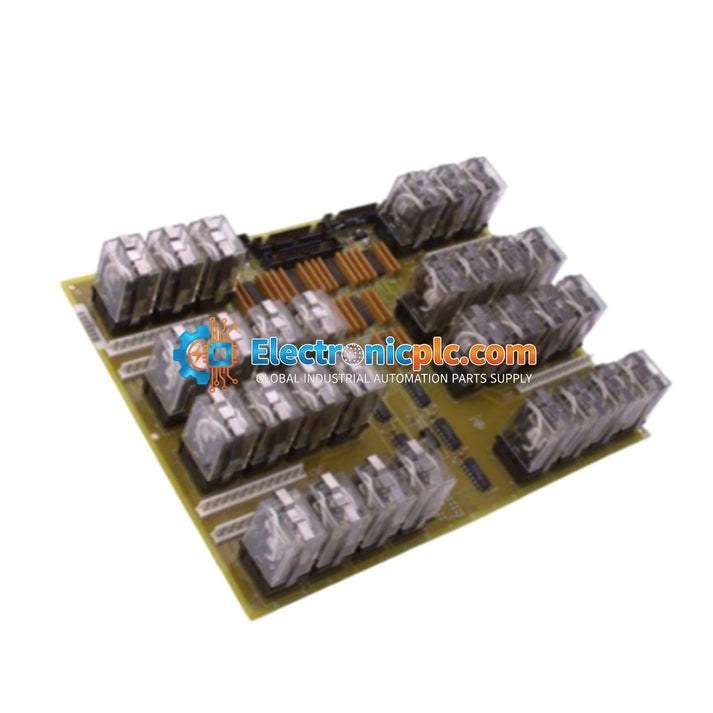

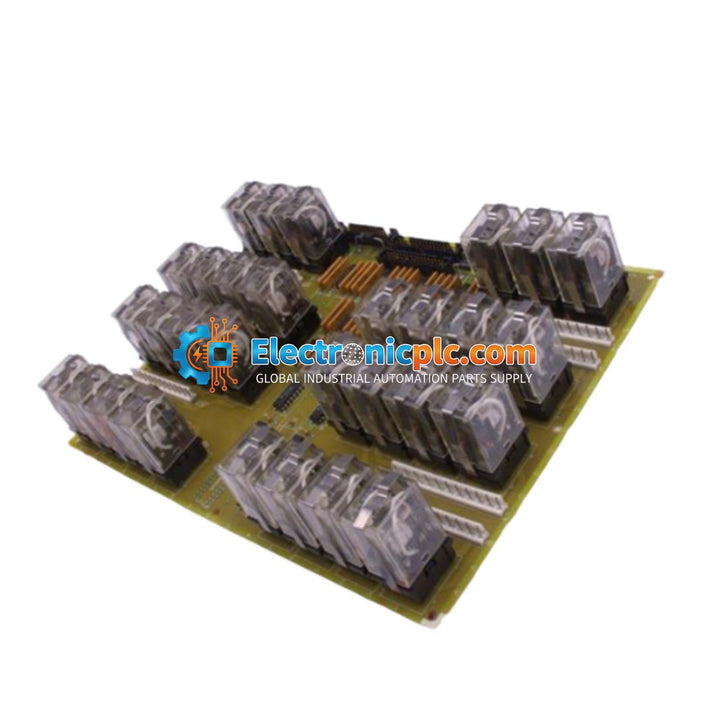

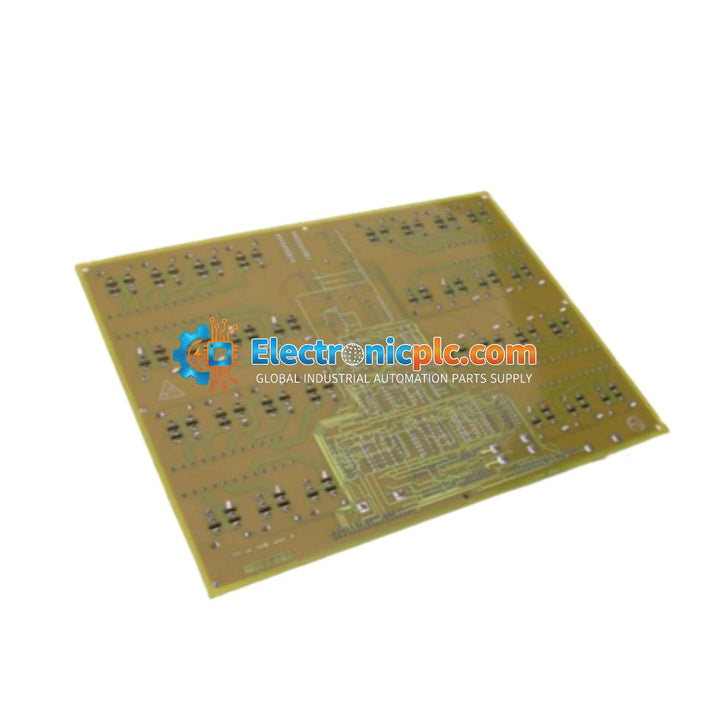

GE Fanuc DS200TCRAG1ABC Mark V Speedtronic Control Module

GE Fanuc DS200TCRAG1ABC Mark V Speedtronic Control Module

Description

The DS200TCRAG1ABC is a high-performance control and protection board engineered for the GE Mark V Speedtronic turbine control system. This module functions as a critical processing unit for safety-sensitive operations...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: DS200TCRAG1ABC
Proveedora: GE FANUC
tipo: Control Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The DS200TCRAG1ABC is a high-performance control and protection board engineered for the GE Mark V Speedtronic turbine control system. This module functions as a critical processing unit for safety-sensitive operations within power generation and heavy industrial drive environments. By utilizing a triple-microprocessor architecture with shared RAM, the module facilitates complex control logic, multitasking, and parallel processing. It is specifically designed to monitor turbine speed and temperature parameters, providing redundant protection layers to safeguard equipment. The module supports advanced diagnostic functions, including electrical overspeed and mechanical piston release testing, to ensure maximum system availability.

Features

  • Triple-Microprocessor Architecture: Delivers deterministic response times required for emergency trip sequences and high-speed control loops.
  • Integrated Diagnostics: Features an onboard 10-LED array for encoded fault status reporting, enabling rapid field troubleshooting.
  • Configurable I/O: Jumper-selectable settings allow for precise servo valve integration, supporting coil currents from 10 to 120 mA and resistance ranges from 22 to 1000 Ohms.
  • Communication Protocols: Supports versatile data exchange via RS485 and Ethernet interfaces, including compatibility with Modbus TCP/IP and SRTP protocols for SCADA integration.

Applications

This module is primarily utilized in power plant turbine control systems, refinery drive control, and critical safety-instrumented systems where high-speed processing and redundant protection are required.

Technical Specifications

Model DS200TCRAG1ABC
Brand GE Fanuc (General Electric)
Series Mark V Speedtronic
Processor Type Triple Microprocessor
Interface Ports RS485, Ethernet
Supported Protocols Modbus TCP/IP, SRTP
Coil Current Range 10 to 120 mA (Jumper Configurable)
Resistance Range 22 to 1000 Ohms
Diagnostics 10-LED fault code display
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • ESD Precautions: Always use a grounded wrist strap and anti-static mat when handling the module to prevent damage to sensitive electronic components.
  • Power Down: Ensure the turbine control system is powered down and locked out before inserting or removing the module from the rack.
  • Jumper Configuration: Verify all jumper settings for coil current and resistance match the specific application requirements before final installation.
  • Environment: Ensure the control cabinet provides adequate ventilation and is free from excessive dust, moisture, or corrosive gases to maintain the specified operating temperature range.
  • Cable Routing: Keep communication cables (Ethernet/RS485) separated from high-voltage power lines to minimize EMI interference.

FAQ

What is the primary function of the DS200TCRAG1ABC?

It acts as a central processing and protection module for the GE Mark V Speedtronic system, managing turbine speed, temperature monitoring, and emergency trip sequences.

How do I troubleshoot faults on this module?

The module includes 10 onboard LEDs that display encoded fault codes. Refer to your specific Mark V system documentation to interpret these codes for rapid field diagnosis.

Is the module configurable for different servo valves?

Yes, the module features jumper-selectable settings that allow you to adjust coil current (10-120 mA) and resistance (22-1000 Ohms) to suit various servo valve requirements.
