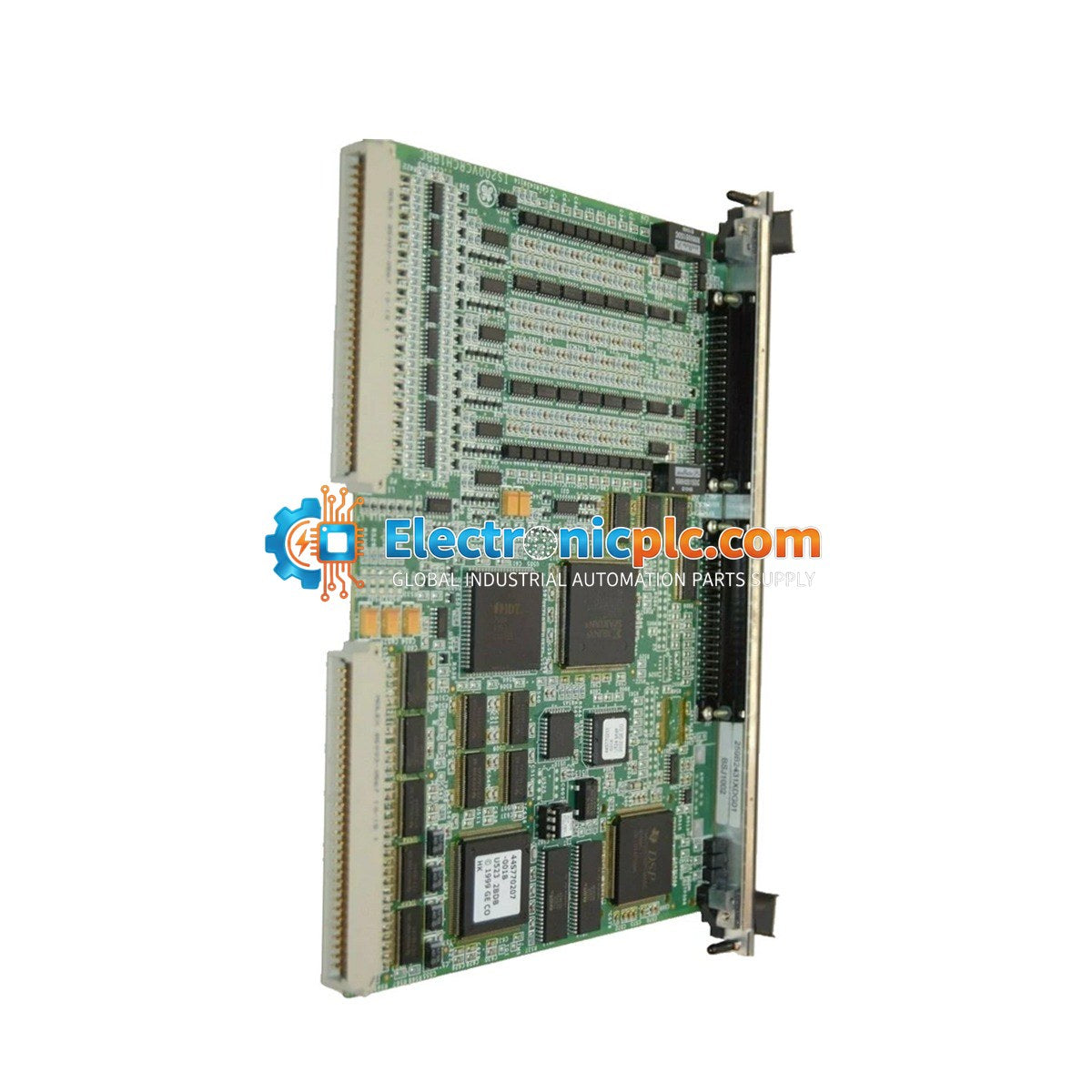

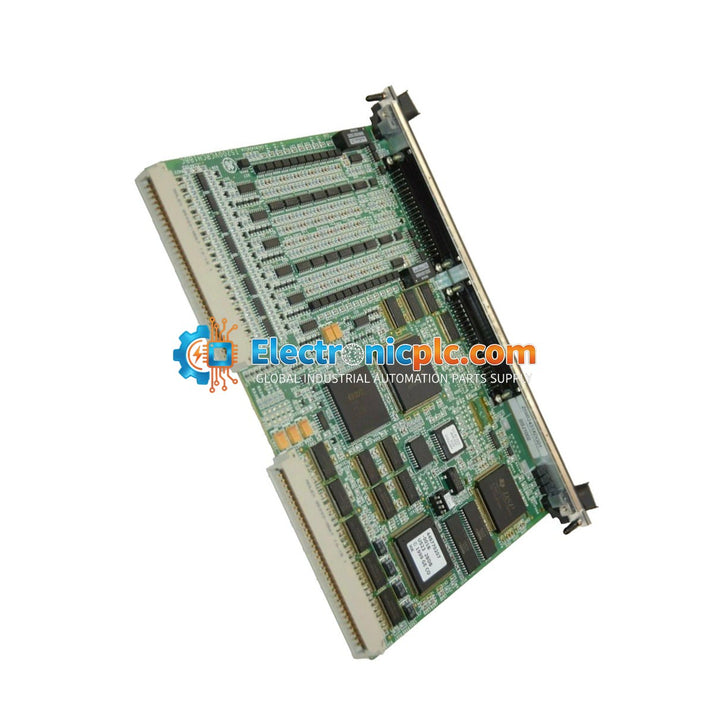

GE Fanuc IS200VCRCH1B Mark VI Discrete Input/Output Board

GE Fanuc IS200VCRCH1B Mark VI Discrete Input/Output Board

Description

The IS200VCRCH1B is a high-density Discrete Input/Output board designed for the General Electric Speedtronic Mark VI turbine management system. Engineered for gas and steam turbine control, this single-slot PCB provides...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: IS200VCRCH1B
Proveedora: GE FANUC
tipo: Discrete I/O Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IS200VCRCH1B is a high-density Discrete Input/Output board designed for the General Electric Speedtronic Mark VI turbine management system. Engineered for gas and steam turbine control, this single-slot PCB provides critical interface capabilities for monitoring and protection parameters. Its architecture delivers functional logic equivalent to the VCCC board but eliminates the need for a daughterboard, optimizing rack space for high-density configurations in power plants and industrial refineries. The module utilizes triple redundant controls to ensure system reliability and safety.

Features

  • High-Density Design: Optimized for VME backplane environments without requiring additional daughterboards.
  • Visual Diagnostics: Integrated front-panel LEDs for status monitoring: Green (RUN), Red (FAIL), and Orange (STATUS).
  • Processing Core: Equipped with high-performance FPGAs, SRAM, and RAM for rapid discrete signal processing.
  • Connectivity: Features front-panel cable connectors (J33 and J44) for relay output interfacing.
  • Robust Power Management: Includes dual onboard power supplies and over thirty transistors to maintain signal integrity.

Applications

This board is primarily utilized in GE Speedtronic Mark VI turbine control systems. It is suitable for power generation facilities, industrial refineries, and critical infrastructure where high-density discrete I/O monitoring and turbine protection are required.

Technical Specifications

Model IS200VCRCH1B
Brand General Electric (GE)
Series Mark VI Speedtronic
Product Type Discrete I/O Board
Operating Temperature 0 to 60 deg C
Backplane Interface 2x Standard VME connectors
Status Indicators 3x LED (Run, Fail, Status)
Cooling Method Natural convection or forced air

Installation Guidelines

  • ESD Protection: Always use a grounded wrist strap when handling the board to prevent electrostatic discharge damage to sensitive components.
  • Power Status: Ensure the VME rack power is disconnected before inserting or removing the module.
  • Seating: Ensure the board is fully seated in the VME slot and that the front-panel screws are tightened to maintain proper grounding and mechanical stability.
  • Cabling: Use only specified cables for J33/J44 front-panel connections to ensure signal integrity. Route signal cables away from high-voltage power lines to minimize EMI.
  • Environment: Maintain the operating environment within the specified 0 to 60 deg C range and ensure adequate airflow within the cabinet.

FAQ

Is the IS200VCRCH1B compatible with existing VCCC board slots?

Yes, the IS200VCRCH1B is designed to provide similar functional logic to the VCCC board but in a more compact, single-slot form factor that does not require a daughterboard.

What do the front panel LEDs indicate?

The LEDs provide immediate status: Green indicates the board is in RUN mode, Red indicates a FAIL state, and Orange indicates general STATUS.
