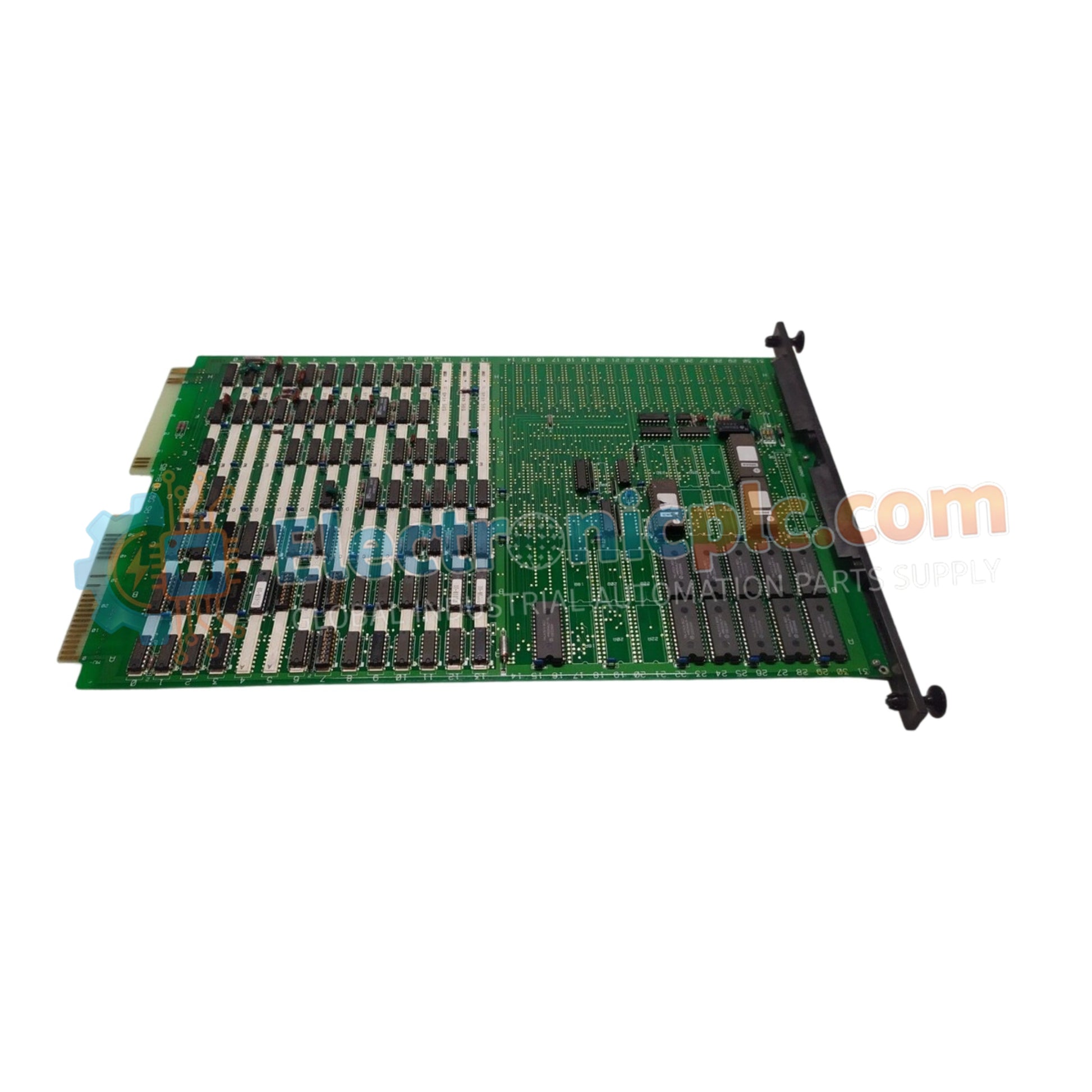

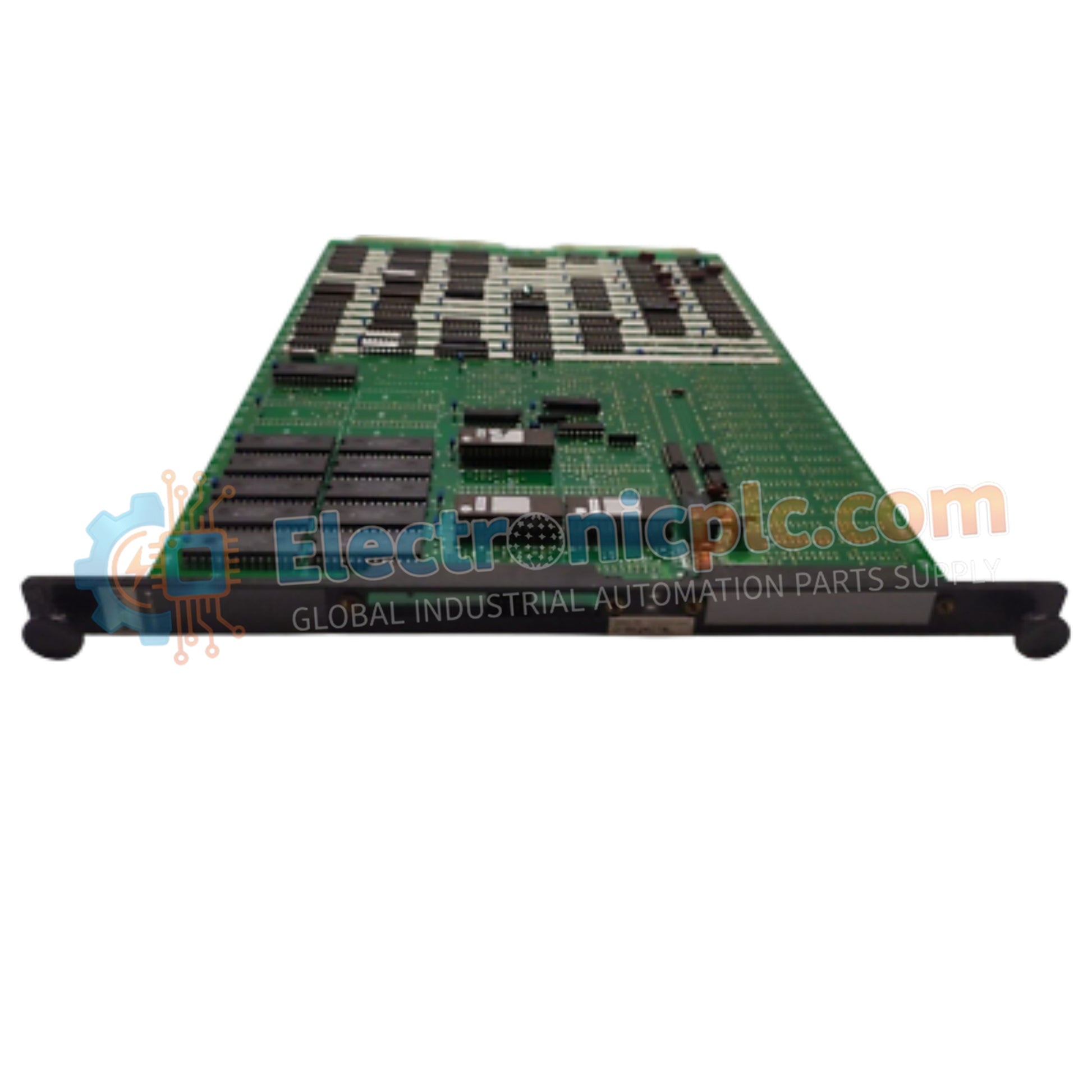

The YOKOGAWA MS05*B, also cataloged as the MS05*B Signal Conditioner Module, operates as a dedicated hardware component for precise signal measurement and conversion within distributed control systems.
Disponibilidad: Bajas existencias: quedan 50
Entrega confiable a nivel mundial
Garantía de devolución de dinero de 30 días
¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.
The YOKOGAWA MS05*B, also cataloged as the MS05*B Signal Conditioner Module, operates as a dedicated hardware component for precise signal measurement and conversion within distributed control systems.
| Parameter | Specification |
|---|---|
| Model | MS05*B |
| Brand | YOKOGAWA |
| Origin | Japan |
| Weight | 0.7kg |
| Dimensions | Standard DIN-rail mount form factor |
| Operating Temp | -25 deg C to +70 deg C |
| Power Consumption | Standard loop power draw |
| Power Supply | 24 VDC |
| Input Signals | DC Voltage, DC Current, Thermocouple, RTD, Potentiometer |
The module incorporates robust channel-to-channel optical and galvanic isolation circuitry designed to eliminate ground loops and electromagnetic interference across multi-variable process measurement loops. Signal conditioning stages execute high-accuracy conversion on raw sensor inputs, maintaining an accuracy of plus or minus 0.1% of span across DC voltage, DC current, thermocouple, RTD, and potentiometer inputs. Integrated internal circuitry supports standardized DC voltage and current outputs, ensuring deterministic data exchange and stable signal transmission to central control systems.
Q: What power supply voltage is required for the MS05*B signal conditioner?
A: The module operates on a nominal 24 VDC power supply input.
Q: What is the specified measurement accuracy of the device?
A: The hardware delivers a measurement accuracy of plus or minus 0.1% of span across its supported input ranges.
Mount the MS05*B module securely onto standard industrial DIN rails within a protective control enclosure, ensuring adequate clearance for thermal dissipation. Terminate field input and output wiring into terminal blocks using shielded twisted-pair cables, ensuring shield drain wires are grounded to the designated cabinet earth terminal. Verify power supply voltage levels and check terminal connections prior to system energization.
