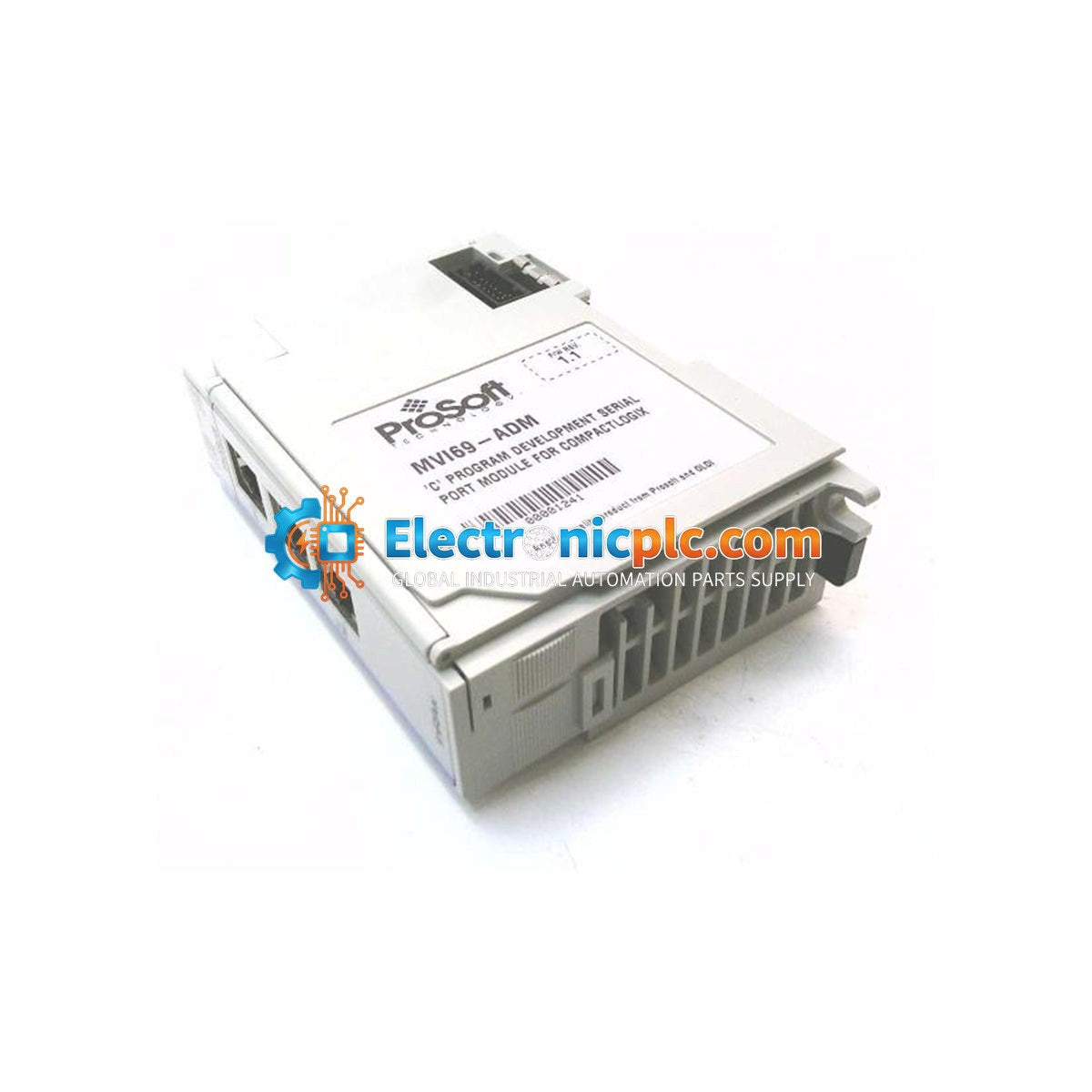

ProSoft MVI69-ADM C Programmable Application Development Module for CompactLogix

ProSoft MVI69-ADM C Programmable Application Development Module for CompactLogix

Description

The MVI69-ADM is a C-programmable Application Development Module designed for the Rockwell Automation CompactLogix platform. This single-slot solution enables engineers to develop and execute custom communication algorithms or specialized data...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: MVI69-ADM
Proveedora: Prosoft
tipo: Communication Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The MVI69-ADM is a C-programmable Application Development Module designed for the Rockwell Automation CompactLogix platform. This single-slot solution enables engineers to develop and execute custom communication algorithms or specialized data processing routines directly on the 1769 backplane. It serves as a critical interface for legacy or proprietary protocols in industrial sectors such as oil refining, mining, and chemical processing. By offloading complex calculations and non-standard communication tasks from the main PLC CPU, the MVI69-ADM enhances system responsiveness and reliability. This module is essential for integrating specialized field devices, thereby reducing system complexity and minimizing potential downtime in highly customized automation environments.

Features

  • Dedicated processor and memory independent of the CompactLogix controller to prevent impact on the main control loop.
  • Three isolated serial ports supporting RS-232, RS-422, and RS-485 hardware standards.
  • Seamless data transfer between the module's internal database and the processor memory via the 1769 backplane.
  • Supports custom C-code execution for specialized data processing and proprietary protocol development.
  • Standard 1769 module form factor for easy integration into existing CompactLogix racks.

Applications

The MVI69-ADM is typically deployed in industrial automation environments requiring custom protocol integration or specialized data processing. Common applications include interfacing with legacy flow computers, custom barcode scanners, specialized instrumentation, and proprietary serial field devices in oil and gas, chemical processing, and mining industries.

Technical Specifications

Model MVI69-ADM
Brand ProSoft Technology
Module Type C Programmable Application Development Module
Backplane Compatibility Rockwell Automation CompactLogix (1769)
Slot Width Single Slot
Serial Ports 3 Isolated Ports (CFG, PRT1, PRT2)
Communication Standards RS-232, RS-422, RS-485
Backplane Current Load 800 mA at 5 VDC
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95 percent (Non-condensing)

Installation Guidelines

  • Ensure the CompactLogix rack power is disconnected before installing or removing the module.
  • Slide the module into the designated 1769 slot until the backplane connector is fully seated and secure the module using the integrated locking mechanism.
  • Use shielded communication cables for all serial connections to minimize interference in electrically noisy environments.
  • Ensure proper grounding of the 1769 chassis to a common earth ground to maintain signal integrity.
  • Verify that the module's current draw does not exceed the power supply capacity of the CompactLogix rack.

FAQ

What is the primary purpose of the MVI69-ADM?

The MVI69-ADM allows users to write and run custom C-code programs to handle non-standard communication protocols or complex data calculations that are not natively supported by the standard CompactLogix PLC instruction set.

Is this module compatible with all CompactLogix controllers?

The MVI69-ADM is designed for the 1769 CompactLogix platform. Please verify your specific controller chassis and power supply capacity before installation.

What is the successor to this module?

For modern system upgrades, the MVI69E-LDM series is the functional successor to the MVI69-ADM.
