Description

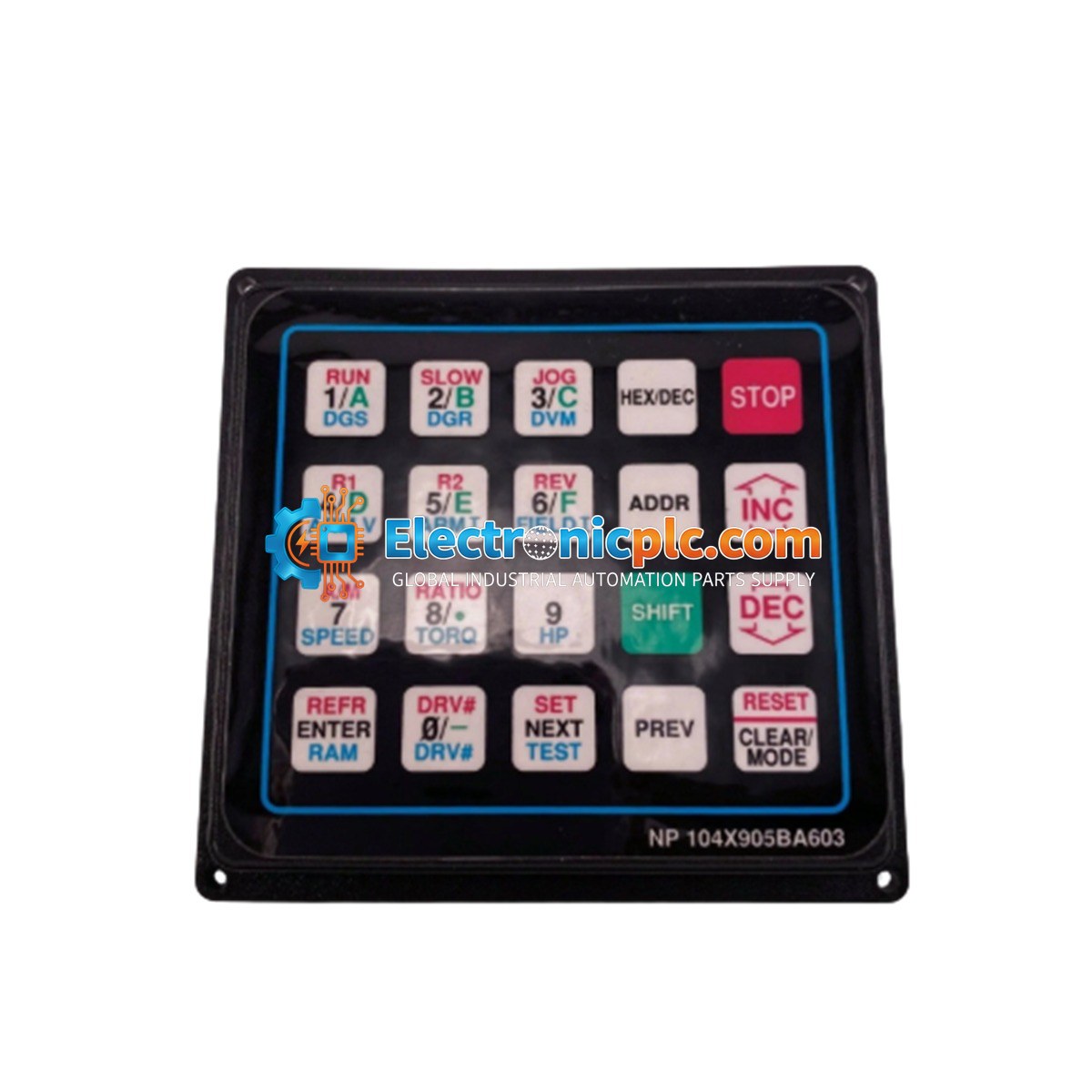

The NP104X905BA603 is a critical Operator Interface (HMI) component designed for the GE Mark V Turbine Control System. This module serves as the primary command hub, enabling operators to execute start/stop sequences, manage load distribution, and monitor real-time turbine performance. Engineered for demanding industrial and utility power generation environments, it bridges the gap between human operators and Mark V control panels, centralizing alarm logging and unit monitoring to improve diagnostic efficiency and operational safety.

Features

• Stage Link Architecture: Utilizes the ARCNET LAN protocol over coaxial cabling for deterministic data exchange between the HMI and control panels.
• Flexible Connectivity: Supports integration with fiber optic cables and signal repeaters, facilitating reliable communication across long distances or between separate facility buildings.
• Advanced Visualization: Processes dynamic data packets from the host controller and renders them through the OptiSCREEN Editor into customizable graphical formats.
• Operational Security: Includes password-protected access levels to safeguard critical turbine logic, protection settings, and logging parameters from unauthorized modifications.
• Versatile Input Support: Compatible with various human-machine input devices, including keyboards, trackballs, mice, and touch-screen interfaces.

Applications

This module is specifically designed for use within the GE Mark V Turbine Control System architecture. It is commonly deployed in power plants, gas turbine facilities, and industrial cogeneration sites where centralized monitoring and control of rotating machinery are required.

Technical Specifications

Installation Guidelines

• ESD Protection: Always utilize an anti-static wrist strap and grounded work surface when handling the module to prevent damage to sensitive internal circuitry.
• Power Management: Ensure all power to the control rack is disconnected before inserting or removing the module.
• Cable Routing: Maintain separation between communication cables (ARCNET/Coaxial) and high-voltage power lines to minimize electromagnetic interference (EMI).
• Environmental Control: Verify that the installation environment remains within the specified temperature range (0 to 60 deg C) and is free from excessive dust or corrosive agents.
• Grounding: Ensure the module chassis is properly bonded to the system ground to maintain signal integrity and operator safety.

FAQ

What is the primary function of the NP104X905BA603?

This module acts as the HMI interface for the GE Mark V system, allowing operators to visualize turbine data, manage control sequences, and monitor system alarms.

Is this module compatible with fiber optic connections?

Yes, the module supports the use of fiber optic cables and signal repeaters, which is ideal for installations where the control room and turbine panels are located in different areas of the plant.
