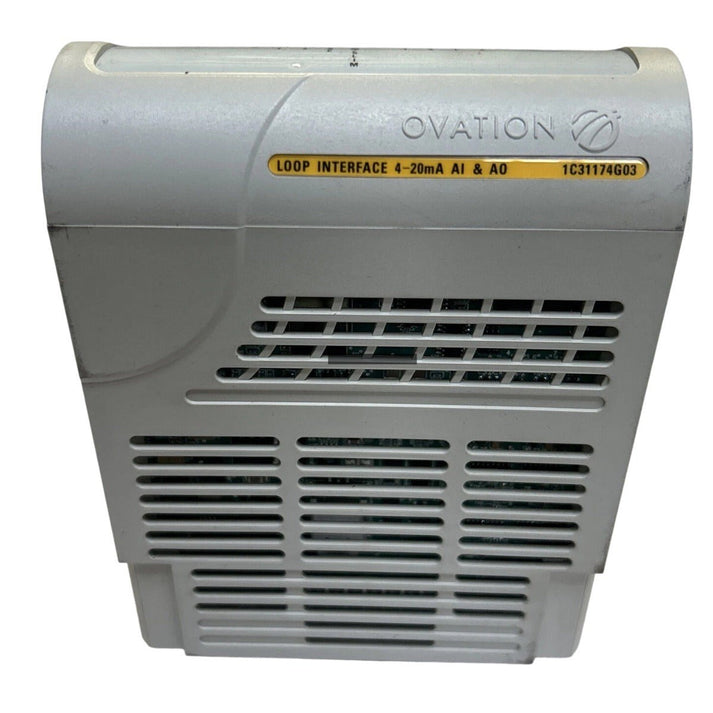

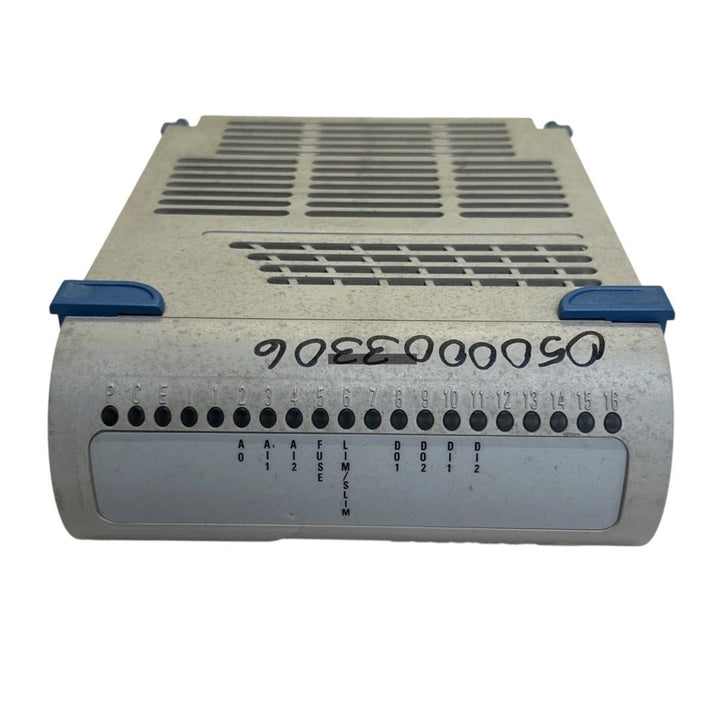

Emerson Ovation 1C31174G03 Loop Interface Module

Emerson Ovation 1C31174G03 Loop Interface Module

Description

The Emerson Ovation 1C31174G03 is a specialized loop interface module designed for integration within the Ovation distributed control system (DCS). This module serves as a critical bridge between field instrumentation...

25 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 1C31174G03
Proveedora: Ovation
tipo: Loop Interface Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Emerson Ovation 1C31174G03 is a specialized loop interface module designed for integration within the Ovation distributed control system (DCS). This module serves as a critical bridge between field instrumentation and the primary control network, providing high-fidelity signal conditioning and reliable data acquisition. It is engineered to maintain control loop stability in demanding industrial environments, such as power generation and large-scale manufacturing, by minimizing signal drift and protecting against common electrical disturbances.

Features

  • Facilitates precise analog loop signal conditioning for field device connectivity.
  • Provides galvanic isolation between field-side instrumentation and the system backplane to enhance signal integrity.
  • Robust hardware design optimized for high-density I/O configurations.
  • Integrated circuit protection to mitigate the effects of voltage transients and electromagnetic interference (EMI).
  • Supports real-time diagnostic data transmission for improved loop regulation and supervisory control.

Applications

This module is primarily deployed in Emerson Ovation control systems to manage analog loop signals. Typical applications include process control in power plants, water treatment facilities, and heavy industrial automation where consistent signal processing and high availability are required.

Technical Specifications

Model Number 1C31174G03
Brand Emerson Ovation
Signal Type Analog Loop Interface
Isolation Galvanic field-to-bus
Operating Temperature 0 deg C to 60 deg C
Power Consumption 5 W nominal
Mounting Standard Ovation I/O chassis slot

Installation Guidelines

  • Ensure the Ovation I/O chassis is powered down before inserting or removing the 1C31174G03 module to prevent electrical damage.
  • Verify that the module is fully seated in the designated chassis slot to ensure proper backplane connection.
  • Use shielded cabling for field connections to minimize the impact of EMI in high-noise industrial environments.
  • Maintain proper grounding practices for the I/O chassis to ensure the effectiveness of the module's galvanic isolation.
  • Ensure the installation environment remains within the specified temperature range of 0 deg C to 60 deg C to prevent thermal degradation.

FAQ

What is the primary function of the 1C31174G03?
The 1C31174G03 acts as a loop interface module that conditions analog signals from field devices for use within the Emerson Ovation DCS.

Does this module provide isolation?
Yes, it features galvanic isolation between the field-side hardware and the system backplane to protect sensitive control logic.

Is this module compatible with all Ovation systems?
This module is designed for use in standard Ovation I/O chassis. Please verify your specific system revision and hardware compatibility before installation.
