Description

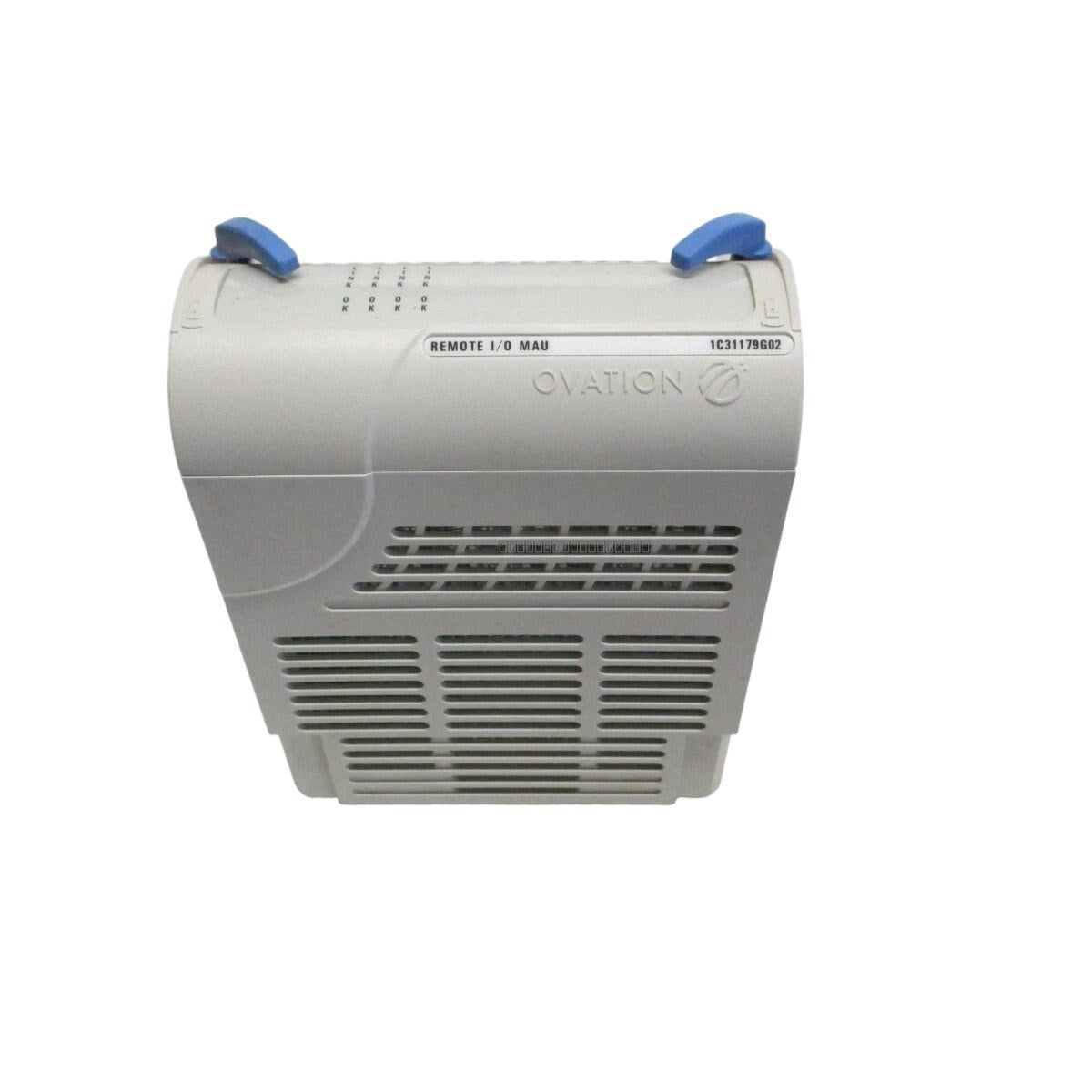

The Ovation 1C31179G02 is a Master Connecting Unit designed for integration within the Ovation control architecture. This module serves as a critical interface for signal distribution between output modules and peripheral field instrumentation, ensuring reliable communication and signal integrity within complex automation loops. It is engineered to support the demanding requirements of power generation and heavy industrial processing facilities.

Features

• Facilitates high-fidelity signal distribution for output-intensive control environments.
• Designed for seamless integration into standard Ovation backplane assemblies.
• Utilizes high-density pin connectors to provide low-resistance, deterministic signal paths.
• Shielded internal architecture to mitigate electromagnetic interference (EMI) in high-voltage industrial zones.
• Supports hot-swappable functionality for rapid field replacement without requiring system-wide shutdowns.
• Optimized for low power consumption to reduce heat generation and extend rack component lifespan.

Applications

This unit is primarily utilized in large-scale industrial control systems, including turbine control, boiler management, and other continuous process automation applications where signal reliability and uptime are critical.

Technical Specifications

Installation Guidelines

• Ensure the Ovation rack is powered down before inserting or removing the module, unless the system specifically supports hot-swapping under the current operational load.
• Handle the module using ESD-safe practices to prevent damage to internal circuitry.
• Verify that the backplane pins are clean and free of debris before seating the module.
• Ensure the module is fully engaged and locked into the backplane to maintain proper electrical contact.
• Route signal cables away from high-voltage power lines to minimize potential EMI coupling.
• Maintain adequate ventilation around the rack assembly to ensure operating temperatures remain within the 0 to 60 degC range.

FAQ

Is this module hot-swappable?
Yes, the 1C31179G02 is designed for hot-swappable capability, allowing for replacement during system operation to minimize downtime.

What is the primary function of this unit?
It acts as a master connecting interface, managing the distribution of control signals from output modules to field instrumentation with high signal integrity.
