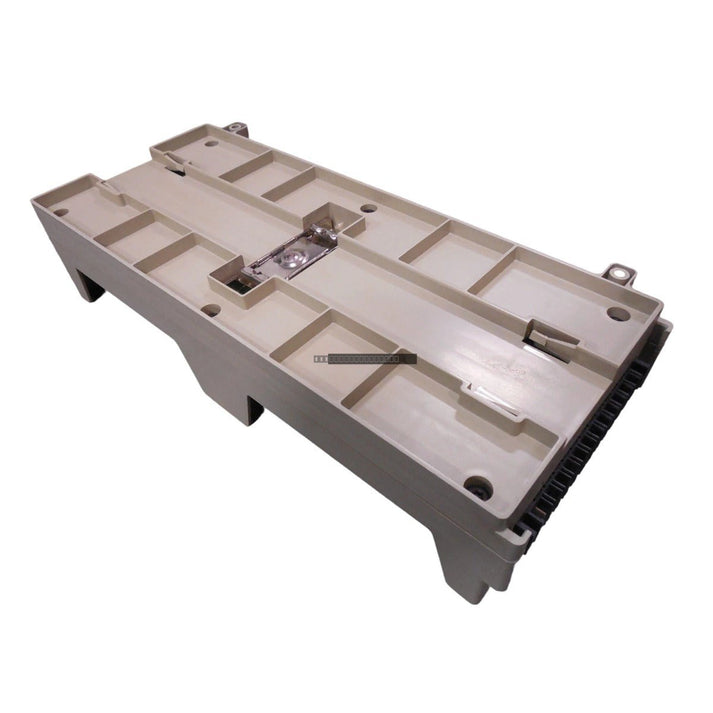

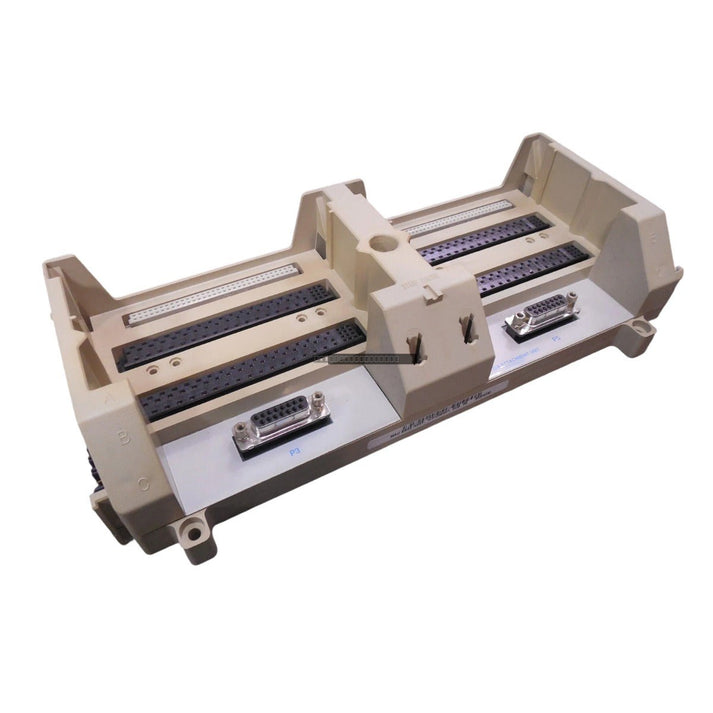

Emerson Ovation 1C31206G01 Base Unit

Emerson Ovation 1C31206G01 Base Unit

Description

The Emerson Ovation 1C31206G01 is a foundational Base Unit designed for the Ovation distributed control system (DCS). This unit functions as the physical and electrical interface for I/O modules, providing...

28 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 1C31206G01
Proveedora: 数据库
tipo: DCS I/O Base Unit
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Emerson Ovation 1C31206G01 is a foundational Base Unit designed for the Ovation distributed control system (DCS). This unit functions as the physical and electrical interface for I/O modules, providing a stable mounting platform and reliable signal distribution for critical industrial automation tasks. It is widely utilized in sectors such as power generation, petrochemical processing, and water management, where high system availability and signal integrity are essential. By streamlining the connection between field wiring and the control rack, this unit supports efficient maintenance and rapid module replacement, helping to minimize operational downtime.

Features

  • Provides a secure mechanical interface for Ovation I/O modules.
  • Optimized for high-density rack configurations to maximize panel space.
  • Supports hot-swapping functionality, allowing for module maintenance without system-wide interruption.
  • Engineered with high-density terminal blocks to ensure robust field wiring connections.
  • Built with flame-retardant, industrial-grade materials for durability in harsh environments.
  • Facilitates deterministic communication within the Ovation architecture.

Applications

This base unit is a core component for Ovation DCS installations, serving as the backbone for I/O signal processing. It is commonly deployed in large-scale industrial plants where continuous, high-availability control is required. Typical applications include turbine control, boiler management systems, and complex process monitoring loops.

Technical Specifications

Model 1C31206G01
Brand Emerson Ovation
Operating Temperature -10 deg C to +60 deg C
Power Consumption 1.5 A at 24 VDC
Mounting Standard Ovation Rack
Interface Backplane multi-pin connector

Installation Guidelines

  • Ensure the Ovation rack is properly grounded before installing the base unit to prevent electrostatic discharge (ESD) damage.
  • Verify that the rack power is disconnected or the system is in a safe maintenance state before inserting or removing modules.
  • Route field wiring through cable ducts to prevent tension on the terminal blocks and ensure proper thermal clearance.
  • Confirm that the multi-pin backplane connector is fully seated to maintain signal continuity across the bus.
  • Maintain adequate ventilation within the cabinet to stay within the specified operating temperature range.

FAQ

Is this base unit compatible with all Ovation I/O modules?
The 1C31206G01 is designed for use within the standard Ovation I/O rack architecture. Please verify your specific module series and rack compatibility in your system documentation before installation.

Does this unit support hot-swapping?
Yes, the 1C31206G01 is designed to support the hot-swap capabilities of the Ovation system, allowing for individual module replacement while the rack remains powered.
