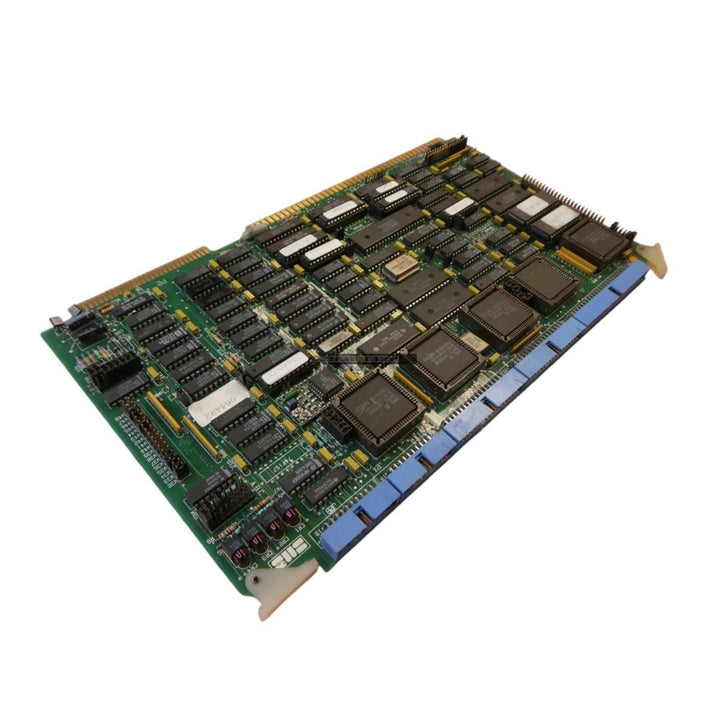

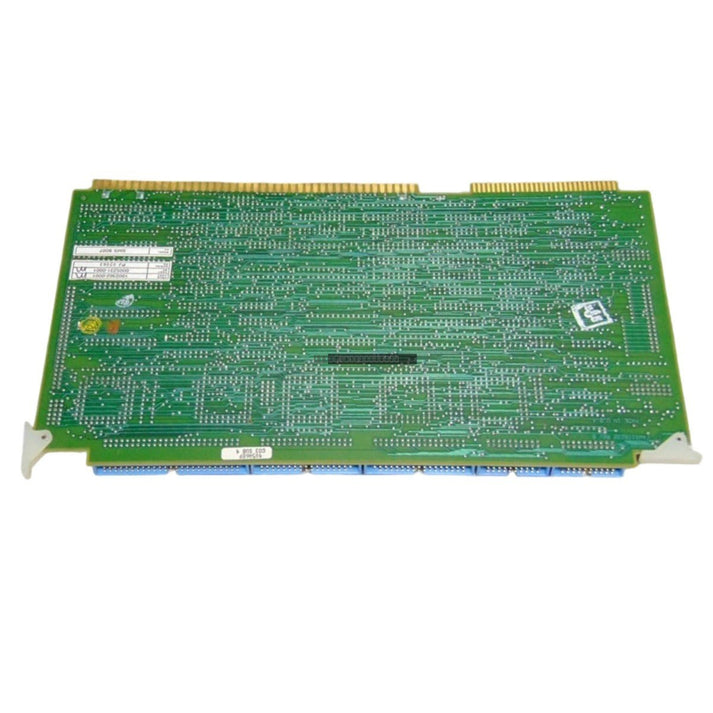

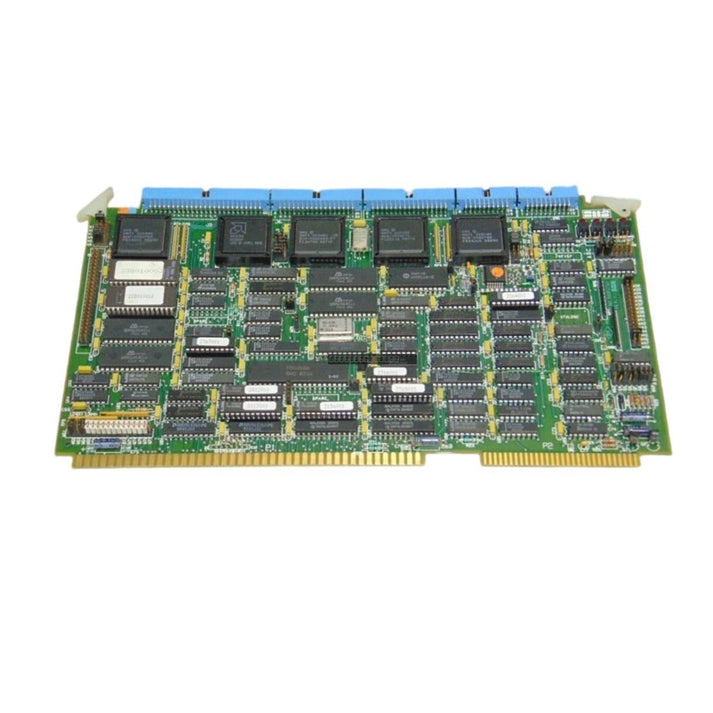

Ovation 405A689G03 Disk Controller Board

Ovation 405A689G03 Disk Controller Board

Description

The 405A689G03 Disk Controller Board is a specialized storage management component designed for the Ovation distributed control system (DCS). This module acts as the critical interface between system processors and...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 405A689G03
Proveedora: Ovation
tipo: Disk Controller Board
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The 405A689G03 Disk Controller Board is a specialized storage management component designed for the Ovation distributed control system (DCS). This module acts as the critical interface between system processors and persistent storage media, ensuring reliable data flow in demanding power generation and industrial manufacturing environments. By facilitating high-speed, error-corrected communication, the controller board maintains system performance and prevents data integrity issues during essential read/write operations.

Features

  • Hardware-level Error Correction Code (ECC) for real-time anomaly detection and rectification.
  • Optimized buffer management to support high-speed, deterministic data throughput.
  • Redundant power filtering stages to protect the storage interface from backplane voltage fluctuations.
  • Modular, low-profile PCB design engineered for mechanical stability and efficient heat dissipation.
  • Continuous duty rating suitable for long-term operation in critical control networks.

Applications

This controller board is intended for use within Ovation DCS racks where reliable, high-speed access to system logs, configuration files, and diagnostic data is required. It is specifically suited for applications requiring high uptime and protection against storage-related latency or data corruption.

Technical Specifications

Model 405A689G03
Brand Ovation
Operating Temperature 0 to 60 degC
Power Consumption 10 W (typical)
Data Integrity Hardware-level ECC
Interface Proprietary Ovation high-speed storage bus
Mounting Modular rack-mount

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the controller board from the rack.
  • Handle the module by the edges to avoid electrostatic discharge (ESD) damage to sensitive components.
  • Verify that the rack slot is free of debris and that the module is fully seated and secured to maintain mechanical stability.
  • Ensure adequate ventilation around the rack to maintain operating temperatures within the 0 to 60 degC range.
  • Check that all backplane connections are clean and properly aligned to prevent intermittent signal loss.

FAQ

What is the primary function of the 405A689G03?

The 405A689G03 is a disk controller board that manages data transfer between the Ovation system processor and its storage media, ensuring data integrity and high-speed access.

Is this board suitable for high-vibration environments?

Yes, the module features a robust, low-profile PCB design specifically engineered for mechanical stability in industrial control environments.
