Description

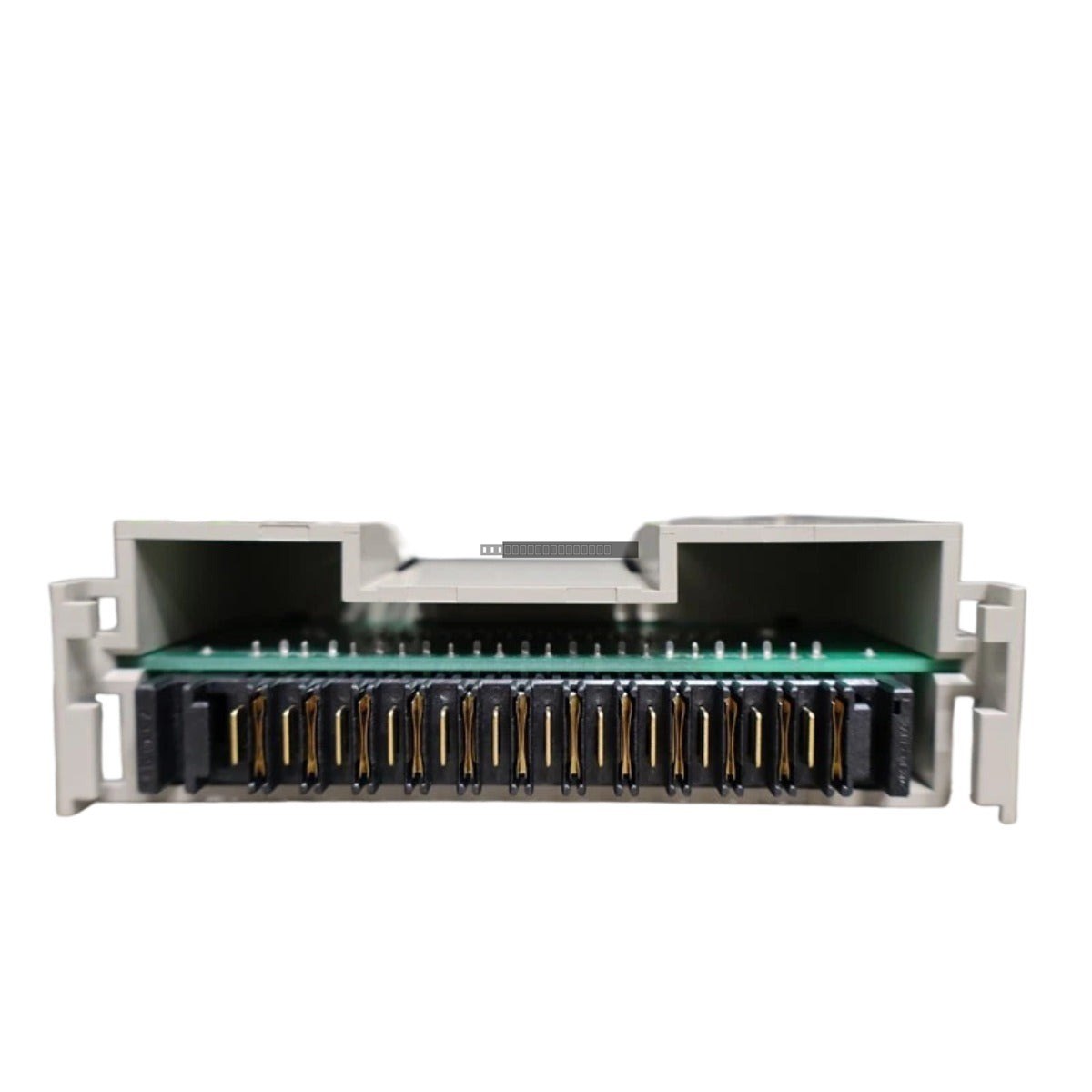

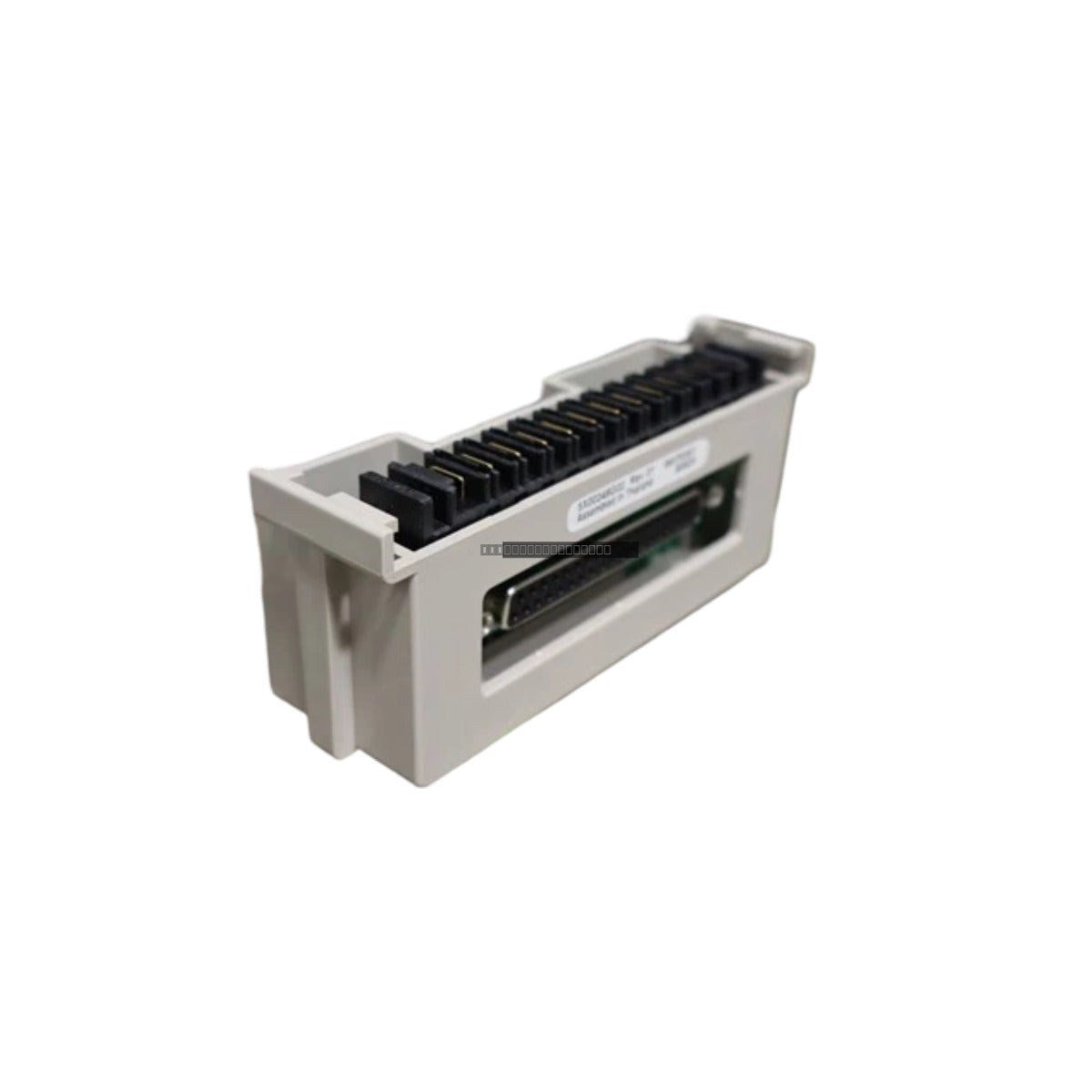

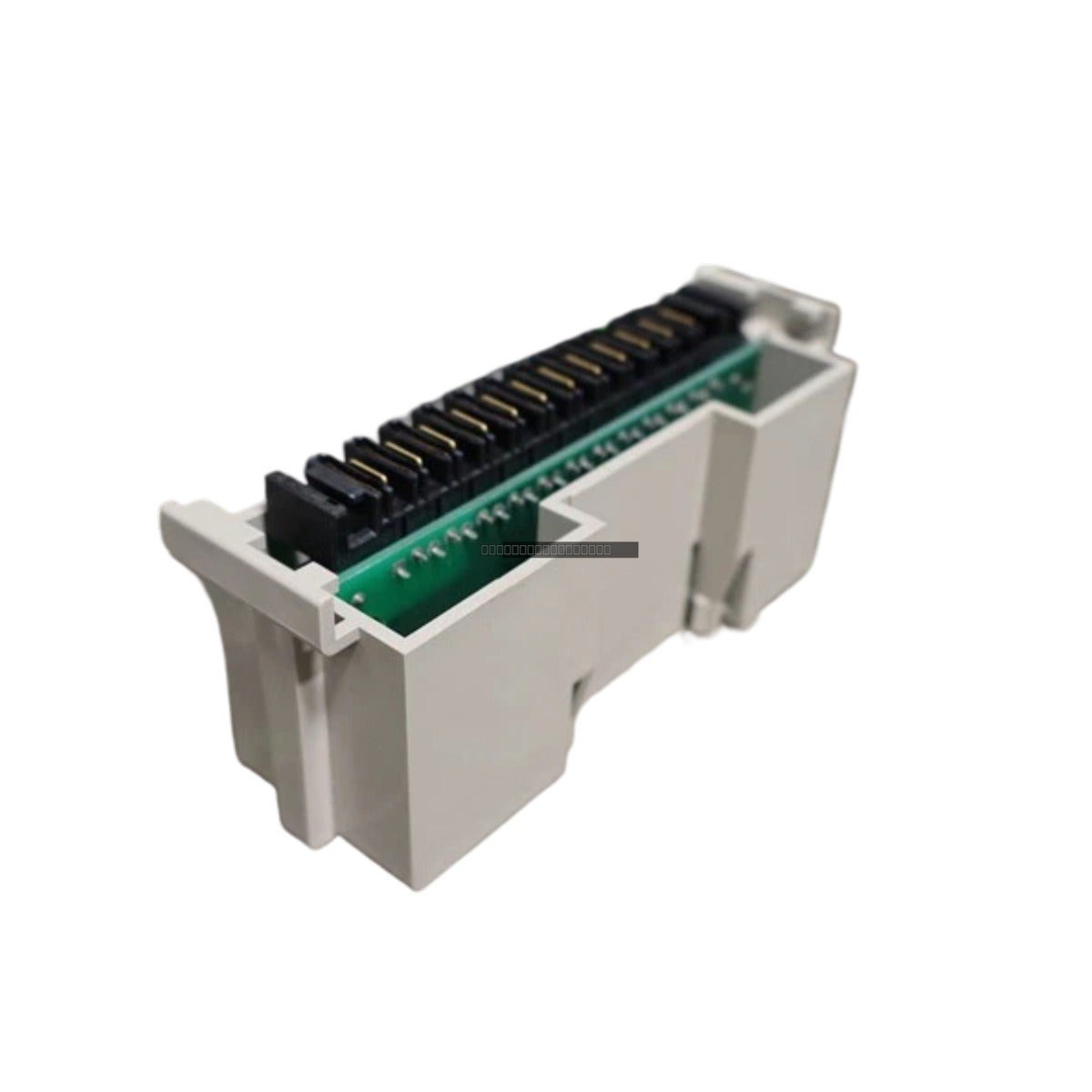

The Emerson Ovation 5X00248G02 is a high-performance analog input module engineered for integration within the Ovation distributed control system (DCS). This module functions as a critical interface for signal acquisition, capturing data from various field instrumentation such as pressure, temperature, and flow transmitters. It is widely utilized in heavy industrial sectors, including power generation and chemical processing, where accurate, stable, and noise-immune signal conversion is required for reliable process control.

Features

• High-resolution 16-bit analog-to-digital conversion for precise measurement accuracy.
• Integrated hardware filtering to suppress electromagnetic interference (EMI) and common-mode noise.
• Advanced opto-isolation providing 1500 VDC protection between field-side signals and internal backplane logic.
• Support for standard industrial signal ranges, including 4-20 mA and 1-5 V inputs.
• Designed for compatibility with redundant Ovation I/O rack configurations to ensure high system availability.
• Deterministic data communication via the Ovation I/O bus for minimal loop latency.

Applications

This analog input module is designed for demanding control environments, including:

• Thermal and combined-cycle power plants.
• Petrochemical and refinery process automation.
• Water and wastewater treatment facilities.
• Large-scale industrial manufacturing and processing lines.

Technical Specifications

Installation Guidelines

• Ensure the Ovation I/O chassis is powered down before inserting or removing the module to prevent electrical damage.
• Verify that all field wiring is properly shielded and grounded to minimize noise pickup in accordance with local site standards.
• Handle the module using ESD-safe procedures to protect sensitive internal components from electrostatic discharge.
• Ensure the module is fully seated in the rack slot and that the locking mechanism is engaged for a secure backplane connection.
• Maintain adequate ventilation within the cabinet to keep ambient temperatures within the specified 0 to 60 degC operating range.

FAQ

Is this module compatible with redundant I/O configurations?
Yes, the 5X00248G02 is designed to support redundant rack setups, allowing for seamless failover in critical control loops.

What is the isolation rating of this input module?
The module provides 1500 VDC isolation between the field-side inputs and the backplane, protecting the control system logic from voltage transients.
