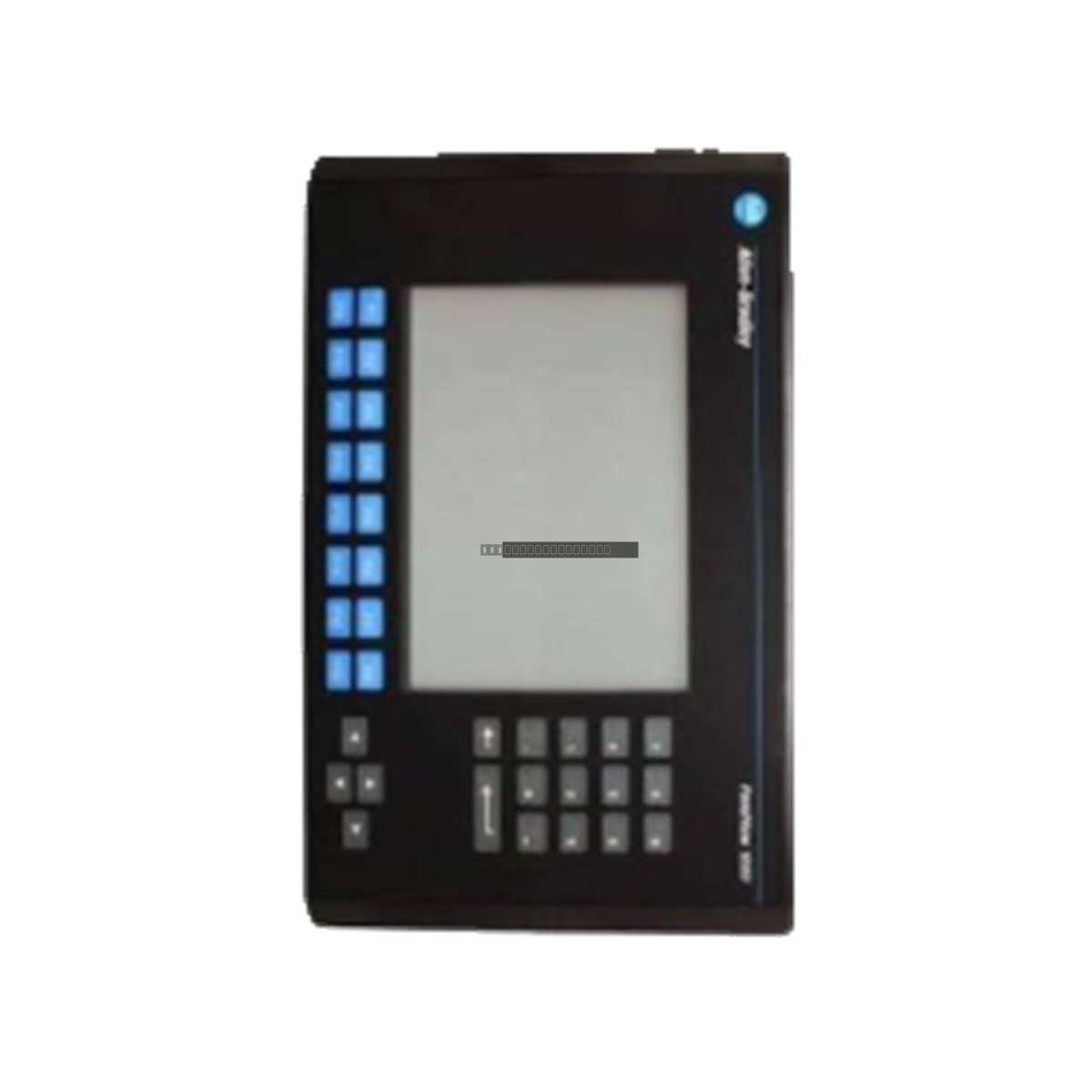

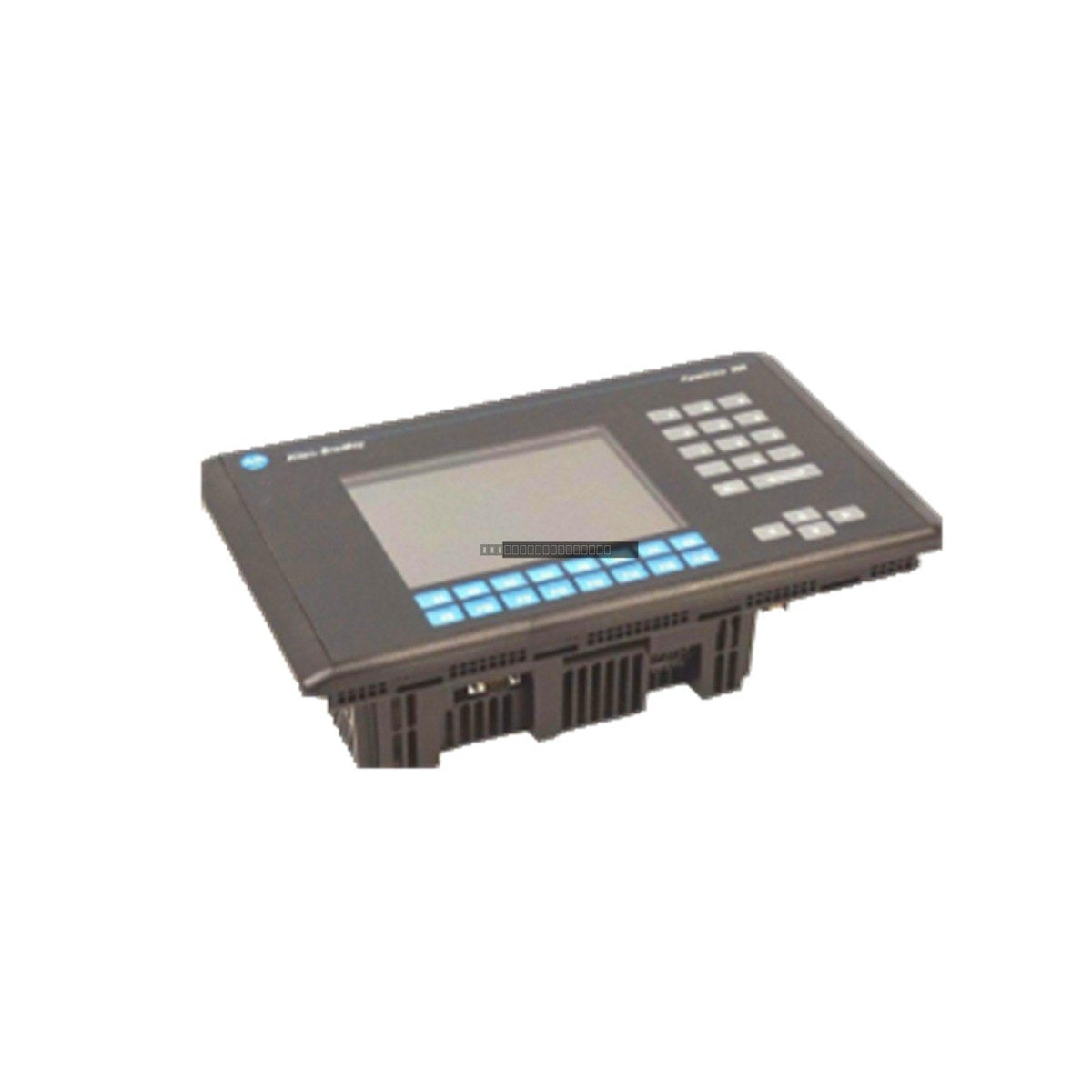

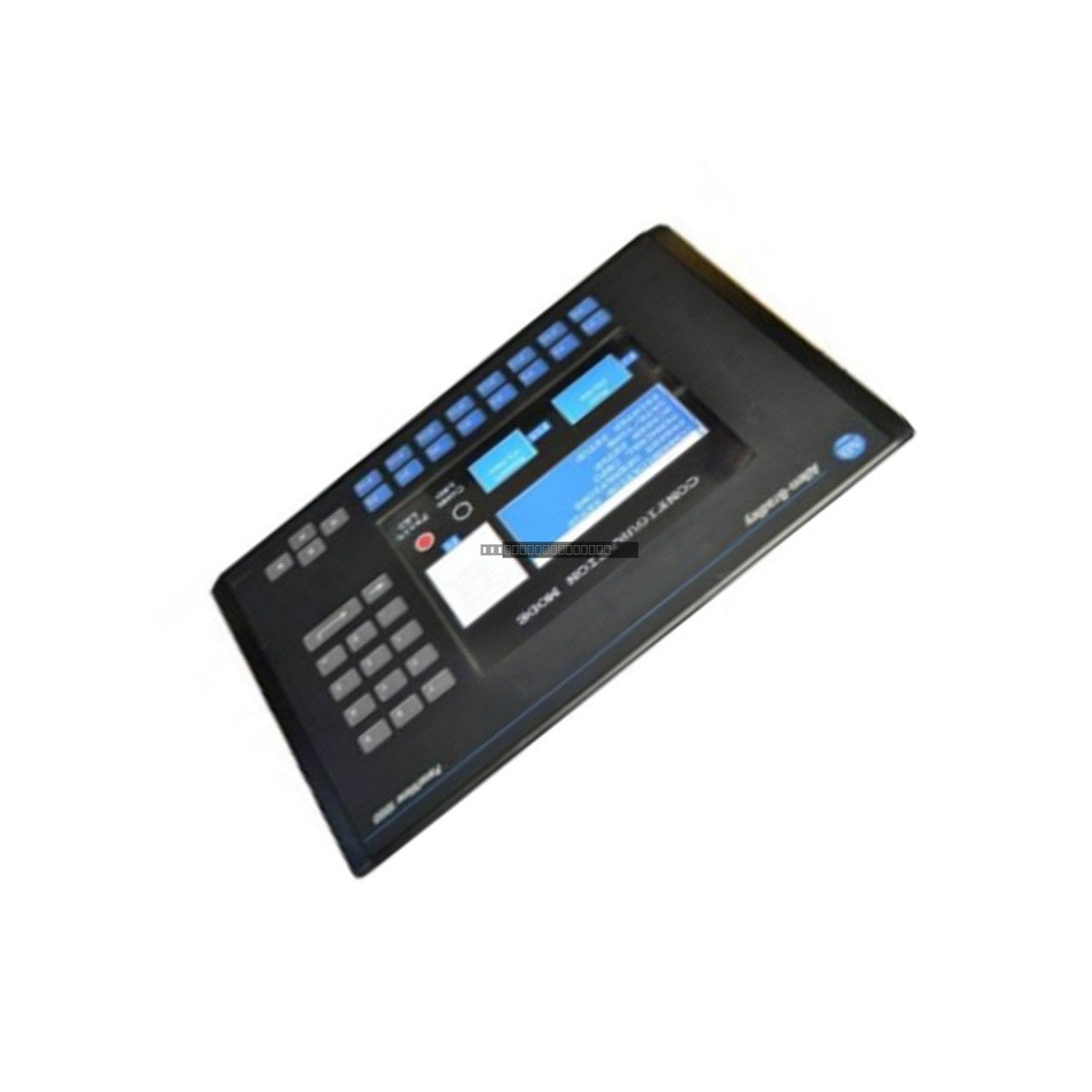

Allen-Bradley 2711-K5A10L3 PanelView 550 Keypad Terminal

Allen-Bradley 2711-K5A10L3 PanelView 550 Keypad Terminal

The Allen-Bradley 2711-K5A10L3 is a robust PanelView 550 operator terminal designed for reliable human-machine interface (HMI) tasks in demanding industrial environments. Featuring a durable stainless steel bezel, this unit is...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: 2711-K5A10L3
Proveedora: Allen-Bradley
tipo: HMI Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 2711-K5A10L3 is a robust PanelView 550 operator terminal designed for reliable human-machine interface (HMI) tasks in demanding industrial environments. Featuring a durable stainless steel bezel, this unit is engineered for longevity in applications requiring resistance to corrosion and physical wear. It provides clear process visualization via a 5.5-inch monochrome blue-mode display and allows for precise operator control through an integrated mechanical keypad.

Features

  • 5.5-inch blue monochrome LCD display with 256 x 128 resolution for clear data visualization.
  • Tactile mechanical keypad including numeric input and dedicated function keys (F1-F10).
  • Corrosion-resistant stainless steel bezel suitable for harsh industrial settings.
  • NEMA 4X and IP66 enclosure ratings for protection against dust and water ingress.
  • Integrated DeviceNet communication port for direct PLC connectivity.
  • Dedicated RS-232 serial port for printer support and diagnostic data logging.

Applications

This terminal is ideal for local machine monitoring and control in sectors such as food and beverage processing, marine automation, and chemical manufacturing. It is frequently utilized for real-time alarm monitoring, machine status reporting, and parameter adjustment in systems integrated with DeviceNet-capable controllers.

Technical Specifications

Model 2711-K5A10L3
Display Size 5.5 inch
Display Type Blue Monochrome LCD
Resolution 256 x 128 pixels
Input Voltage 18-32 VDC (24 VDC nominal)
Power Consumption 10 W maximum
Communication DeviceNet, RS-232 (Printer)
Operating Temperature 0 to 55 deg C
Enclosure Rating NEMA 4X, IP66

Installation Guidelines

  • Ensure the panel cutout is prepared according to the manufacturer's specified dimensions to maintain the integrity of the NEMA 4X seal.
  • Verify that the power supply is within the 18-32 VDC range before connection to prevent damage to the internal circuitry.
  • Maintain proper grounding practices to minimize electromagnetic interference (EMI) and protect against voltage surges.
  • Avoid installing the unit in areas exceeding the 55 deg C operating temperature limit or where excessive vibration exceeds the mechanical specifications of the keypad.
  • Always disconnect power before performing any wiring or maintenance on the communication ports.

FAQ

What is the primary communication protocol for this HMI?
The 2711-K5A10L3 uses a DeviceNet interface for primary communication with PLCs and other plant floor devices.

Can this unit be used outdoors?
No, the NEMA 4X rating for this specific model is intended for indoor use only.

What is the purpose of the RS-232 port?
The RS-232 port is configured as a dedicated printer interface for generating hardcopy diagnostic trails and alarm logs.
