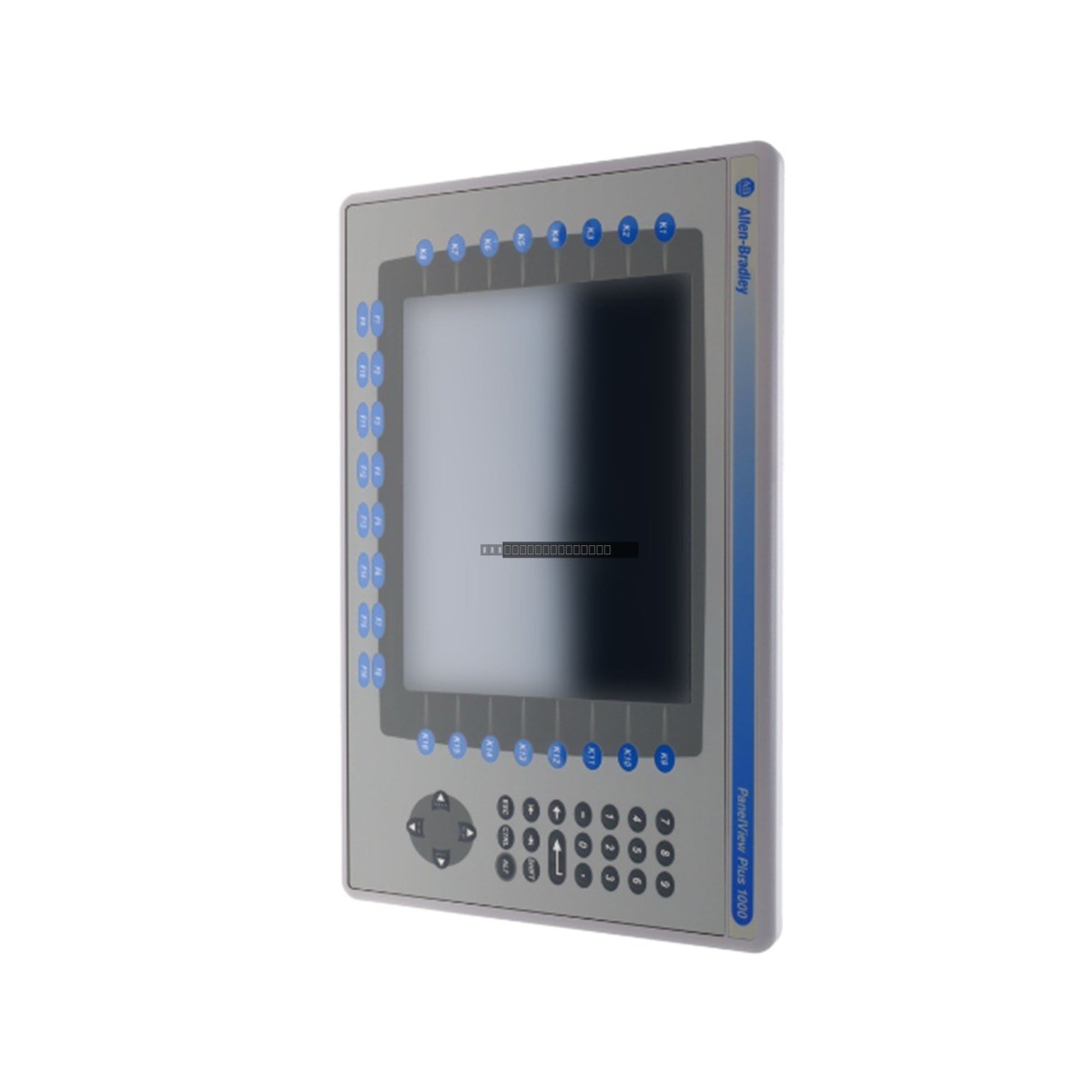

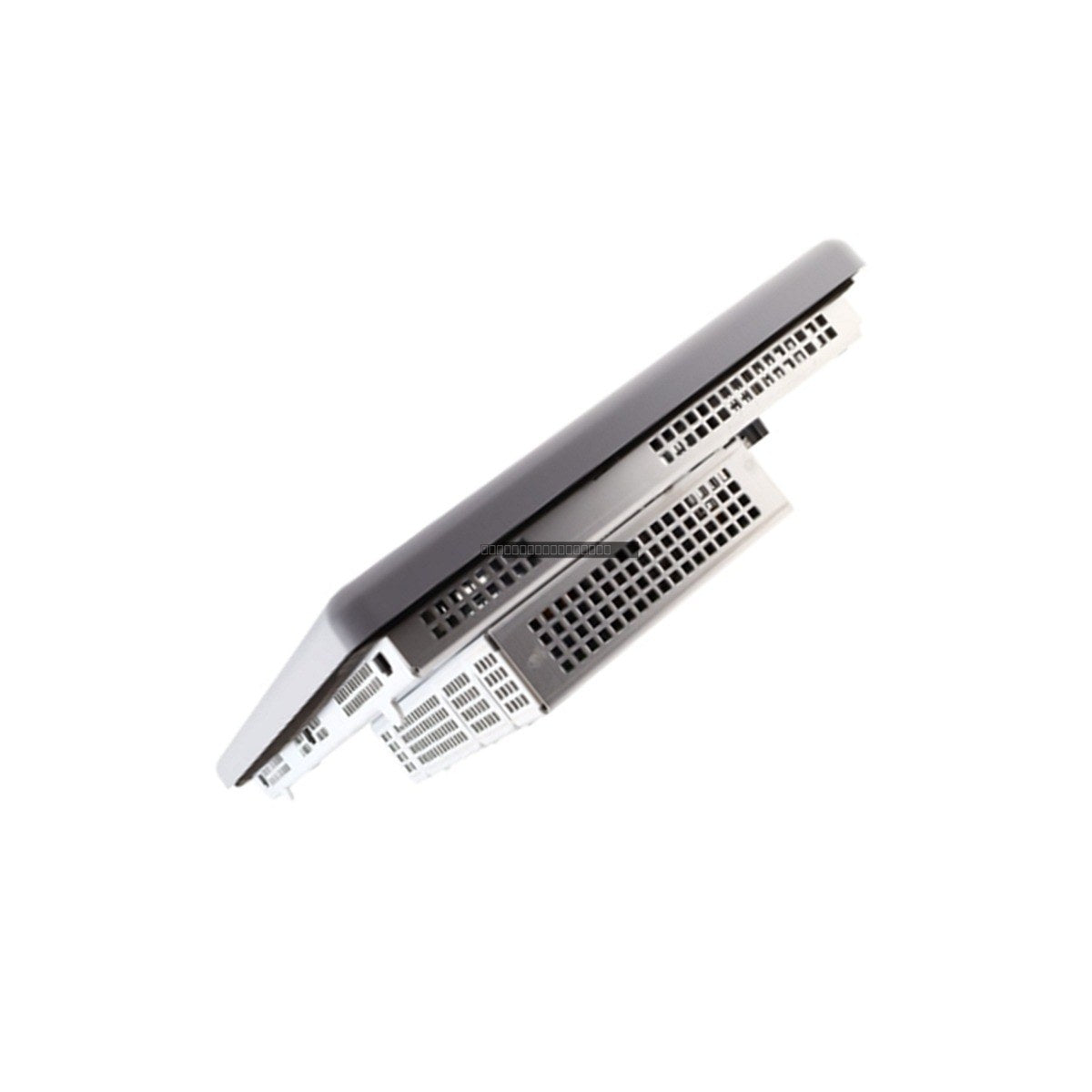

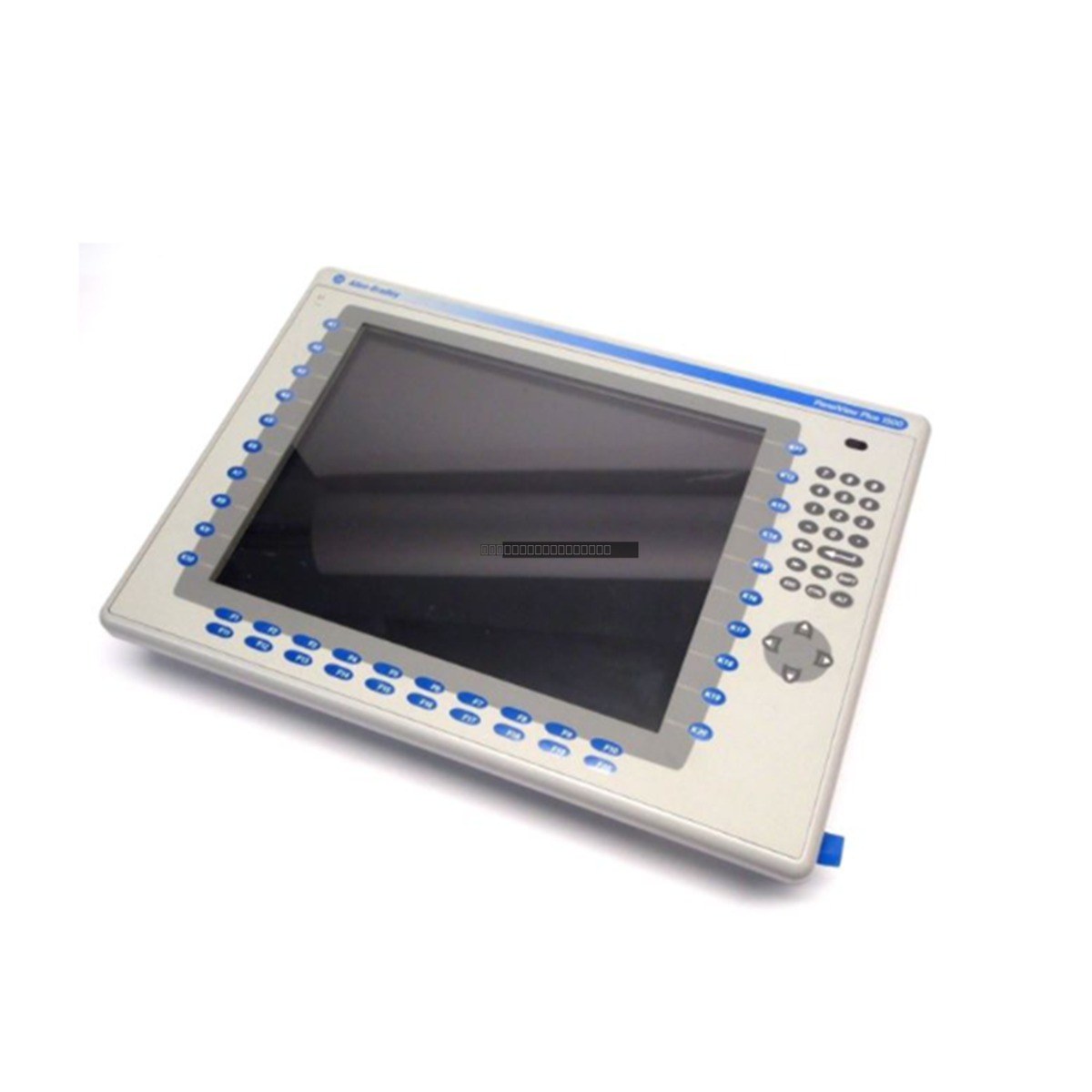

Allen-Bradley 2711P-B12C4D8 PanelView Plus 6 Operator Terminal

Allen-Bradley 2711P-B12C4D8 PanelView Plus 6 Operator Terminal

The 2711P-B12C4D8 is a high-performance Human-Machine Interface (HMI) terminal from the Allen-Bradley PanelView Plus 6 1250 series. It is designed to provide robust visualization and control for industrial automation environments,...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: 2711P-B12C4D8
Proveedora: Allen-Bradley
tipo: Operator Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The 2711P-B12C4D8 is a high-performance Human-Machine Interface (HMI) terminal from the Allen-Bradley PanelView Plus 6 1250 series. It is designed to provide robust visualization and control for industrial automation environments, facilitating seamless data exchange with various controller platforms including ControlLogix, CompactLogix, SLC 500, and PLC-5 systems. This terminal is engineered for demanding applications requiring reliable operator interaction, such as material handling, pharmaceutical processing, and automotive manufacturing.

Features

  • 12.1-inch color active matrix TFT display with 800 x 600 SVGA resolution and 18-bit color depth.
  • Dual input interface featuring an 8-wire analog resistive touchscreen and a comprehensive stainless steel keypad with F1-F20 and K1-K20 function keys.
  • Integrated communication ports including Ethernet (RJ45), RS-232, and two USB host ports for peripheral connectivity.
  • Expandable storage capacity via hot-swappable Secure Digital (SD) card slots for application files and firmware backups.
  • Field-replaceable LED backlight rated for 50,000 hours of service life.

Applications

This operator terminal is suitable for centralized machine control and real-time process monitoring in industrial facilities. It is commonly deployed in systems requiring deterministic communication and high-visibility interfaces to reduce operational downtime and improve plant floor efficiency.

Technical Specifications

Model 2711P-B12C4D8
Display Size 12.1-inch
Resolution 800 x 600 SVGA
Input Voltage 18 to 32 VDC
Power Consumption 70 W max (2.9 A at 24 VDC)
RAM 512 MB
Non-volatile Memory 512 MB (79 MB free)
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C
Backlight Life 50,000 hours

Installation Guidelines

  • Ensure adequate ventilation around the unit to maintain operating temperatures within the specified 0 to 55 deg C range.
  • Mount the terminal in an enclosure rated for the required environmental protection (e.g., NEMA/IP rating).
  • Use shielded communication cables and ensure proper grounding to minimize EMI interference.
  • Power down the system before installing or removing communication modules or SD cards.
  • Verify that the input voltage remains within the 18 to 32 VDC range to prevent damage to internal circuitry.

FAQ

What is the primary function of the 2711P-B12C4D8?

This unit serves as an HMI terminal for monitoring and controlling industrial processes, acting as an interface between the operator and PLC systems like ControlLogix or SLC 500.

Can the memory be expanded?

Yes, the unit supports hot-swappable Secure Digital (SD) cards for expanded storage of applications and firmware.

What type of input does this terminal support?

It supports dual input modes: an 8-wire analog resistive touchscreen and a physical stainless steel keypad with dedicated function and navigation keys.
