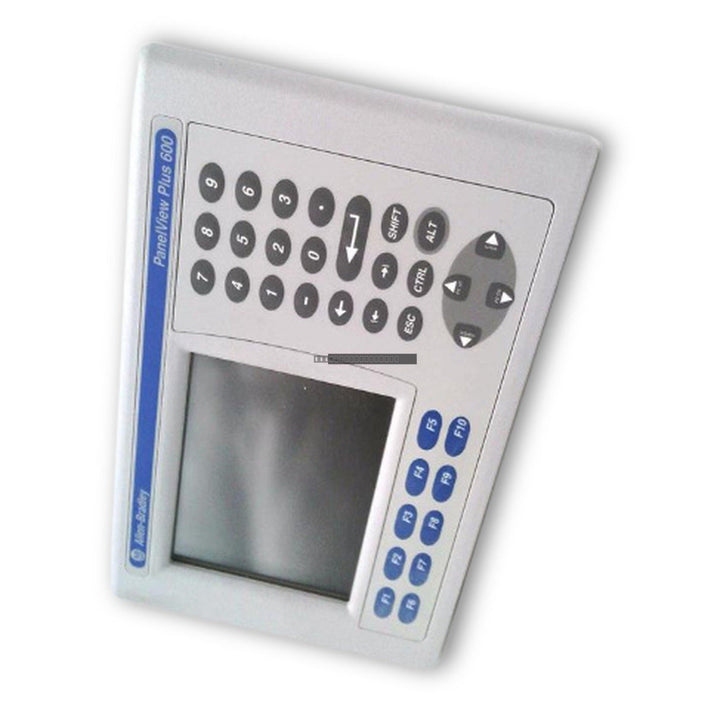

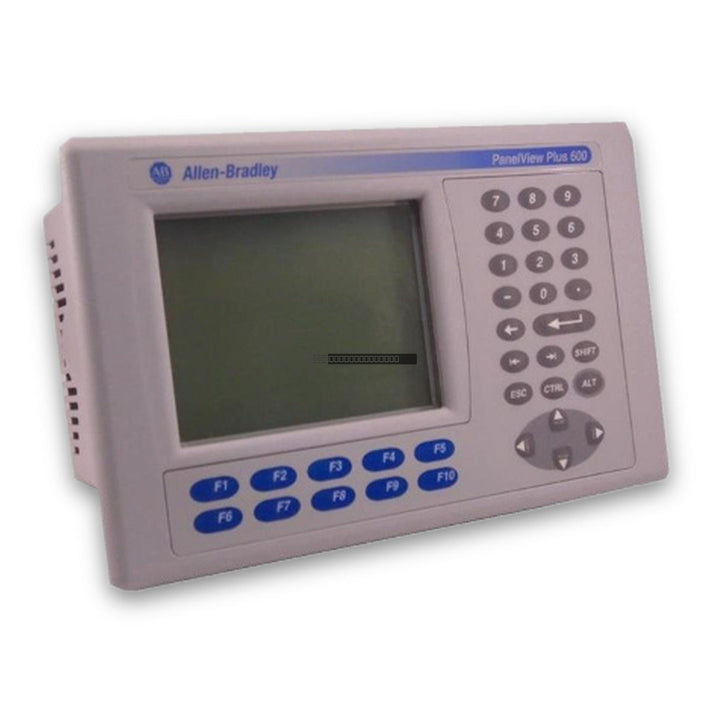

Allen-Bradley 2711P-B6M1D PanelView Plus 600 Operator Interface Terminal

Allen-Bradley 2711P-B6M1D PanelView Plus 600 Operator Interface Terminal

The Allen-Bradley 2711P-B6M1D is a high-performance operator interface terminal from the PanelView Plus 600 series, engineered for demanding industrial environments. This unit provides a reliable human-machine interface (HMI) for monitoring...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: 2711P-B6M1D
Proveedora: Allen-Bradley
tipo: Operator Interface Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Allen-Bradley 2711P-B6M1D is a high-performance operator interface terminal from the PanelView Plus 600 series, engineered for demanding industrial environments. This unit provides a reliable human-machine interface (HMI) for monitoring and controlling automated processes, offering a balance of tactile and touch-based input methods to suit diverse operational requirements.

Features

  • 5.7-inch monochrome passive matrix display with 320 x 240 pixel resolution and 32 levels of grayscale.
  • Dual-input interface featuring a durable stainless-steel domed membrane keypad and an analog resistive touchscreen.
  • Integrated communication ports including RS-232 serial and USB for peripheral connectivity and data transfer.
  • Robust memory configuration with 256 MB RAM and 512 MB of non-volatile storage for application runtime and data logging.
  • Designed for high-reliability operation in manufacturing and process control environments.

Applications

This terminal is suitable for a wide range of industrial applications, including:

  • Water and wastewater treatment facility monitoring.
  • Automated manufacturing and assembly line control.
  • Material handling and packaging system interfaces.
  • General machine-level visualization and diagnostics.

Technical Specifications

Model 2711P-B6M1D
Brand Allen-Bradley
Display Type 5.7-inch Monochrome Passive Matrix
Input Voltage 18-32 VDC
Power Consumption 25 W
Operating Temperature 0 deg C to 55 deg C
Enclosure Rating IP54
Display Brightness 300 cd/m2

Installation Guidelines

  • Ensure the terminal is mounted in a panel or enclosure that meets the IP54 rating requirements to maintain protection against dust and moisture.
  • Verify that the power supply provides a stable 18-32 VDC input; confirm polarity before connecting to the terminal block.
  • Maintain adequate clearance around the unit to ensure proper ventilation and prevent overheating during operation.
  • Use shielded communication cables for RS-232 connections to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Always disconnect power before installing or removing the unit to prevent electrical damage or unexpected system behavior.

FAQ

What is the primary input method for this terminal?

The 2711P-B6M1D features a dual-input design, allowing operators to use either the analog resistive touchscreen or the integrated stainless-steel domed membrane keypad.

What is the required power supply for the 2711P-B6M1D?

This unit operates on a DC power source ranging from 18 to 32 VDC with a maximum power consumption of 25 W.
