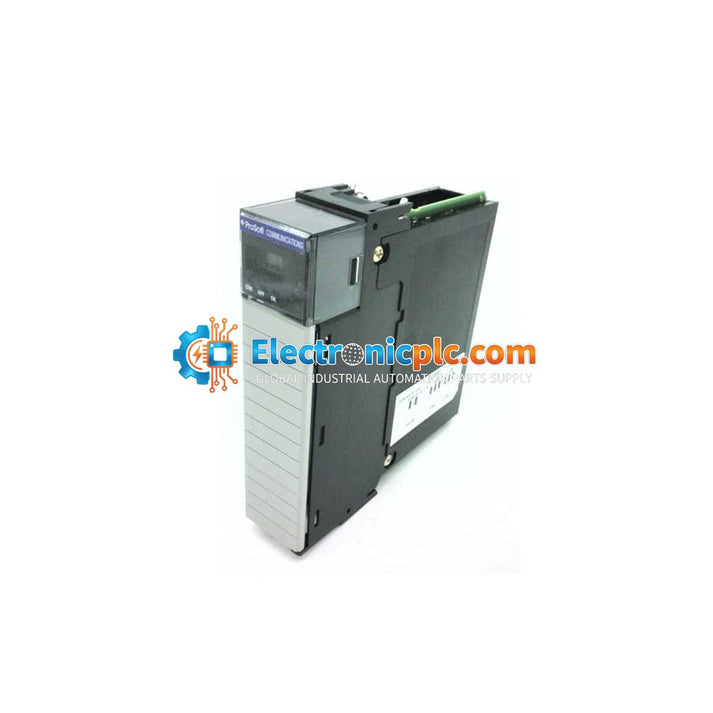

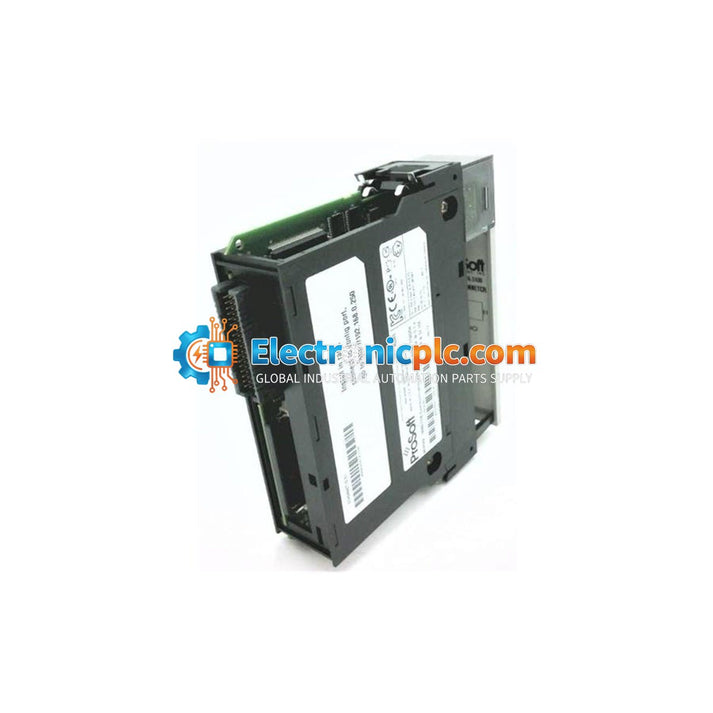

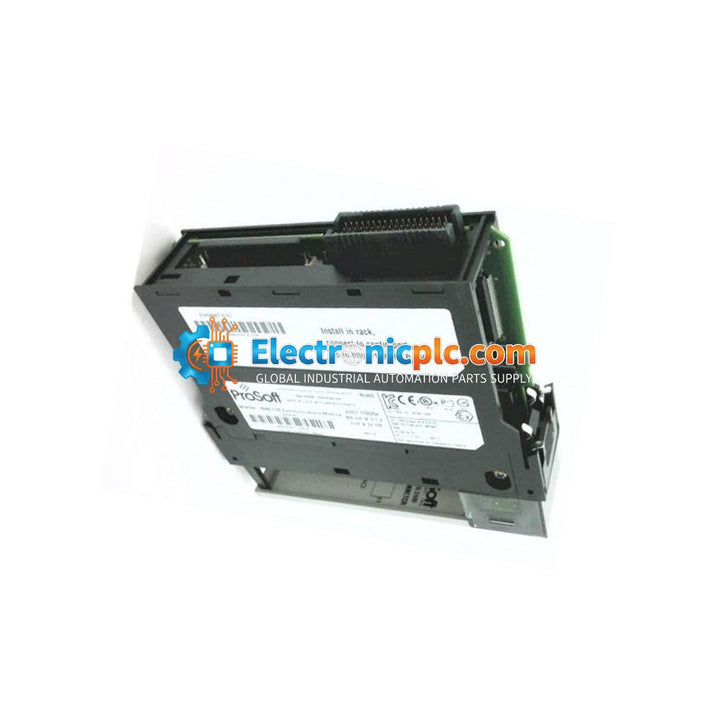

ProSoft MVI56E-MNETCR ControlLogix Modbus TCP/IP Enhanced Communications Module

ProSoft MVI56E-MNETCR ControlLogix Modbus TCP/IP Enhanced Communications Module

Description

The ProSoft MVI56E-MNETCR is a high-performance Modbus TCP/IP Enhanced Communications Module designed for seamless integration with the Rockwell Automation ControlLogix platform. This module enables a ControlLogix processor to interface with...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: MVI56E-MNETCR
Proveedora: Prosoft
tipo: Communication Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The ProSoft MVI56E-MNETCR is a high-performance Modbus TCP/IP Enhanced Communications Module designed for seamless integration with the Rockwell Automation ControlLogix platform. This module enables a ControlLogix processor to interface with up to 30 simultaneous client connections and 20 server connections over an Ethernet network. The 'CR' designation signifies a reduced data block version, specifically optimized for high-speed I/O data exchange. It is a critical component for bridging high-level controllers with field devices such as power meters, variable frequency drives, and remote I/O in power generation, water treatment, and large-scale manufacturing environments.

Features

  • Supports 30 Client and 20 Server connections for robust Modbus TCP/IP communication.
  • Optimized 100-word reduced data block interface to minimize backplane traffic.
  • Integrated web server for remote configuration, module monitoring, and diagnostics.
  • Native support for Studio 5000 Add-On Instructions (AOI) for rapid deployment.
  • 10/100 Mbps RJ45 Ethernet port for high-speed network connectivity.
  • Compatible with standard ControlLogix chassis backplane power.

Applications

This module is widely used in industrial automation for connecting ControlLogix systems to third-party Modbus TCP/IP devices. Common applications include data acquisition from power monitoring equipment, integration of variable frequency drives (VFDs), and interfacing with remote I/O stations in SCADA-managed architectures.

Technical Specifications

Model MVI56E-MNETCR
Module Type Modbus TCP/IP Enhanced Network Interface (Reduced Block)
Backplane Current 800 mA @ 5 VDC; 3 mA @ 24 VDC
Ethernet Port 1 x RJ45 10/100 Base-T
Modbus Connections 30 Client, 20 Server
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5% to 95% (non-condensing)
Configuration Web interface or ProSoft Configuration Builder (PCB)

Installation Guidelines

  • Ensure the ControlLogix chassis is powered down before inserting or removing the module.
  • Seat the module firmly into the designated slot in the ControlLogix rack and secure the top and bottom retaining screws.
  • Use shielded twisted-pair Ethernet cabling to minimize EMI interference in industrial environments.
  • Maintain proper ventilation within the cabinet to ensure the module operates within the 0 to 60 deg C temperature range.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.

FAQ

Does this module require special software for configuration?

The MVI56E-MNETCR can be configured via its integrated web server or using the ProSoft Configuration Builder (PCB) software. It also supports Add-On Instructions (AOI) within the Studio 5000 environment for simplified integration.

What does the CR suffix indicate?

The 'CR' suffix indicates that the module uses a reduced data block interface (100 words), which is specifically optimized for high-speed I/O data exchange and reduced backplane loading.
