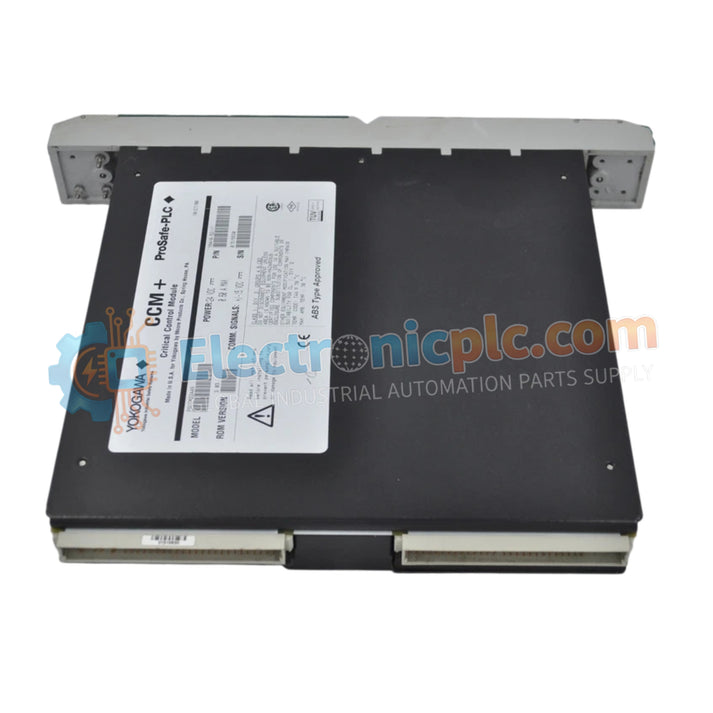

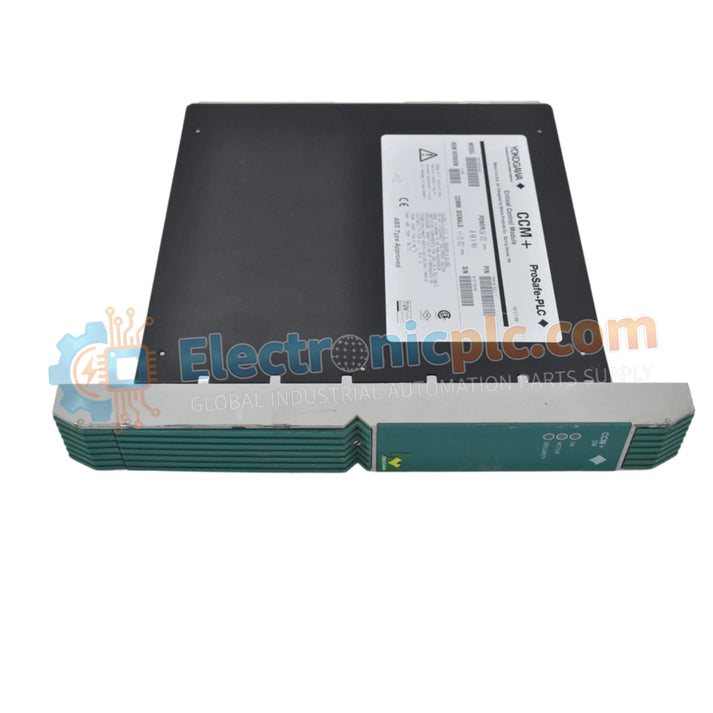

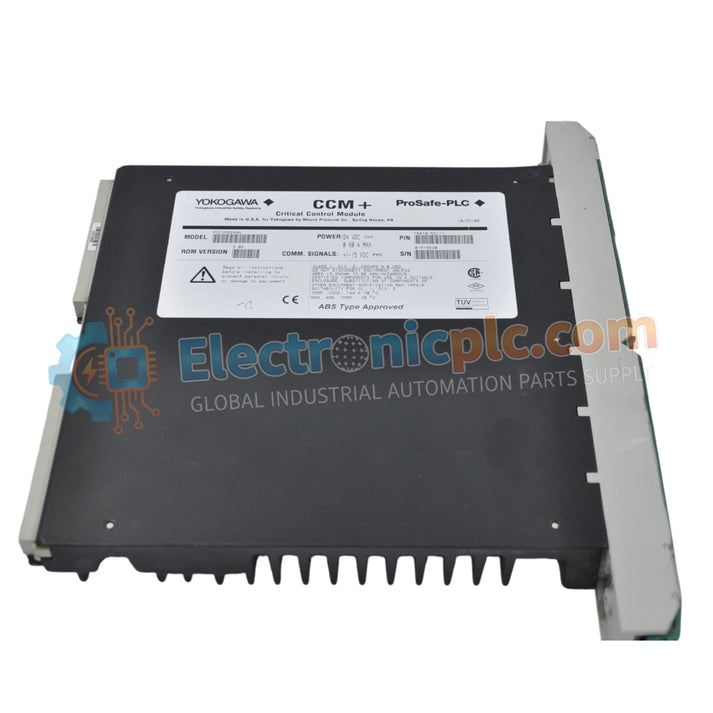

The Yokogawa PSCCM24AAN 16418-541/1 serves as the primary PSCCM24AAN 16418-541/1 Control Module utilized to execute core processing and loop regulation across distributed control system platforms.
| Parameter | Specification |
|---|---|
| Model | PSCCM24AAN 16418-541/1 |
| Brand | Yokogawa |
| Origin | Japan |
| Weight | 0.3 kg |
| Dimensions | 10.2 cm x 3.8 cm x 10.2 cm |
| Operating Temp | Standard Industrial Rating |
| Power Consumption | Standard Backplane Power |
| Module Type | Control Module |
The hardware configuration maintains strict electrical isolation across internal bus communication and signal processing circuits to eliminate ground loop interference and suppress transient voltage spikes. Integration with standard 4-20 mA HART loop protocol parameters and process instrumentation interfaces ensures transparent transmission of control signals directly to field execution units without data degradation.
Q: What are the restrictions regarding hot-swapping the PSCCM24AAN 16418-541/1 control module? A: Hot-swapping is restricted unless explicit node redundancy configuration or controller-level maintenance mode activation is engaged to prevent backplane communication errors.
Q: How is system power managed across the module's internal circuitry? A: Power is supplied directly through the secure backplane connection, requiring stable bus voltage distribution from the rack power supply unit.
Mount the unit directly into the designated slot of the node base, ensuring physical alignment with backplane connectors before engaging securing screws. Route signal and communication cabling away from high-voltage power conduits and use shielded twisted-pair cables to preserve operational integrity. Terminate cable shielding and ground drain wires securely to the designated cabinet earth grounding bar.
