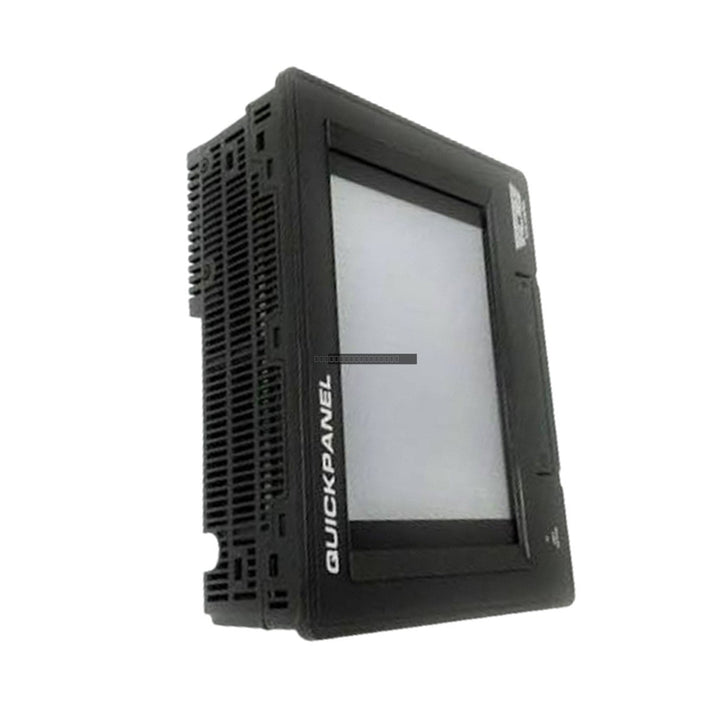

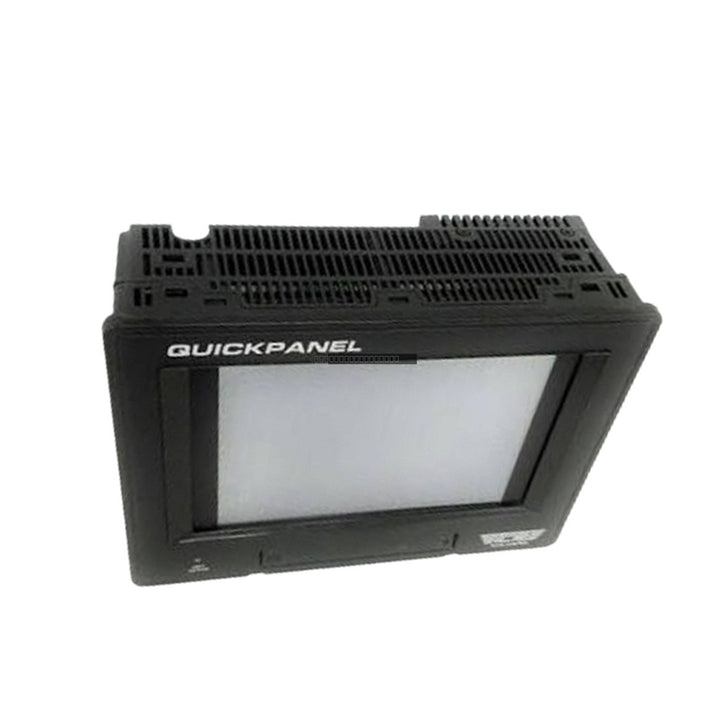

GE Fanuc QPICTAE0000 QuickPanel Operator Interface Module

GE Fanuc QPICTAE0000 QuickPanel Operator Interface Module

Description

The QPICTAE0000 is a 10.4-inch industrial human-machine interface (HMI) from the GE Fanuc Total Control QuickPanel series. Designed for demanding environments such as power generation, mining, and oil refinery applications,...
