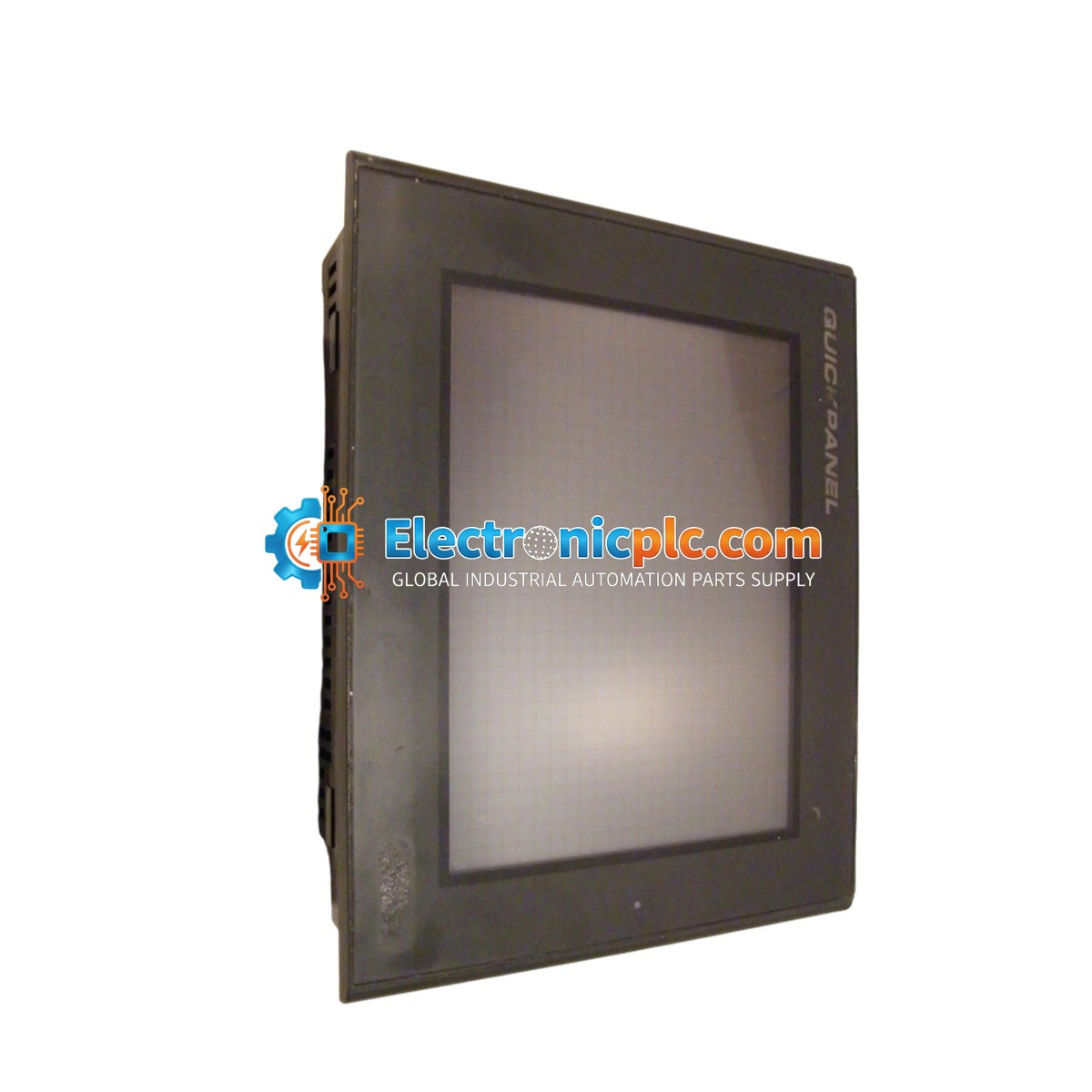

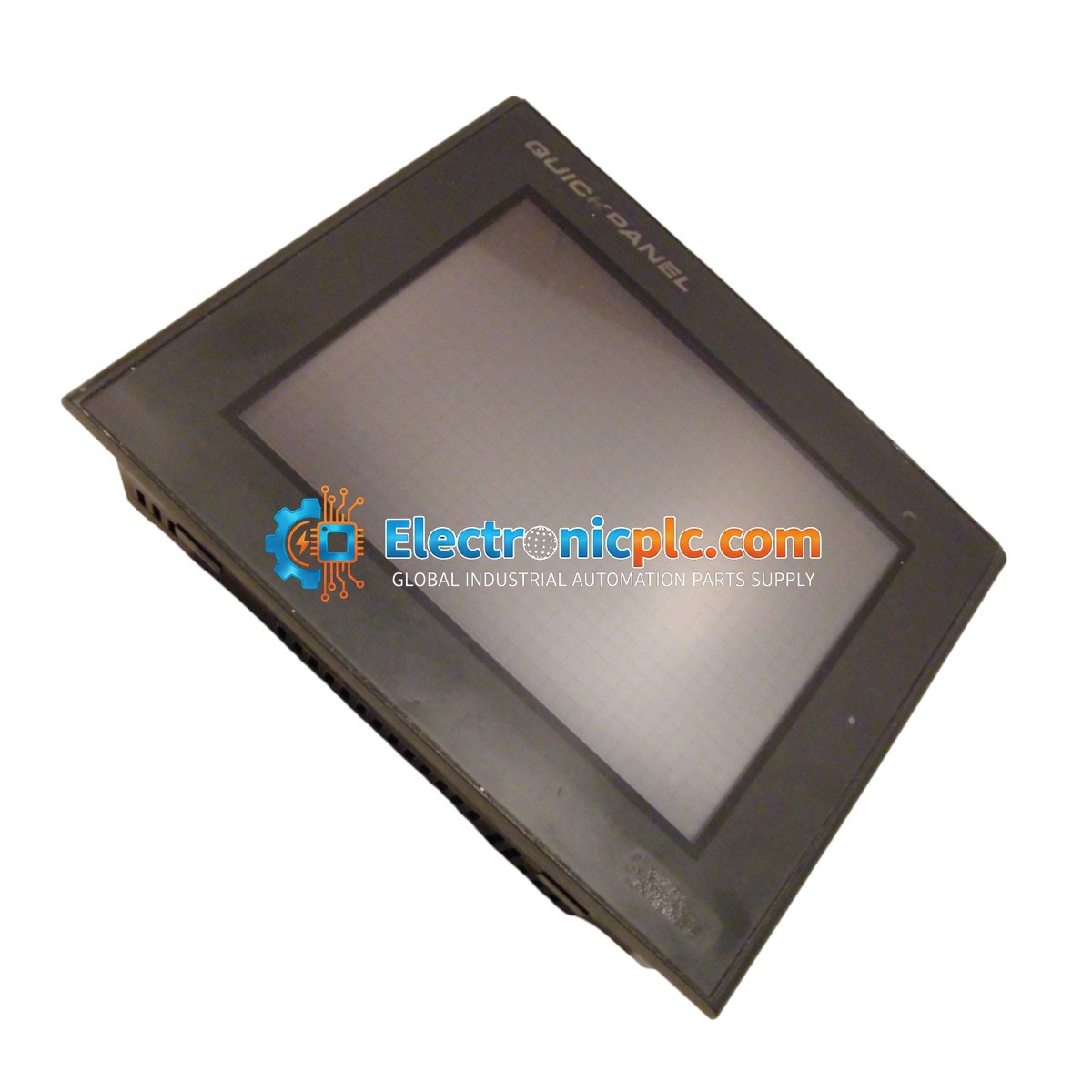

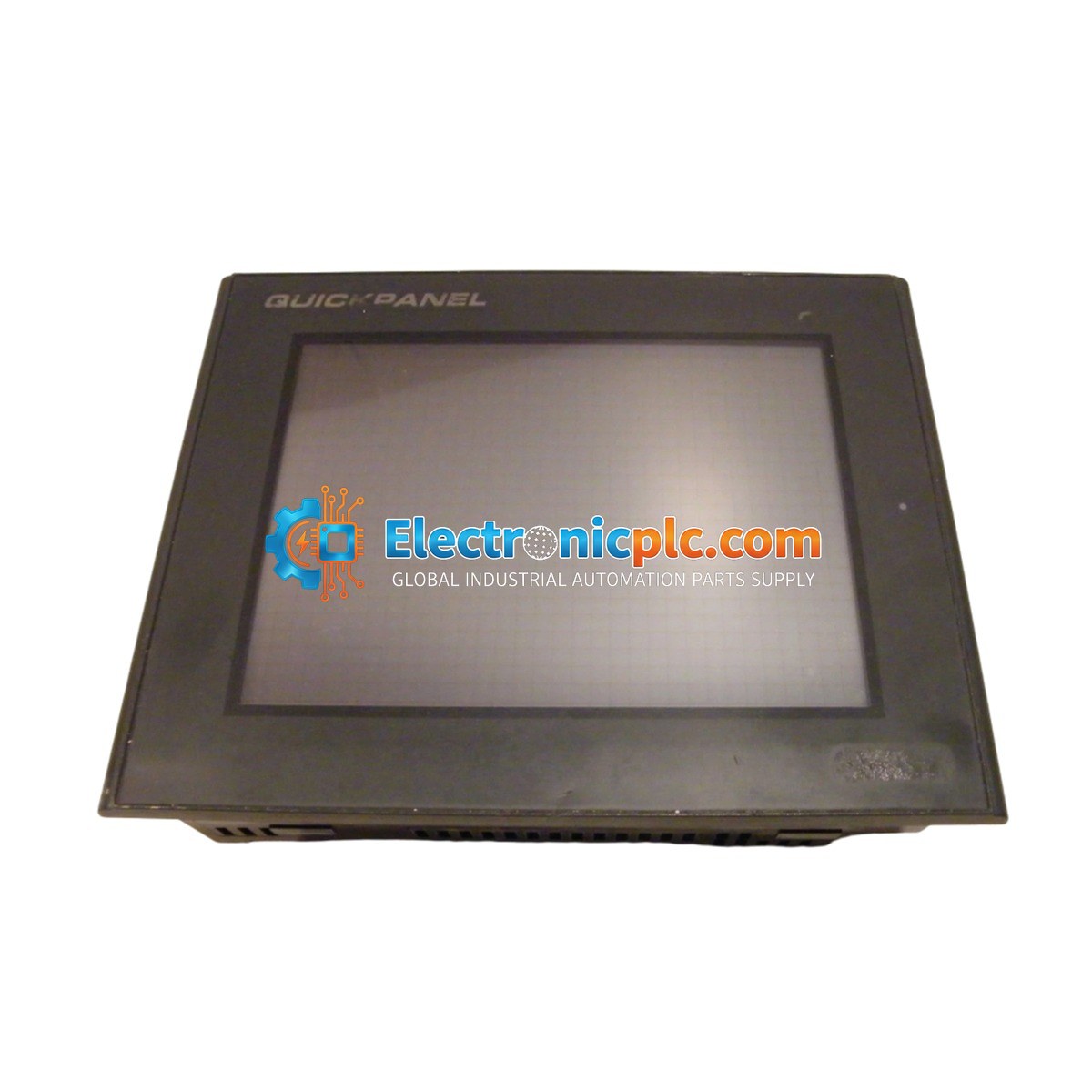

GE Fanuc QPGCTDE0000 QuickPanel 7.4-inch Color TFT HMI Terminal

GE Fanuc QPGCTDE0000 QuickPanel 7.4-inch Color TFT HMI Terminal

Description

The GE Fanuc QPGCTDE0000 is a high-performance QuickPanel Human-Machine Interface (HMI) graphic terminal designed for real-time industrial visualization and control. Featuring a 7.4-inch color TFT display, this unit provides operators...

27 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: QPGCTDE0000
Proveedora: GE FANUC
tipo: HMI Terminal
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The GE Fanuc QPGCTDE0000 is a high-performance QuickPanel Human-Machine Interface (HMI) graphic terminal designed for real-time industrial visualization and control. Featuring a 7.4-inch color TFT display, this unit provides operators with clear, high-resolution interface metrics. It is engineered for demanding industrial environments, including oil and gas, power generation, and heavy mining, where reliable process monitoring is critical. With an expanded 4 MB Flash EPROM memory architecture, the module supports complex, multi-layered diagnostic screens and historical trend logging, enabling maintenance teams to optimize uptime and perform rapid fault analysis.

Features

  • 7.4-inch color TFT LCD display with VGA resolution for clear data visualization.
  • Expanded 4 MB Flash EPROM memory for extensive application storage.
  • Integrated 10 Base-T Ethernet port for network telemetry and remote connectivity.
  • Comprehensive peripheral support including dual serial ports, a dedicated printer interface, and a high-speed software download link.
  • Advanced notification suite featuring a system alarm relay, lineout sound terminal, external speaker drive, and internal buzzer.
  • Ruggedized enclosure rated for NEMA 4X/12 and IP65, providing protection against dust, oil vapor, and low-pressure fluid ingress.

Applications

The QPGCTDE0000 is suitable for a wide range of industrial automation applications, including:

  • Oil refining and petrochemical control hubs.
  • Thermal and renewable power generation plants.
  • Heavy mining and material handling equipment.
  • Manufacturing process control and machine-level monitoring.

Technical Specifications

Model QPGCTDE0000
Brand GE Fanuc Total Control
Series QuickPanel
Display Size 7.4 inch
Display Type TFT Color LCD
Input Voltage 24 VDC
Memory 4 MB Flash EPROM
Network 10 Base-T Ethernet
Peripheral Ports 2 x Serial, 1 x Printer, 1 x Download
Discrete I/O 1 x Remote reset input, 4 x Audio/Alarm outputs
Protection Rating NEMA 4X / 12, IP65
Operating Temp 0 to 50 deg C
Cooling Natural convection

Installation Guidelines

  • Ensure the panel cutout dimensions are verified before mounting to maintain the NEMA 4X/IP65 seal integrity.
  • Use a clean, flat surface for mounting and ensure the gasket is seated correctly to prevent moisture or dust ingress.
  • Power the unit using a stable 24 VDC supply; verify polarity before connecting to prevent damage to internal circuitry.
  • Maintain proper clearance around the unit to allow for natural convection cooling; do not obstruct airflow.
  • Use shielded cables for communication ports to minimize EMI interference in high-noise industrial environments.
  • Always power down the unit before connecting or disconnecting communication cables or I/O wiring.

FAQ

What software is required to program this HMI?
The QPGCTDE0000 requires QuickDesigner software, version 3.7 or higher.

Does this unit support external speakers?
Yes, the module includes a dedicated external speaker drive terminal in addition to an internal buzzer and lineout sound terminal.

Is this unit suitable for washdown environments?
The unit is rated NEMA 4X/12 and IP65, meaning it is designed to withstand low-pressure fluid contact and airborne contaminants, making it suitable for many washdown-prone industrial areas.
