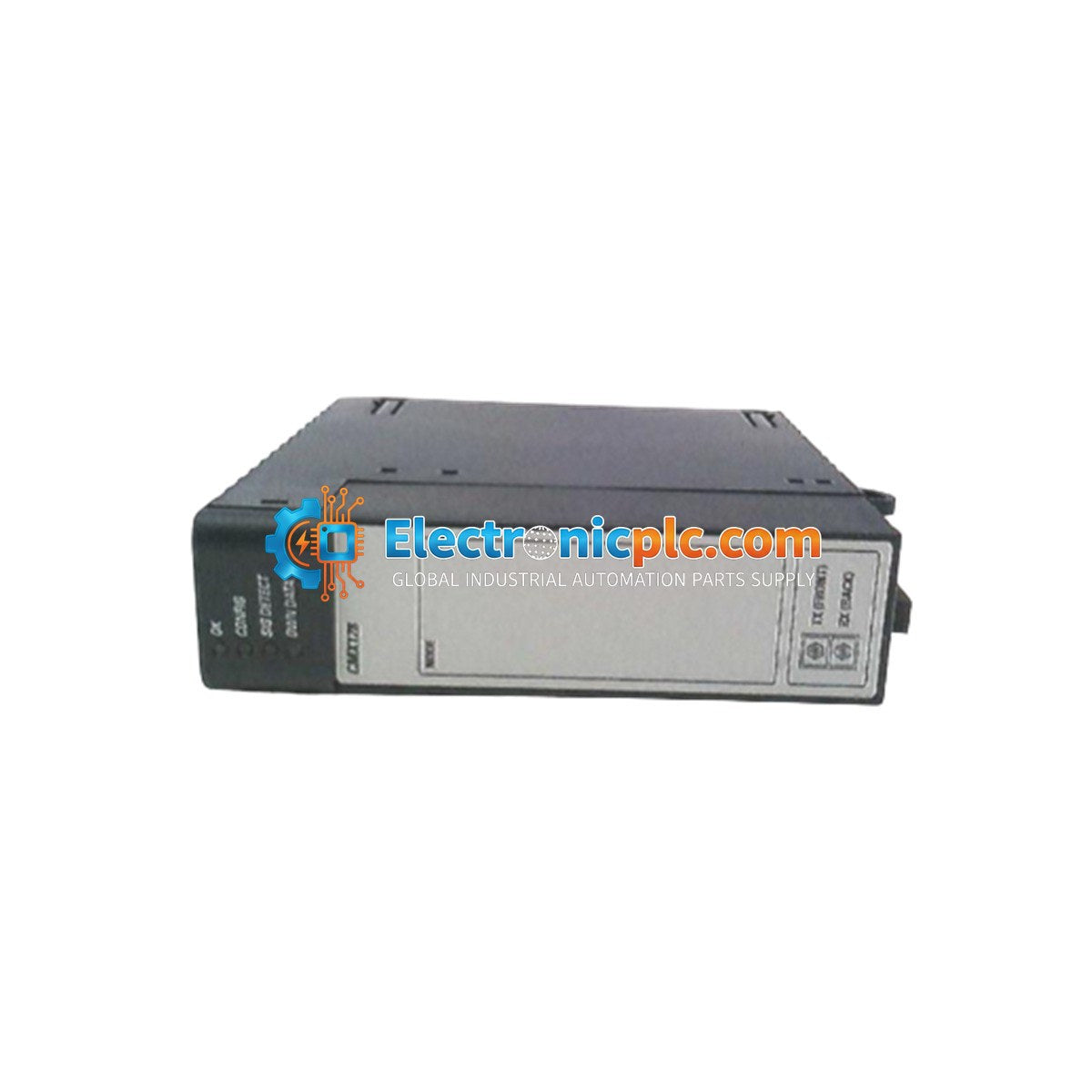

General Electric IC695CMX128 PACSystems RX3i Control Memory Xchange Module

General Electric IC695CMX128 PACSystems RX3i Control Memory Xchange Module

Description

The General Electric IC695CMX128 is a Control Memory Xchange module designed for the PACSystems RX3i platform. This module serves as a high-speed, deterministic data-sharing interface, allowing for seamless communication across...

22 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: DS3800HISA1A1A
Proveedora: General Electric
tipo: Control Memory Xchange Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The General Electric IC695CMX128 is a Control Memory Xchange module designed for the PACSystems RX3i platform. This module serves as a high-speed, deterministic data-sharing interface, allowing for seamless communication across a reflective memory network. It provides 128 Mbytes of user-shared memory, enabling rapid data synchronization between PLCs, industrial computers, and other compatible devices. When utilized in an RX3i Hot Standby CPU Redundancy system, it functions as a dedicated link between CPUs to ensure high-availability control.

Features

  • 128 Mbytes of high-speed SDRAM user-shared memory with parity.
  • High-speed reflective memory network support with a bus speed of 2.1 Gbits/sec.
  • Compatible with the 5565 family of reflective memory devices.
  • Supports up to 256 nodes on a single reflective memory network.
  • Single-slot module design for efficient rack space utilization in the RX3i backplane.
  • Automatic data updates across all network nodes whenever a write operation occurs.

Applications

  • Automotive assembly and manufacturing lines.
  • Power generation and distribution control systems.
  • Chemical and pharmaceutical processing facilities.
  • Oil and gas refinery automation.
  • High-availability redundancy systems requiring rapid CPU synchronization.

Technical Specifications

Model IC695CMX128
User Memory 128 MB SDRAM
Bus Speed 2.1 Gbits/sec
Network Transfer Rate 43 Mbyte/s to 174 Mbytes/s
Packet Size 4 to 68 bytes (dynamic)
Power Requirements 253 mA at +5V DC; 660 mA at +3.3V DC
Form Factor Single Slot

Installation Guidelines

  • Power Down: Always disconnect power from the RX3i rack before installing or removing the module to prevent electrical damage.
  • Handling: Use proper ESD (Electrostatic Discharge) precautions when handling the module.
  • Mounting: Ensure the module is fully seated in the backplane slot and secured using the integrated locking mechanism.
  • Enclosure: To comply with EN 55011 and FCC Class A standards, the module must be installed within a properly grounded metal enclosure to mitigate radio frequency (RF) interference.
  • Cabling: Ensure fiber-optic connections are clean and properly routed to avoid signal attenuation or mechanical stress.

FAQs

What is the IC695CMX128 module?

It is a Control Memory Xchange module for the RX3i series, used to provide deterministic, high-speed data sharing among PLCs and other computing devices via a fiber-optic, reflective memory network.

How much memory does the IC695CMX128 have?

The module possesses 128 Mbytes of reflective memory with parity.

What is the maximum number of modules supported in a rack?

A single RX3i main rack supports a maximum of 6 modules.

How many nodes can be on the network?

A reflective memory network using this module can contain up to 256 nodes.
