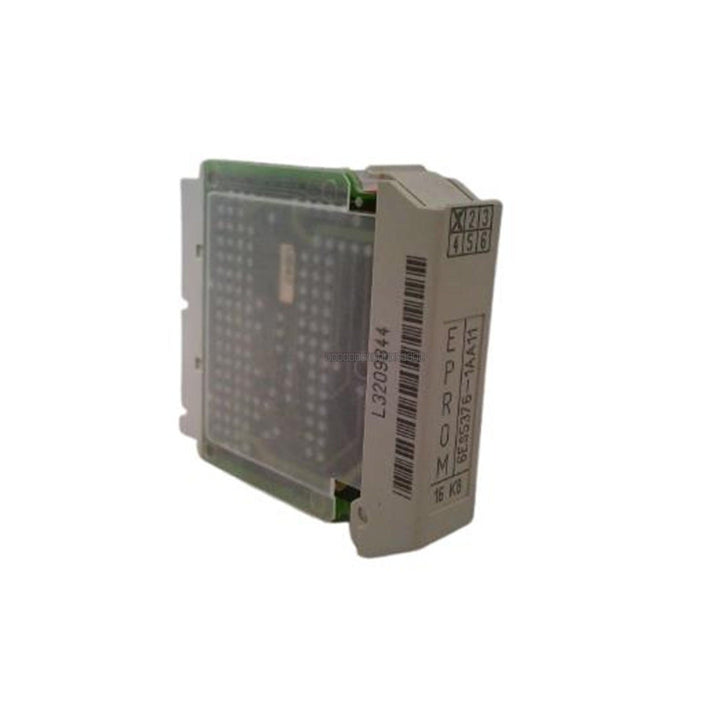

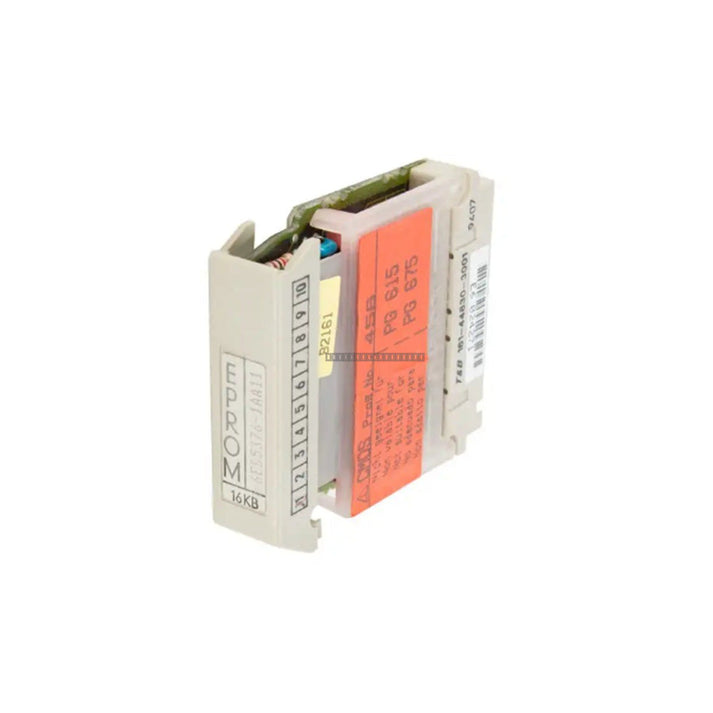

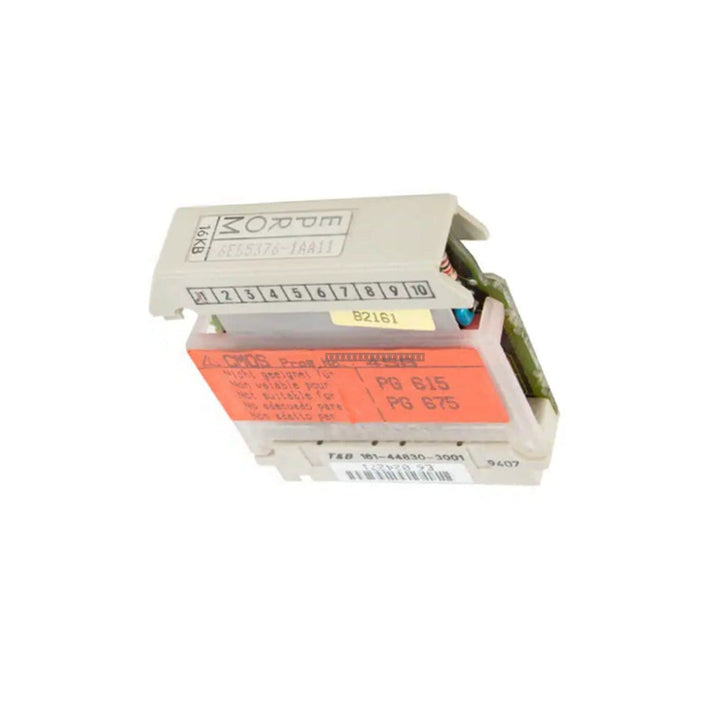

Siemens 6ES5376-1AA11 Simatic S5 Memory Sub-Module

Siemens 6ES5376-1AA11 Simatic S5 Memory Sub-Module

Description

The 6ES5 376-1AA11 is a 16 KB CMOS-EPROM sub-module designed for the Siemens Simatic S5 programmable logic controller series. This non-volatile memory hardware is used to store compiled STEP 5...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 6ES5376-1AA11
Proveedora: Siemens
tipo: Memory Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The 6ES5 376-1AA11 is a 16 KB CMOS-EPROM sub-module designed for the Siemens Simatic S5 programmable logic controller series. This non-volatile memory hardware is used to store compiled STEP 5 machine logic, system parameters, and organization blocks permanently on the host central processing unit. It is widely utilized in industrial environments, such as manufacturing plants and water treatment facilities, where stable, battery-independent program storage is required. By preventing application data loss during power failures or backup battery depletion, this module ensures immediate code re-execution upon power restoration, minimizing system downtime.

Memory Architecture

The module utilizes a CMOS-EPROM matrix with a 16 KB storage capacity. Its architecture supports multi-bit parallel data addressing, providing stable read access speeds synchronized with the S5 CPU execution cycle. Unlike volatile RAM, this module retains its data without the need for electronic refresh pulses. Programming is performed via an external PG series programmer using high-voltage algorithms, after which the module is inserted into the designated slot on the S5 processor.

Features

  • Non-volatile storage ensures data integrity during power loss.
  • 16 KB capacity for complex STEP 5 logic and system blocks.
  • Shielded, anti-static housing protects internal components from electromagnetic interference and vibration.
  • Compact cartridge design for easy installation and replacement in S5 CPU assemblies.

Installation Guidelines

  • Ensure the S5 CPU is powered down before inserting or removing the memory module to prevent electrical damage.
  • Handle the module by its housing to avoid electrostatic discharge (ESD) damage to the internal pins.
  • Ensure the module is fully seated in the designated front slot of the S5 processor assembly.
  • Verify that the module is correctly keyed for the specific CPU slot to prevent misalignment.

Technical Specifications

Model 6ES5 376-1AA11
Brand Siemens
Product Family Simatic S5
Memory Type CMOS-EPROM
Capacity 16 KB
Data Retention Non-volatile
Operating Temperature 0 to 60 deg C
Storage Temperature -20 to 70 deg C

FAQ

Is this module compatible with all S5 CPUs?

The 6ES5 376-1AA11 is designed for specific Simatic S5 series processors that support EPROM sub-modules. Please verify your CPU manual for compatibility with 16 KB EPROM cartridges.

Does this module require a battery?

No, this is a non-volatile EPROM module. It does not require battery power to retain its programmed data.
