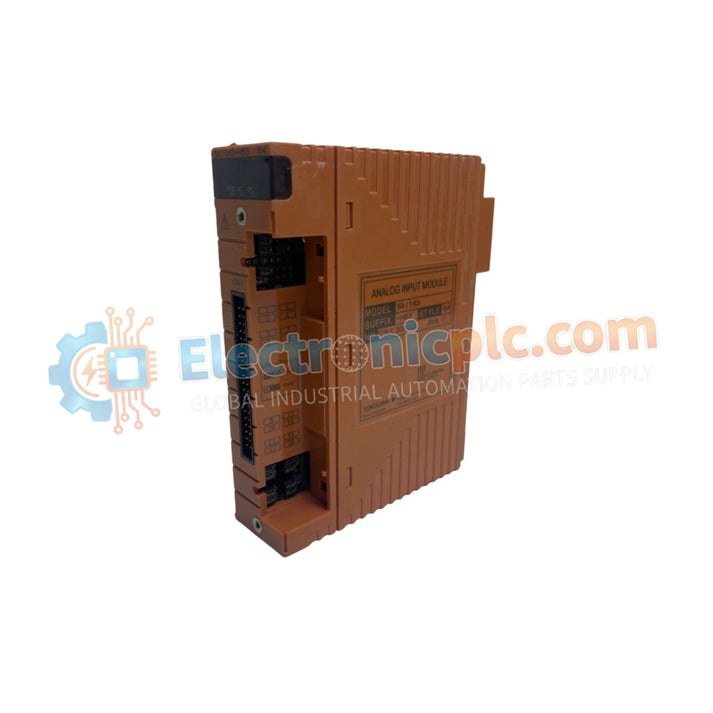

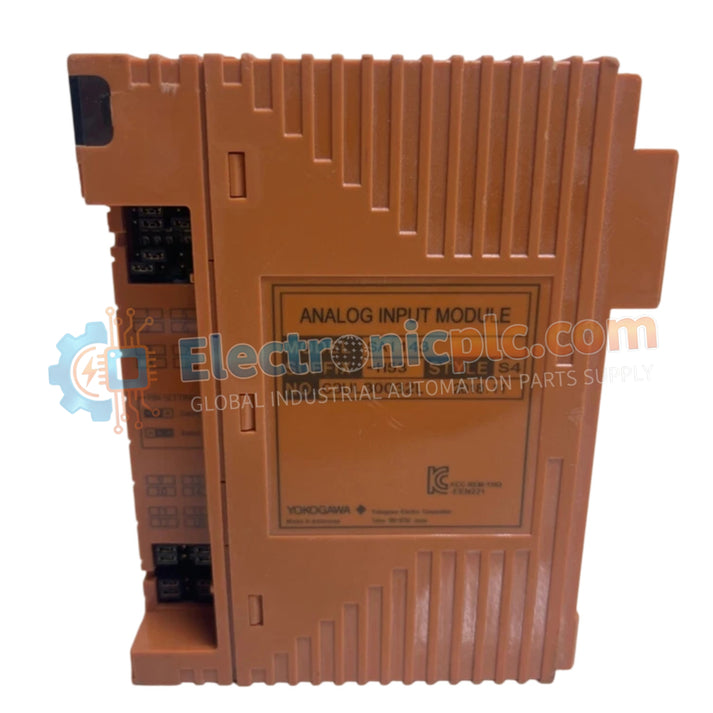

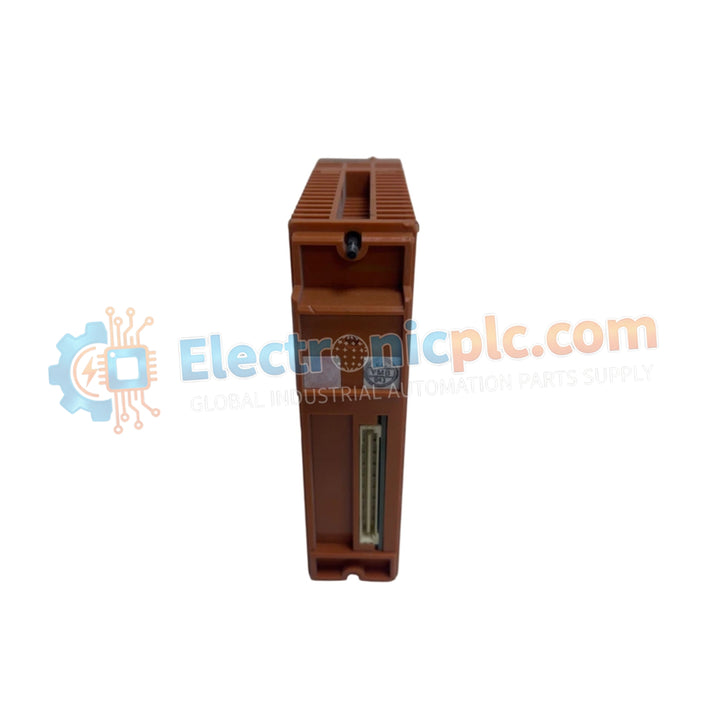

Configured for analog signal acquisition and loop execution in distributed control systems, the YOKOGAWA SAI143-S53/A4S10 (SAI143-S53) Analog Input Module provides direct physical and electrical execution for process automation platforms.

Hardware Specifications

Channel Isolation and DCS Bus Architecture

The module incorporates channel-to-channel optical isolation circuitry designed to eliminate ground loops and common-mode transient interference across multi-loop process environments. Signal conditioning stages filter electromagnetic noise prior to analog-to-digital conversion, ensuring signal integrity across standard 4-20 mA HART loop protocols. Internal diagnostic registers continuously monitor field-side loop continuity, providing immediate fault flags to the central control processor upon open-circuit or short-circuit detection.

Frequently Asked Questions

Q: What is the maximum backplane current draw for the SAI143-S53/A4S10 module?

A: The module draws a maximum of 0.5 A from the system backplane 5 VDC power bus during normal operational state.

Q: Does this hardware support online module replacement within active racks?

A: Physical extraction and insertion are supported under power, provided that the associated loop circuits are properly isolated and standard electrostatic discharge precautions are observed.

Field Installation Guidelines

Mount the module securely onto designated Yokogawa node unit slots, ensuring proper engagement with backplane connectors. Terminate field signal cables using shielded twisted pairs, and connect drain wires directly to the cabinet ground bar to mitigate electromagnetic interference. Verify that terminal connection screws are torqued within standard industrial limits prior to system power-up.
