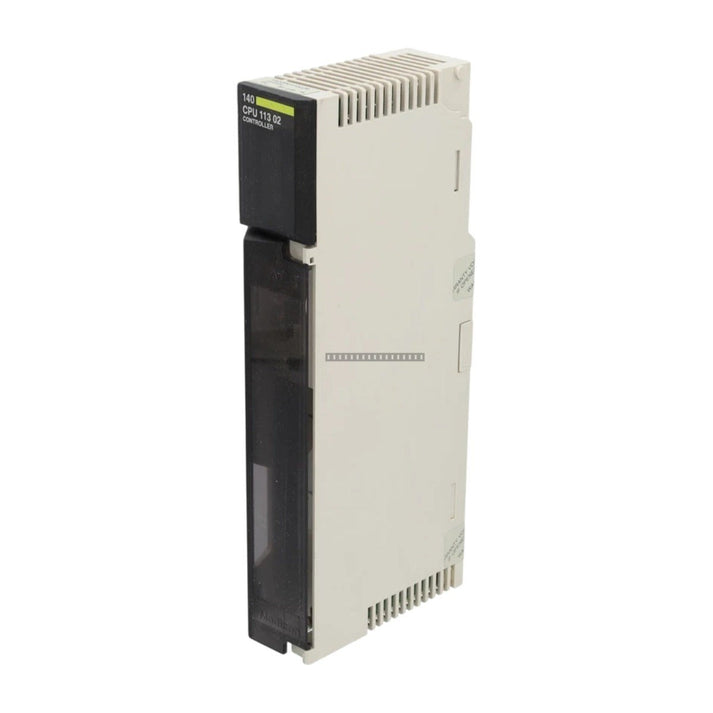

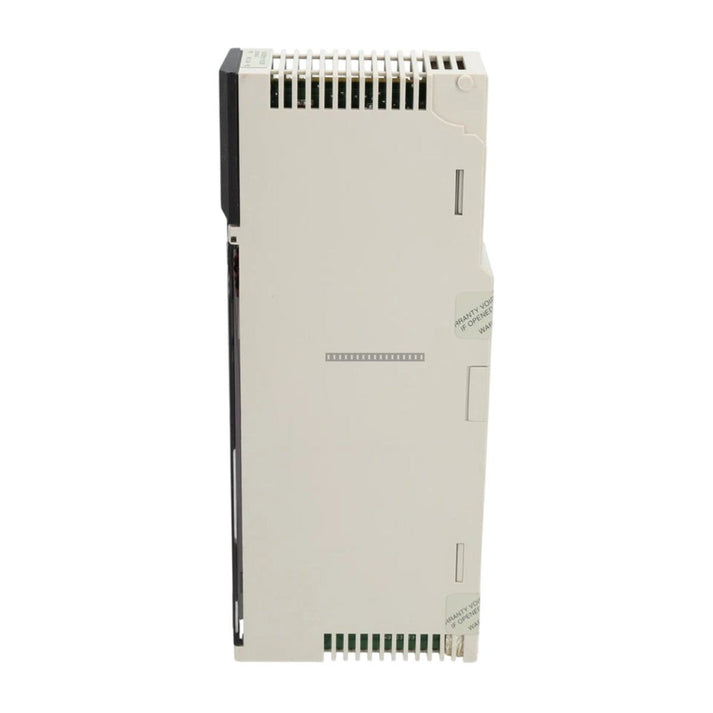

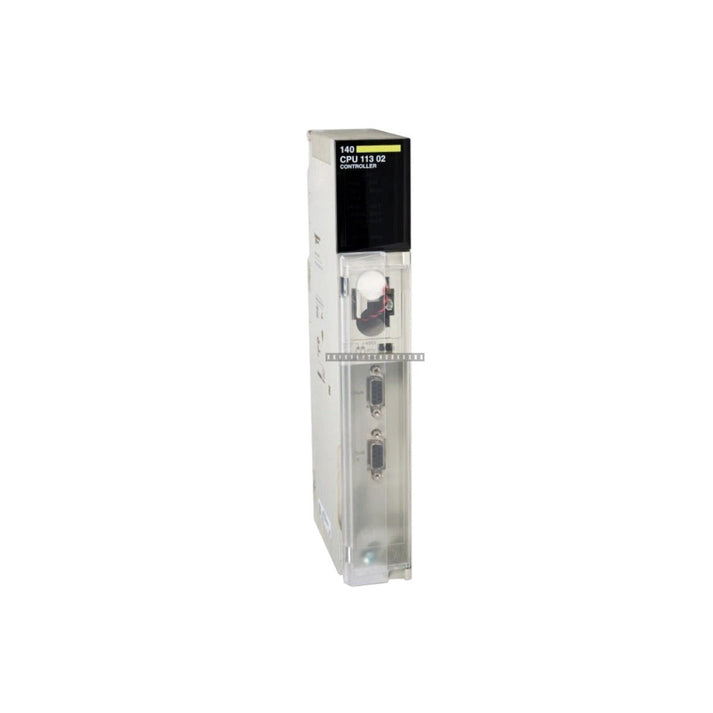

Schneider Electric 140CPU11302R Modicon Quantum Processor

Schneider Electric 140CPU11302R Modicon Quantum Processor

The Schneider Electric 140CPU11302R is a high-performance central processing unit designed for the Modicon Quantum automation platform. This processor is engineered to manage high-speed logic execution, providing robust control for...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 140CPU11302R
Proveedora: Schneider
tipo: PLC CPU Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

The Schneider Electric 140CPU11302R is a high-performance central processing unit designed for the Modicon Quantum automation platform. This processor is engineered to manage high-speed logic execution, providing robust control for complex industrial applications including power generation, water treatment facilities, and large-scale manufacturing lines.

Features

  • 32-bit RISC processor architecture operating at 66 MHz for efficient instruction handling.
  • Integrated 512 kB of battery-backed RAM for program storage and 256 kB of retentive RAM for data.
  • Fast execution speed of 0.15 microseconds per Boolean instruction.
  • Includes dedicated RS-232 and RS-485 communication ports for Modbus and Modbus Plus connectivity.
  • Features a Type II PCMCIA slot for memory expansion or communication card integration.
  • Compatible with Concept and Unity Pro XL programming software environments.

Applications

This controller is widely utilized in mission-critical industrial environments requiring reliable, deterministic control. Typical applications include distributed control systems (DCS), complex machine automation, and process control in heavy industry.

Technical Specifications

Brand Schneider Electric
Model 140CPU11302R
Processor Type 32-bit RISC (66 MHz)
Program Memory 512 kB RAM (Battery Backed)
Data Memory 256 kB RAM (Retentive)
Execution Speed 0.15 µs / Boolean instruction
Communication 1 x RS-232 (Modbus), 1 x RS-485 (Modbus Plus)
Power Input 5 VDC (via backplane)
Power Consumption 7.5 W (Typical)
Backup Battery 140XCP90000 (3V Lithium)

Installation Guidelines

  • Ensure the Quantum backplane is powered down before inserting or removing the CPU module to prevent electrical damage.
  • The module must be seated firmly into the designated slot on the Quantum rack to ensure proper backplane contact.
  • Use appropriate ESD protection when handling the module to prevent damage to sensitive internal components.
  • Ensure the 140XCP90000 backup battery is installed and in good condition to maintain retentive memory during power cycles.
  • Route communication cables away from high-voltage lines and sources of electromagnetic interference (EMI) to maintain signal integrity.

FAQ

What software is required to program this CPU?
The 140CPU11302R is compatible with Schneider Electric's Concept or Unity Pro XL programming software.

Does this module require a battery?
Yes, it uses a 140XCP90000 3V lithium battery to maintain the contents of the RAM during power loss.

Can I expand the memory of this processor?
Yes, the integrated Type II PCMCIA slot supports SRAM (up to 8 MB) and Flash memory cards for expanded storage.
