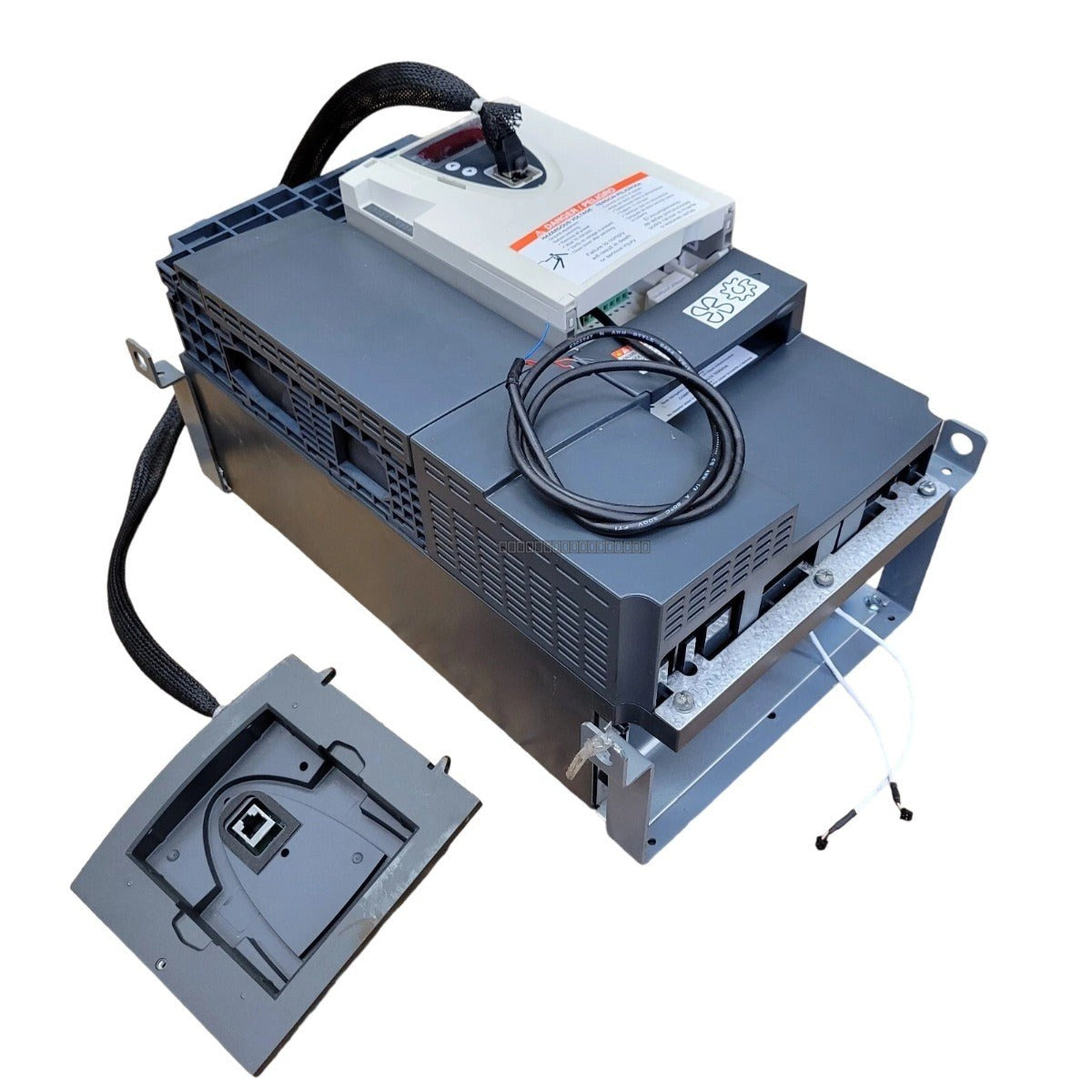

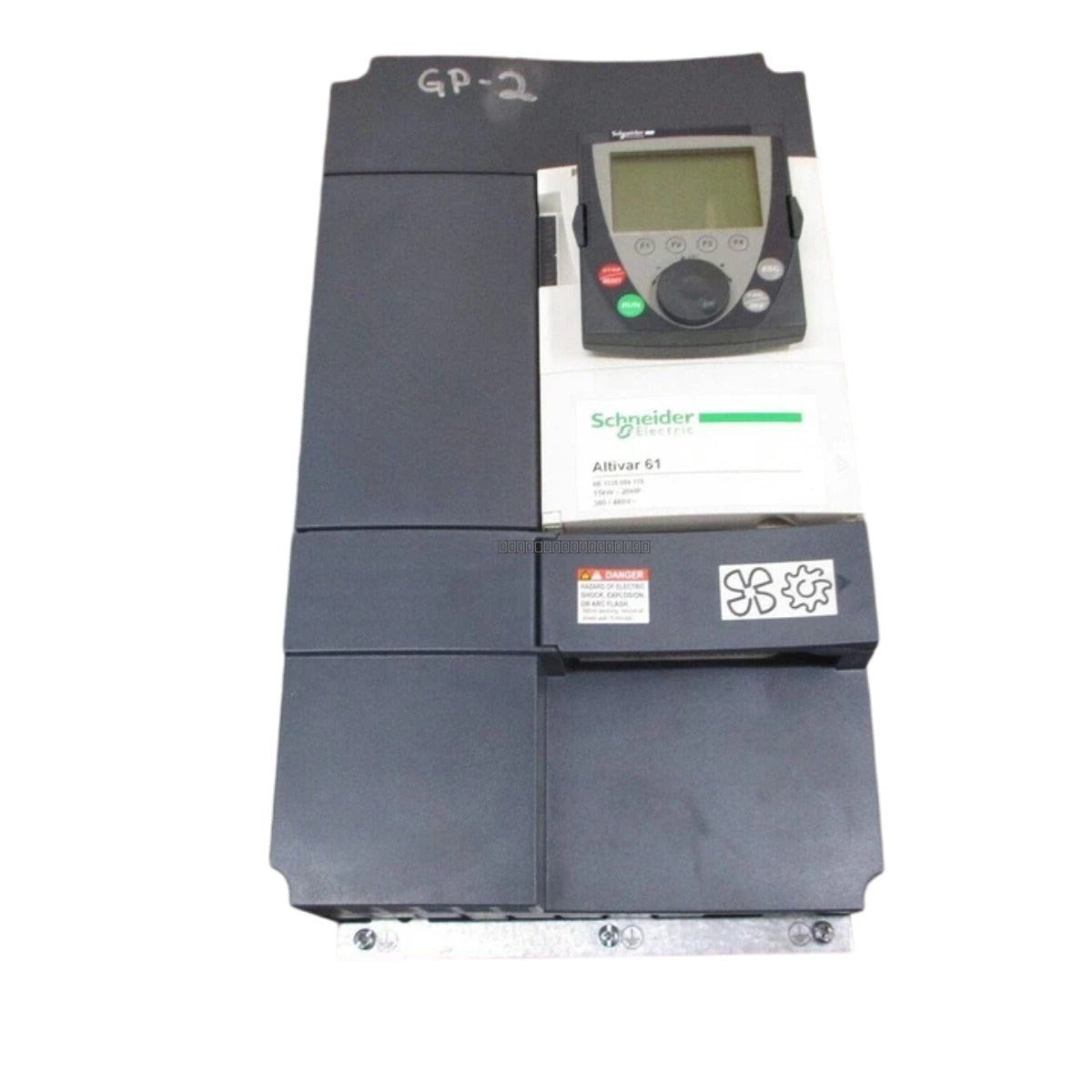

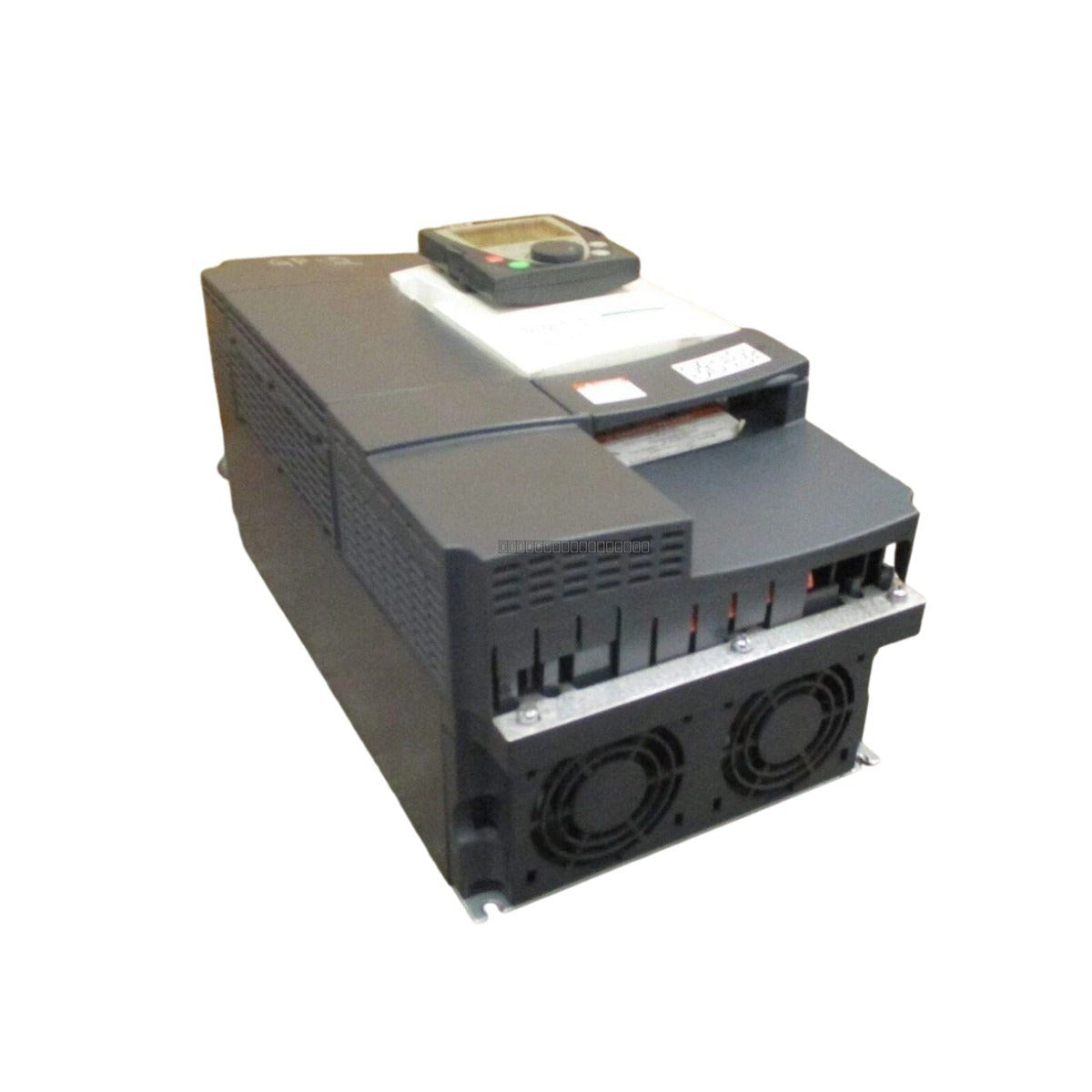

Schneider Electric Altivar 61 ATV61HD15N4 Variable Speed Drive 15kW 20HP

Schneider Electric Altivar 61 ATV61HD15N4 Variable Speed Drive 15kW 20HP

Description

The Schneider Electric Altivar 61 ATV61HD15N4 is a high-performance variable speed drive designed for precise motor control in industrial applications. Engineered for reliability and efficiency, this drive is specifically optimized...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 9

SKU: ATV61HD15N4
Proveedora: Schneider Electric
tipo: Variable Speed Drive
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Schneider Electric Altivar 61 ATV61HD15N4 is a high-performance variable speed drive designed for precise motor control in industrial applications. Engineered for reliability and efficiency, this drive is specifically optimized for pumping and ventilation systems, providing advanced control features and seamless integration into industrial automation networks.

Features

  • Designed for 15 kW (20 HP) motor applications.
  • Supports 3-phase power supply ranging from 380V to 480V.
  • Integrated graphic terminal for intuitive configuration and monitoring.
  • IP20 protection rating suitable for cabinet-mounted installations.
  • Built-in EMC filtering to reduce electromagnetic interference in sensitive environments.

Applications

This drive is ideal for HVAC systems, centrifugal pumps, fans, and compressors where energy efficiency and precise flow or pressure control are required.

Technical Specifications

Model ATV61HD15N4
Manufacturer Schneider Electric
Product Range Altivar 61
Power Rating 15 kW / 20 HP
Supply Voltage 380-480V AC (-15% to +10%)
Supply Phases 3-Phase
Enclosure Rating IP20
Application Pumping and Ventilation

Installation Guidelines

  • Ensure the drive is installed in a clean, dry, and well-ventilated environment to prevent overheating.
  • Maintain adequate clearance around the unit as specified in the installation manual to allow for proper airflow.
  • Ensure all power connections are tightened to the specified torque settings to prevent arcing or loose contacts.
  • Verify that the supply voltage matches the drive specifications before applying power.
  • Always disconnect and lock out power sources before performing any wiring or maintenance.
  • Use shielded cables for motor connections to minimize electromagnetic interference.
  • Ground the drive according to local electrical codes and the manufacturer's grounding diagram.

FAQ

Is this drive suitable for heavy-duty industrial motors?

The ATV61HD15N4 is specifically optimized for pumping and ventilation applications. For high-torque or heavy-duty industrial machinery, please consult the product datasheet to ensure the drive's current rating matches your motor's full-load amperage.

Does this unit include a control interface?

Yes, this model comes equipped with a graphic terminal, allowing for easy parameter adjustment, diagnostics, and real-time status monitoring.
