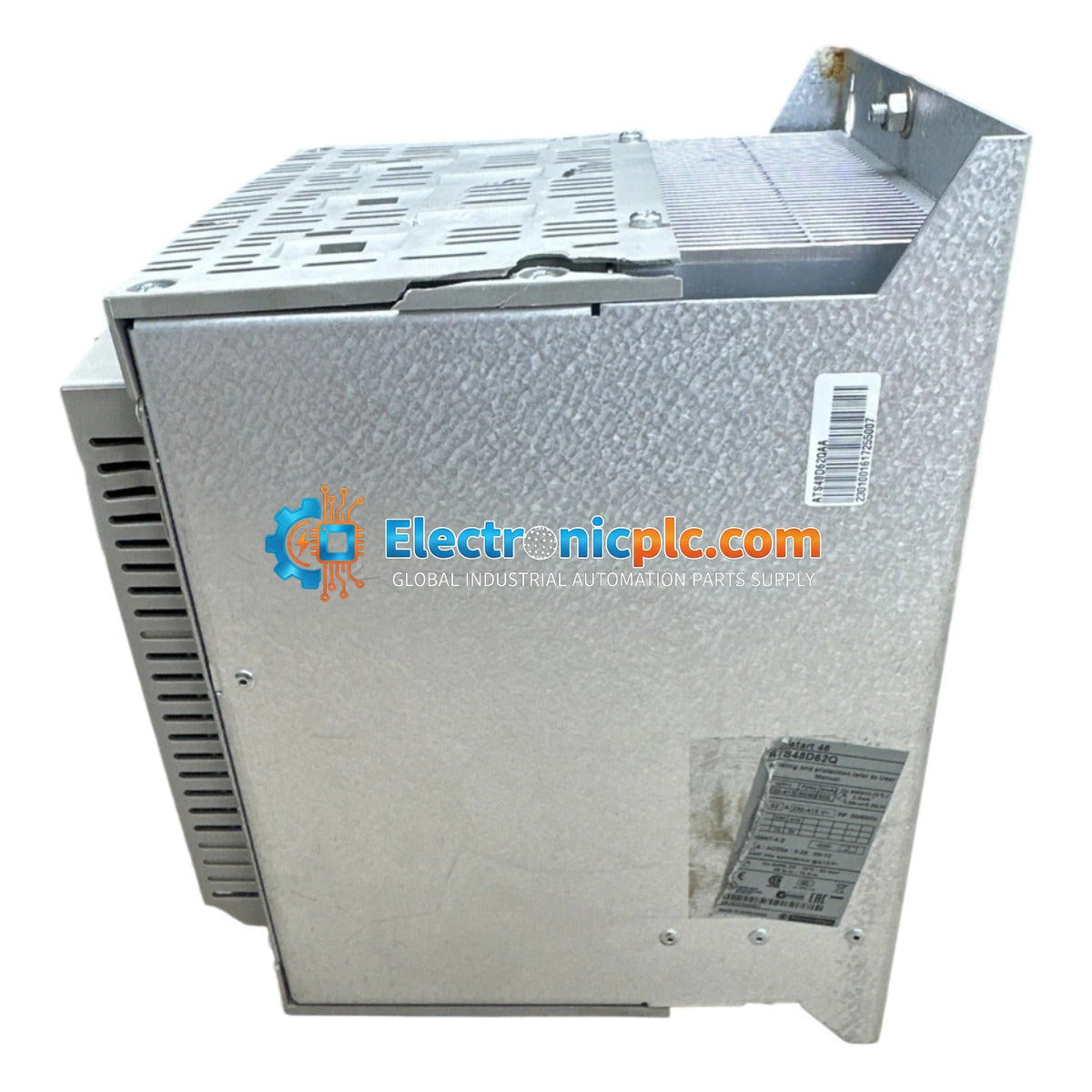

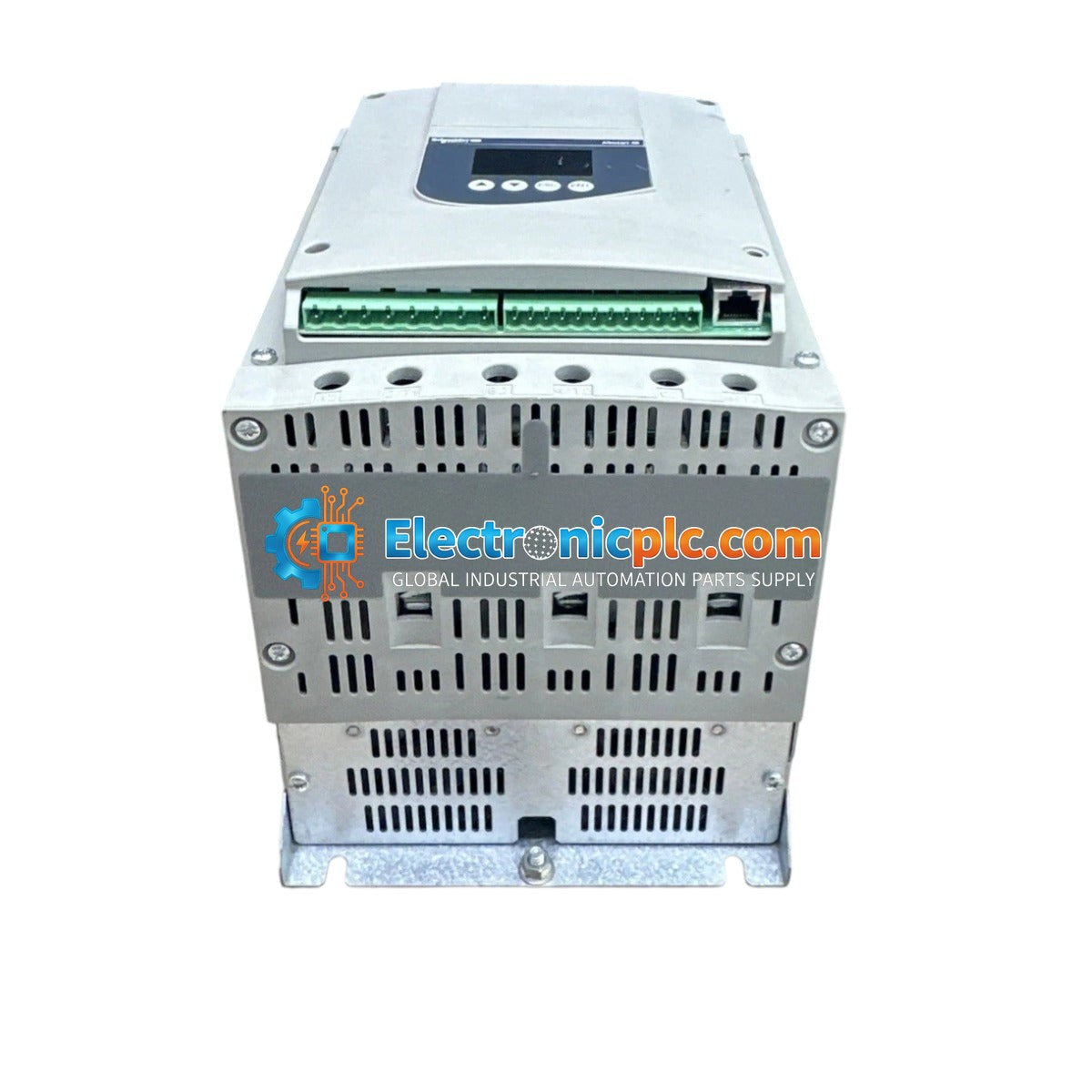

Schneider Electric Altistart 48 ATS48C21Q Soft Starter

Schneider Electric Altistart 48 ATS48C21Q Soft Starter

Description

The Schneider Electric Altistart 48 ATS48C21Q is a high-performance soft starter designed for the control and protection of three-phase asynchronous motors. Engineered for heavy-duty industrial applications, this unit provides smooth...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 4

SKU: ATS48C21Q
Proveedora: Schneider Electric
tipo: Soft Starter
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Schneider Electric Altistart 48 ATS48C21Q is a high-performance soft starter designed for the control and protection of three-phase asynchronous motors. Engineered for heavy-duty industrial applications, this unit provides smooth starting and stopping sequences, effectively reducing mechanical stress on equipment and minimizing current surges during motor startup. It is widely utilized in applications such as pumps, fans, compressors, and conveyors to enhance system longevity and operational efficiency.

Features

  • Advanced torque control system for smooth acceleration and deceleration.
  • Integrated protection functions for the motor, the starter, and the driven machine.
  • Supports a wide range of power supply voltages from 230 V to 415 V.
  • Designed for heavy-duty industrial environments requiring reliable motor management.
  • Configurable discrete inputs for flexible control integration.

Applications

  • Centrifugal and piston pumps.
  • Industrial fans and ventilation systems.
  • Compressors and refrigeration units.
  • Conveyor belts and material handling equipment.

Technical Specifications

Product Model ATS48C21Q
Device Type Soft Starter
Supply Voltage Range 230...415 V (-15% to +10%)
Voltage Limits 195...456 V
Frequency Range 50...60 Hz (-5% to +5%)
Frequency Limits 47.5...63 Hz
Discrete Input Voltage 24 V (up to 30 V)
Manufacturer Schneider Electric

Installation Guidelines

  • Ensure the device is mounted in a vertical position to allow for proper heat dissipation.
  • Maintain adequate clearance around the unit to facilitate airflow and prevent overheating.
  • Use shielded cables for control signals to minimize electromagnetic interference (EMI).
  • Verify that the supply voltage matches the specifications before applying power.
  • Always disconnect the main power supply before performing any wiring or maintenance on the terminal blocks.
  • Ensure proper grounding of the chassis to a common earth point to maintain electrical safety.

FAQ

What is the primary function of the ATS48C21Q?

The ATS48C21Q acts as a soft starter to limit the starting current and torque of three-phase asynchronous motors, preventing mechanical shock and electrical stress on the power distribution network.

Can this soft starter be used for pump applications?

Yes, the Altistart 48 series is specifically designed to handle the torque requirements of pumps, providing smooth transitions that reduce water hammer effects in piping systems.
