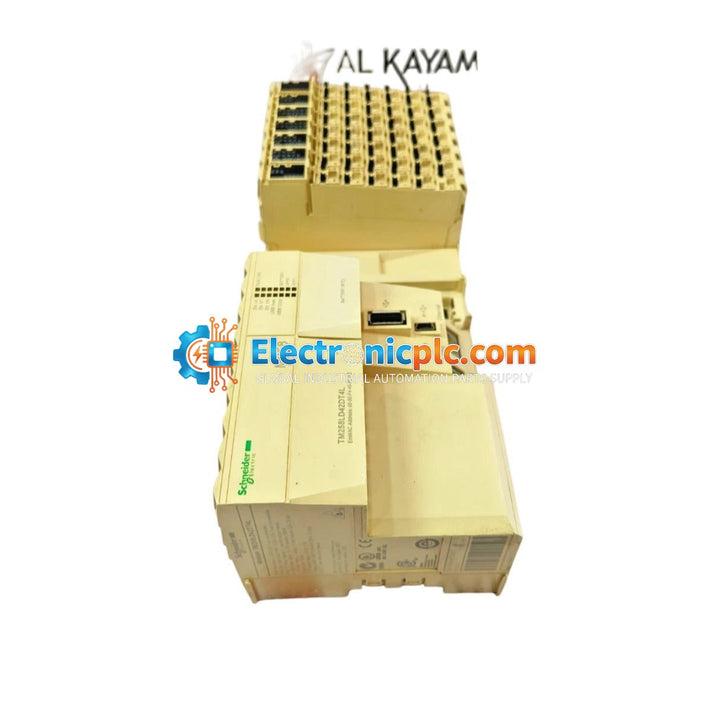

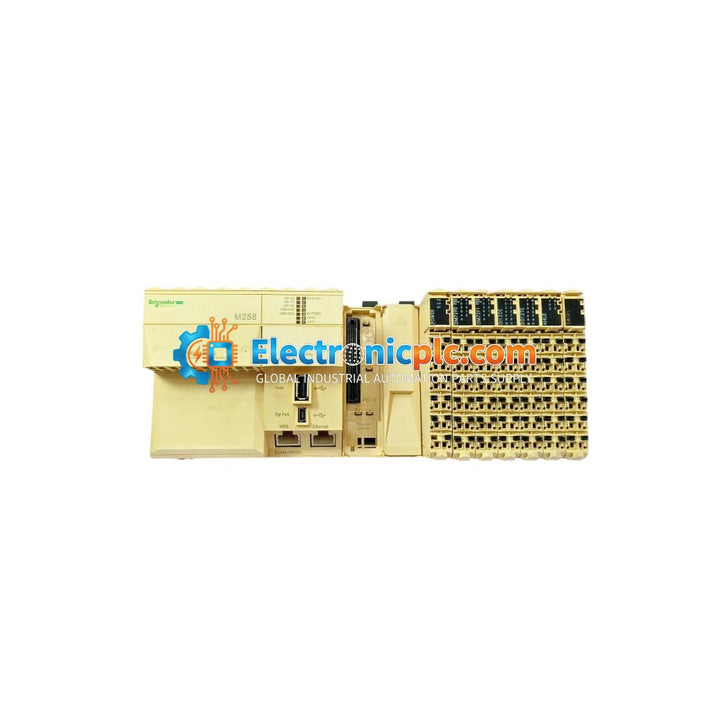

Schneider Electric TM258LD42DT Modicon M258 Logic Controller

Schneider Electric TM258LD42DT Modicon M258 Logic Controller

Description

The Schneider Electric TM258LD42DT is a high-performance logic controller designed for demanding machine automation applications. As part of the Modicon M258 range, this unit integrates advanced processing capabilities with a...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: TM258LD42DT
Proveedora: Schneider
tipo: Logic Controller
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Schneider Electric TM258LD42DT is a high-performance logic controller designed for demanding machine automation applications. As part of the Modicon M258 range, this unit integrates advanced processing capabilities with a high density of onboard I/O, making it an ideal solution for space-constrained control cabinets. It is engineered to manage complex sequential logic and motion control tasks efficiently.

Features

  • Powerful 32-bit ARM Cortex processor for rapid instruction execution.
  • Integrated I/O configuration including 24 digital inputs, 16 digital outputs, and 2 analog inputs.
  • Robust communication suite with dual Ethernet, dual CANopen, and USB connectivity.
  • Compact, durable housing designed for DIN rail mounting.
  • Optimized for high-speed machine control and automation integration.

Applications

The TM258LD42DT is widely utilized in industrial automation, including packaging machinery, material handling systems, assembly lines, and complex motion control applications where precise timing and reliable logic execution are required.

Technical Specifications

Manufacturer Schneider Electric
Model TM258LD42DT
Product Line Modicon M258
Processor 32-bit ARM Cortex
Memory 256 MB RAM, 128 MB Flash
Processing Speed 0.03 us per instruction
Digital Inputs 24 channels (24V DC)
Digital Outputs 16 channels (transistor, 0.5A)
Analog Inputs 2 channels (0-10V)
Communication 2 x Ethernet, 2 x CANopen, 1 x USB
Power Supply 24V DC
Operating Temperature 0 degC to 55 degC
Weight 0.65 kg

Installation Guidelines

  • Mount the controller on a standard 35mm DIN rail within an appropriate industrial enclosure.
  • Ensure adequate ventilation around the unit to maintain operating temperatures within the 0 degC to 55 degC range.
  • Use shielded cables for communication and analog signals to minimize EMI interference.
  • Verify that the 24V DC power supply is stable and properly grounded before connection.
  • Always power down the system before inserting or removing modules or wiring to prevent electrical damage.
  • Maintain proper wire routing, keeping high-voltage power lines separate from low-voltage signal and communication cables.

FAQ

What is the primary function of the TM258LD42DT?

The TM258LD42DT is a programmable logic controller (PLC) used to automate machine processes, handling both sequential logic and motion control tasks.

Does this controller support communication with other devices?

Yes, it features extensive connectivity options, including two Ethernet ports, two CANopen ports, and a USB port for programming and data exchange.

What type of power supply is required?

This unit operates on a 24V DC power supply.
