Description

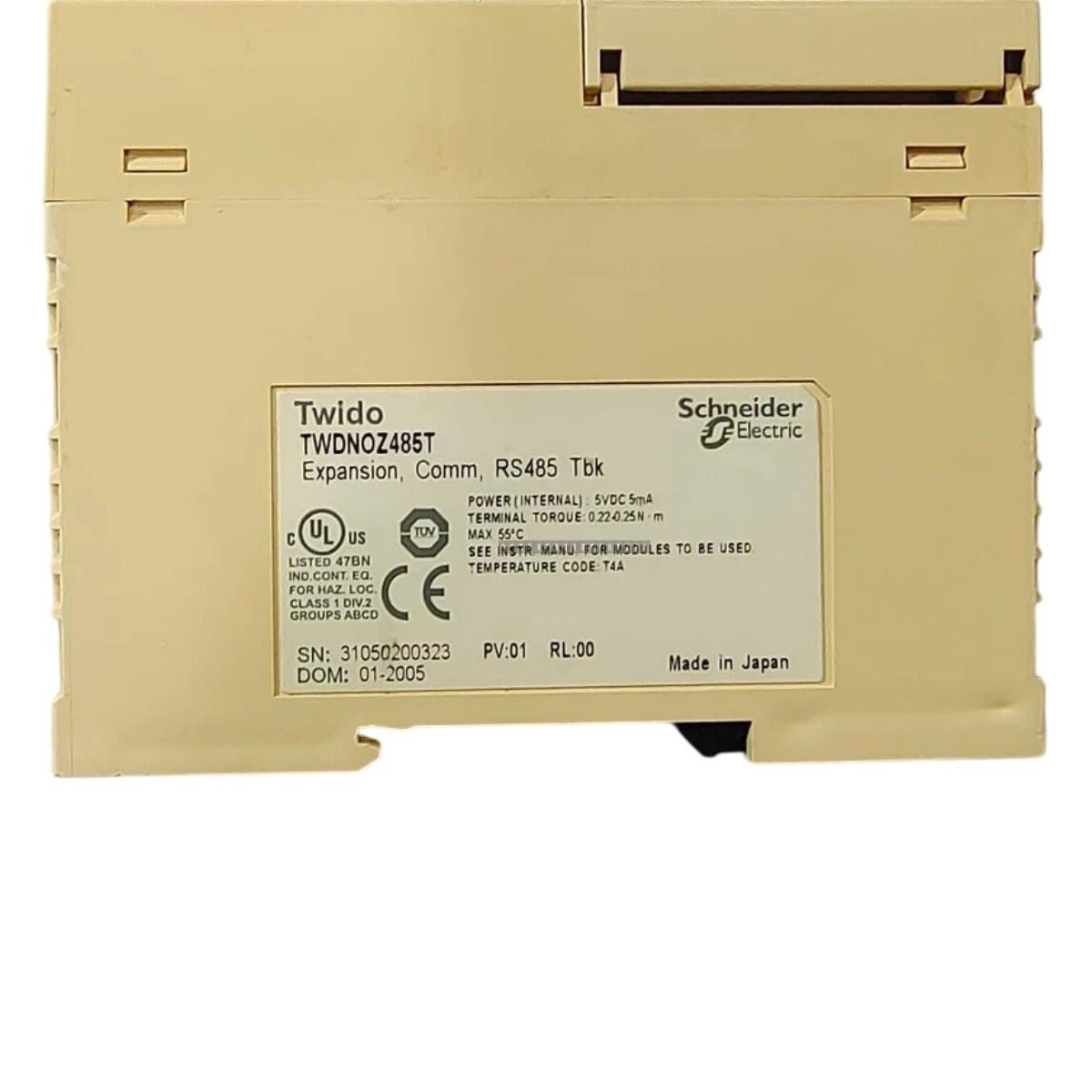

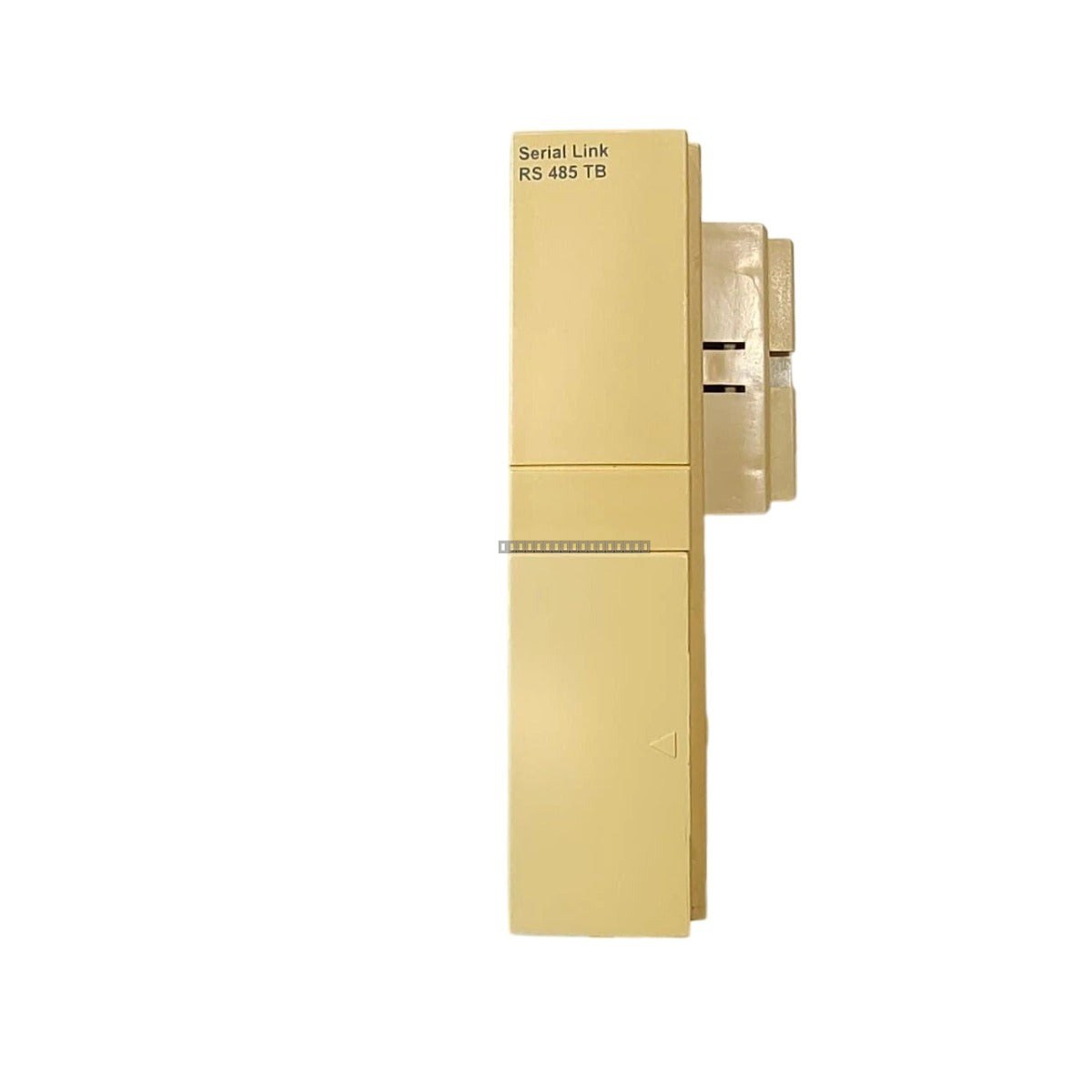

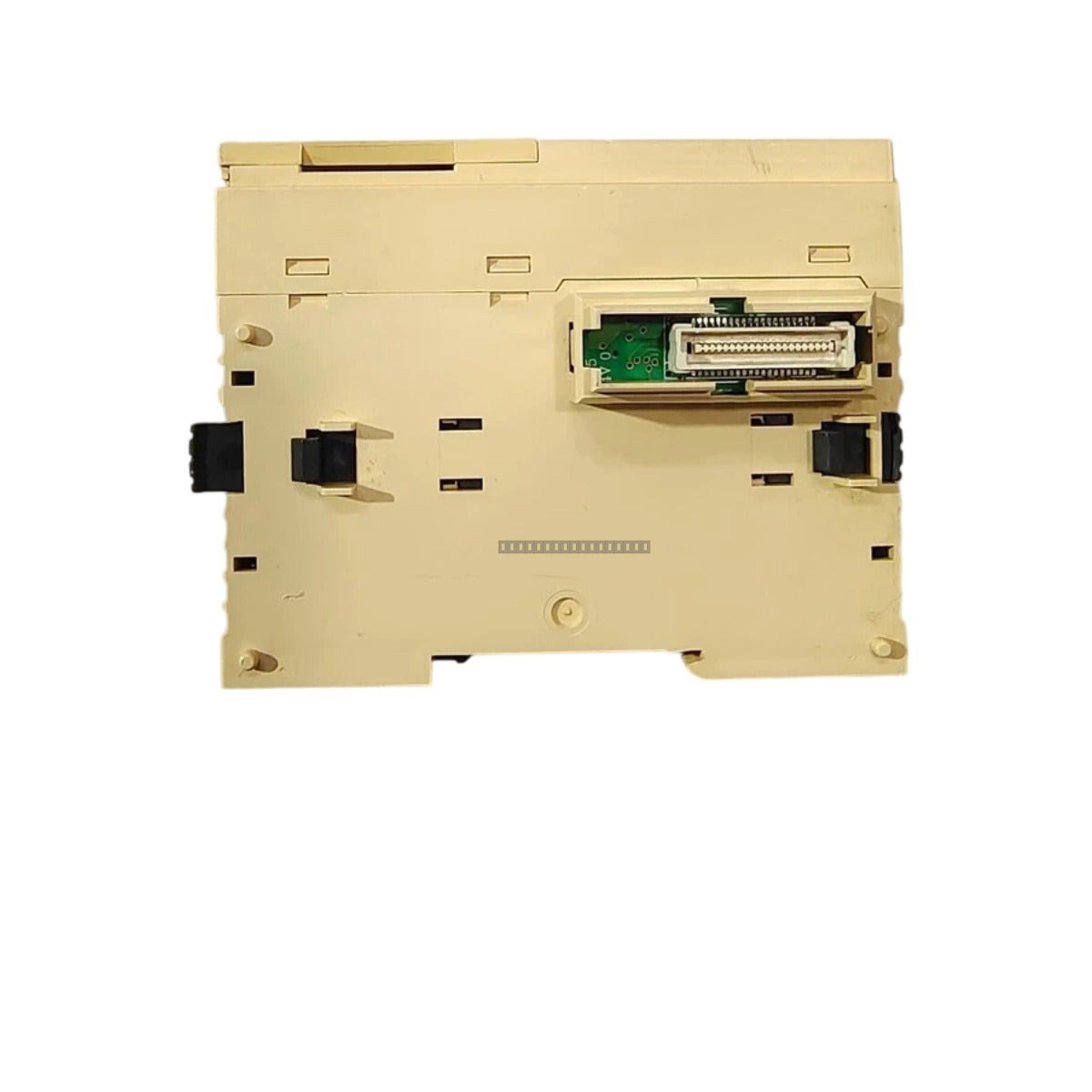

The Schneider Electric TWDNOZ485T is a specialized serial interface module designed for the Twido PLC platform. This unit serves as a serial link adaptor, providing an RS485 communication interface to facilitate data exchange and connectivity within industrial automation networks. It features a reliable screw terminal block for secure wiring connections in control cabinet environments.

Features

• Designed specifically for compatibility with the Schneider Electric Twido PLC series
• Provides RS485 serial communication capability
• Equipped with a screw terminal block for robust field wiring
• Compact form factor suitable for space-constrained control panels

Technical Specifications

Installation Guidelines

• Ensure the PLC is powered down before installing or removing the TWDNOZ485T module to prevent electrical damage.
• Mount the module securely according to the Twido system hardware configuration requirements.
• Use shielded twisted-pair cabling for RS485 communication to minimize electromagnetic interference (EMI).
• Ensure proper grounding of the communication cable shield at one end to prevent ground loops.
• Verify that all screw terminals are tightened to the appropriate torque to ensure reliable electrical contact.
• Maintain adequate clearance around the module to allow for proper heat dissipation and cable routing.

FAQ

What is the primary function of the TWDNOZ485T?

The TWDNOZ485T is an optional serial link adaptor that enables RS485 communication for Twido PLC systems, allowing the controller to interface with external devices or networks.

Is this module compatible with other PLC series?

This module is specifically engineered for the Schneider Electric Twido PLC range. It is not intended for use with other PLC families.
