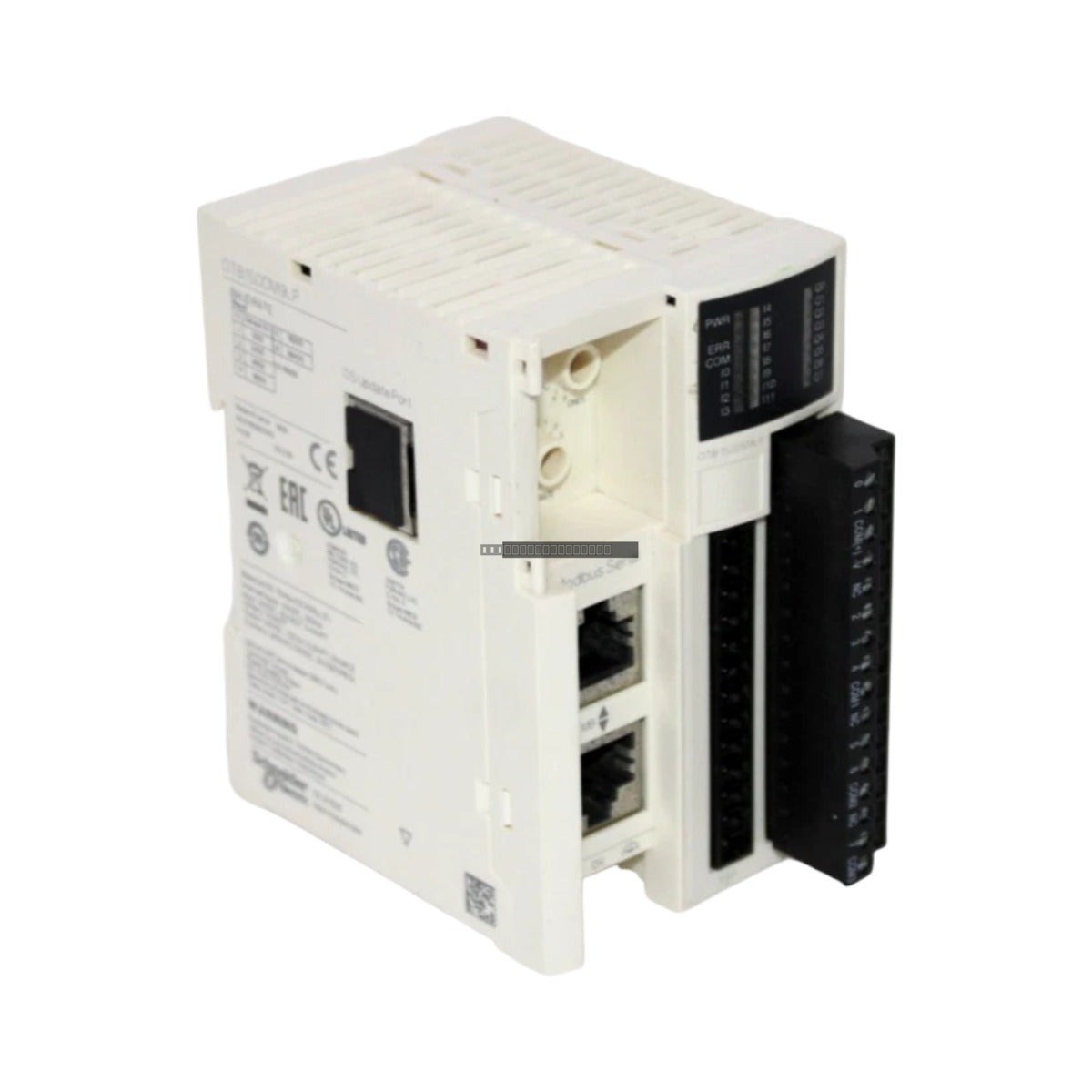

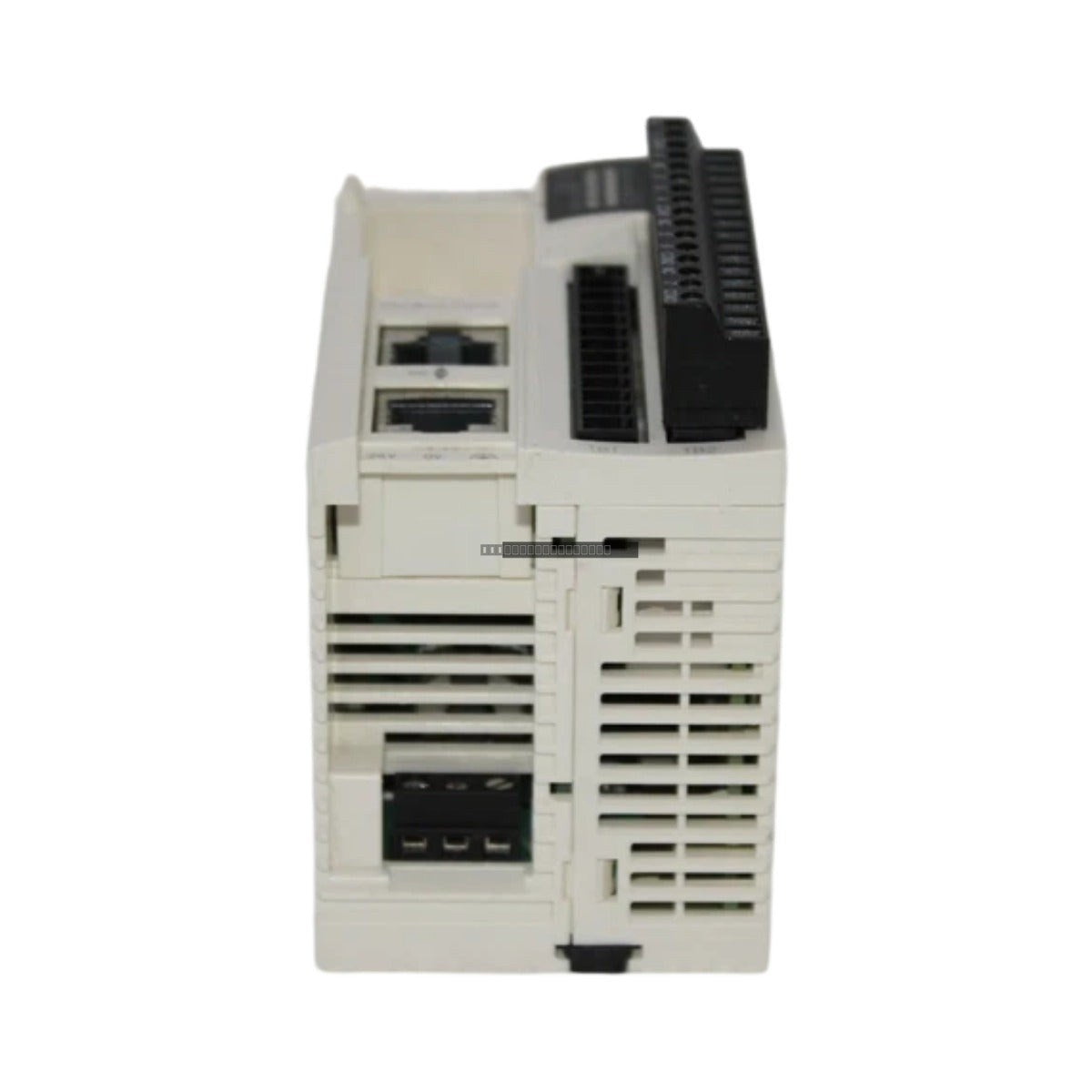

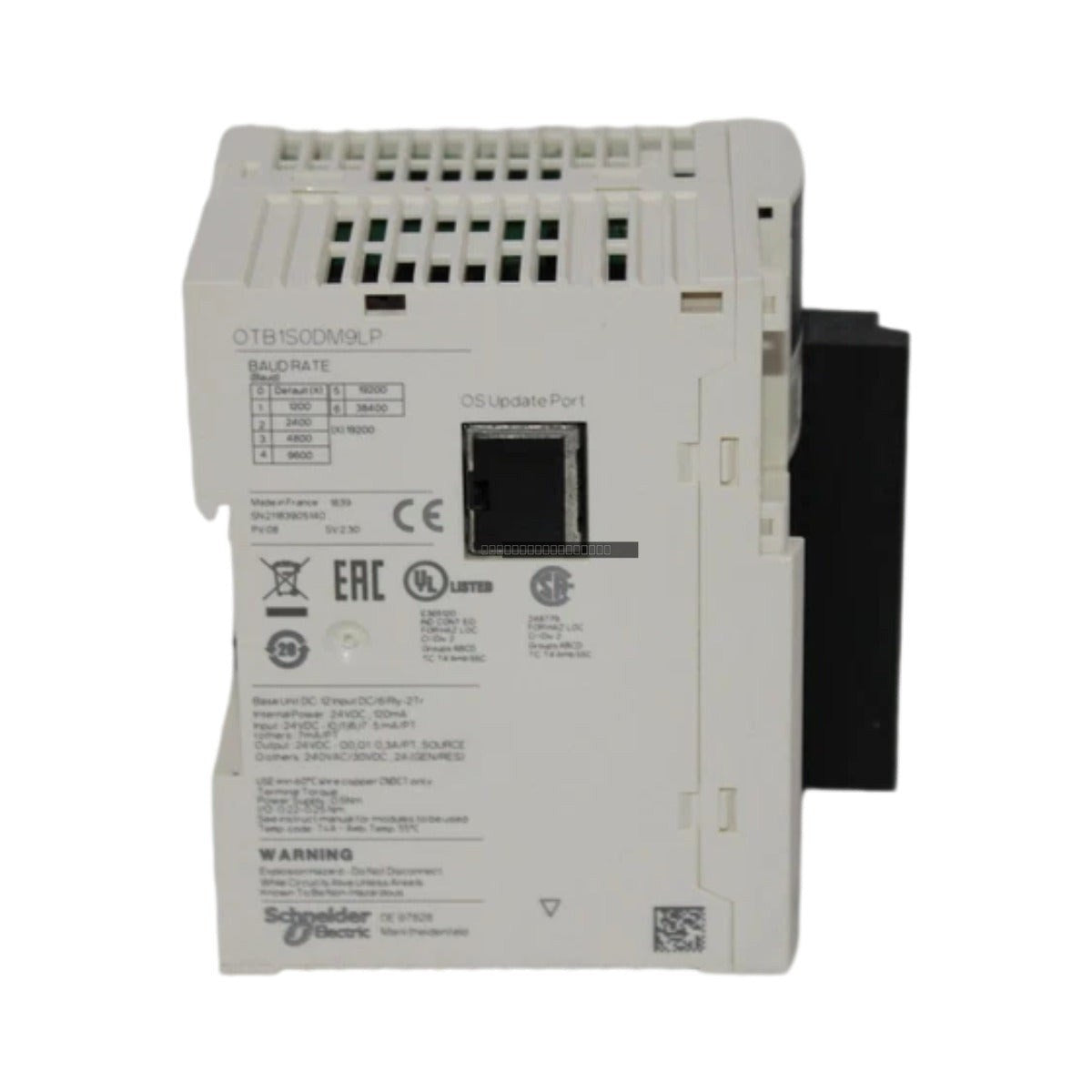

Schneider Electric OTB1S0DM9LP Modicon OTB Distributed I/O Module

Schneider Electric OTB1S0DM9LP Modicon OTB Distributed I/O Module

Product Overview

The Schneider Electric OTB1S0DM9LP is a compact distributed I/O module designed for the Modicon OTB platform. This unit serves as a robust interface for field signal aggregation, enabling decentralized...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: OTB1S0DM9LP
Proveedora: Schneider
tipo: Distributed I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Product Overview

The Schneider Electric OTB1S0DM9LP is a compact distributed I/O module designed for the Modicon OTB platform. This unit serves as a robust interface for field signal aggregation, enabling decentralized control in industrial environments such as power generation, mining, and petrochemical processing. By facilitating localized signal processing, the module reduces the need for extensive cabling, improves signal integrity, and enhances system reliability by minimizing the impact of potential central communication failures.

Features

  • Integrated Modbus RTU/ASCII communication interface for seamless integration with master controllers.
  • Supports high-speed local switching to minimize latency in control loops.
  • Compact footprint suitable for space-constrained control cabinets.
  • Designed for high-reliability operation in demanding industrial conditions.
  • Supports both DIN-rail and panel mounting for flexible installation.

Technical Specifications

Model OTB1S0DM9LP
Brand Schneider Electric
Power Consumption 7 W max at 24 VDC
Serial Interface RS-485 (RJ-45)
Discrete Inputs 12 x 24 VDC (sink/source)
Discrete Outputs 8 x Transistor (0.5 A), 2 x Relay (2 A)
Operating Temperature 0 to 55 deg C

Installation Guidelines

  • Ensure the module is installed in a clean, dry environment with adequate ventilation to maintain operating temperatures below 55 deg C.
  • Mount the unit on a standard 35 mm DIN-rail or secure it via the provided screw tabs for panel mounting.
  • Always disconnect power before performing any wiring or module replacement to prevent electrical damage.
  • Use shielded twisted-pair cabling for the RS-485 serial link to minimize EMI interference, keeping communication lines separate from high-voltage power cables.
  • Verify that the 24 VDC power supply is correctly polarized before energizing the module.
  • Ensure all I/O connections are tightened to the recommended torque to prevent intermittent contact.

FAQ

What is the primary function of the OTB1S0DM9LP?

This module acts as a distributed I/O interface that collects field signals and communicates them back to a master controller via Modbus, allowing for decentralized control and reduced cabling requirements.

Can this module be mounted on a standard DIN-rail?

Yes, the OTB1S0DM9LP is designed for standard 35 mm DIN-rail mounting or can be fixed to a panel using the integrated screw tabs.

What is the maximum distance for the serial communication link?

The module is designed for serial communication over distances ranging from 0 to 10 meters when using the standard RS-485 physical interface.
