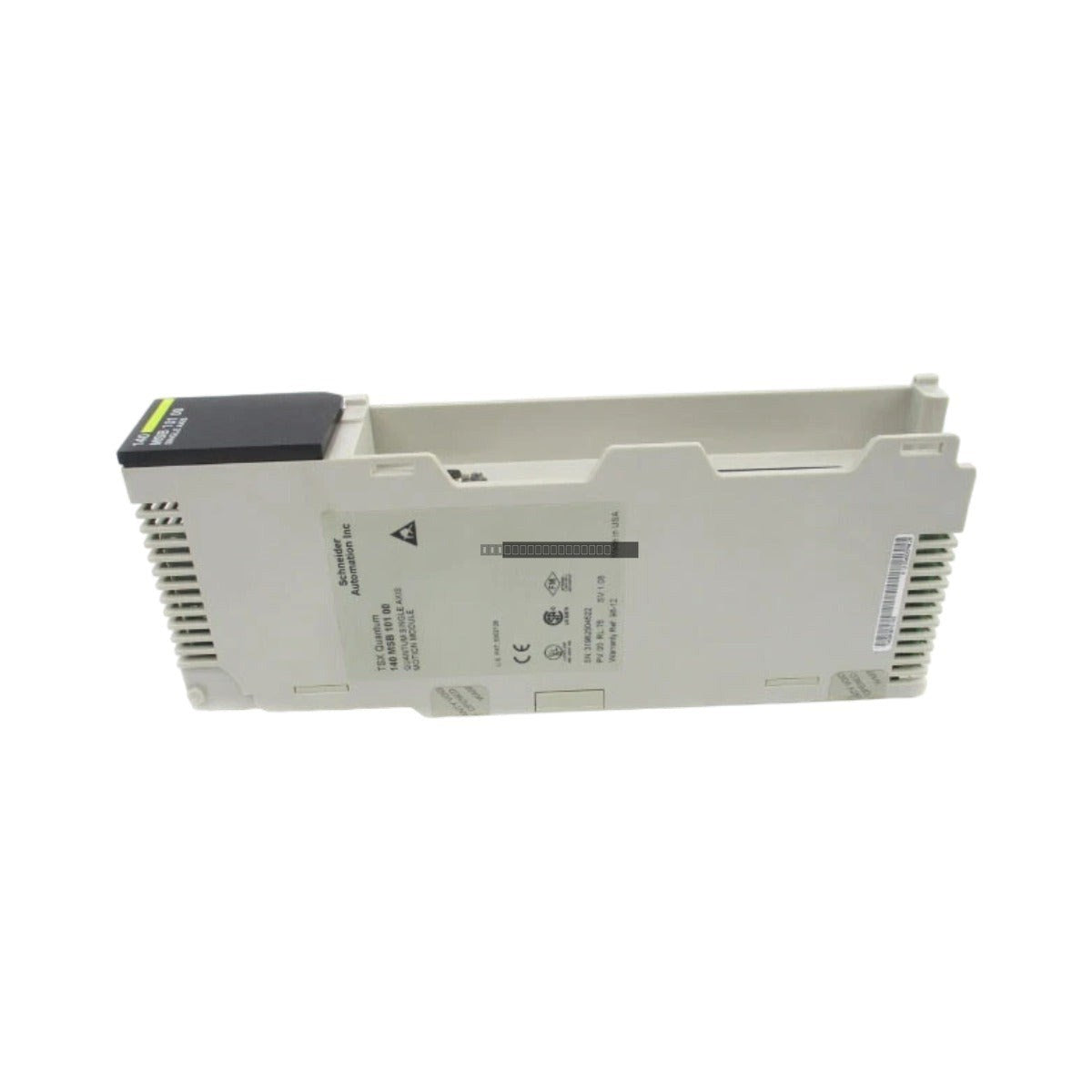

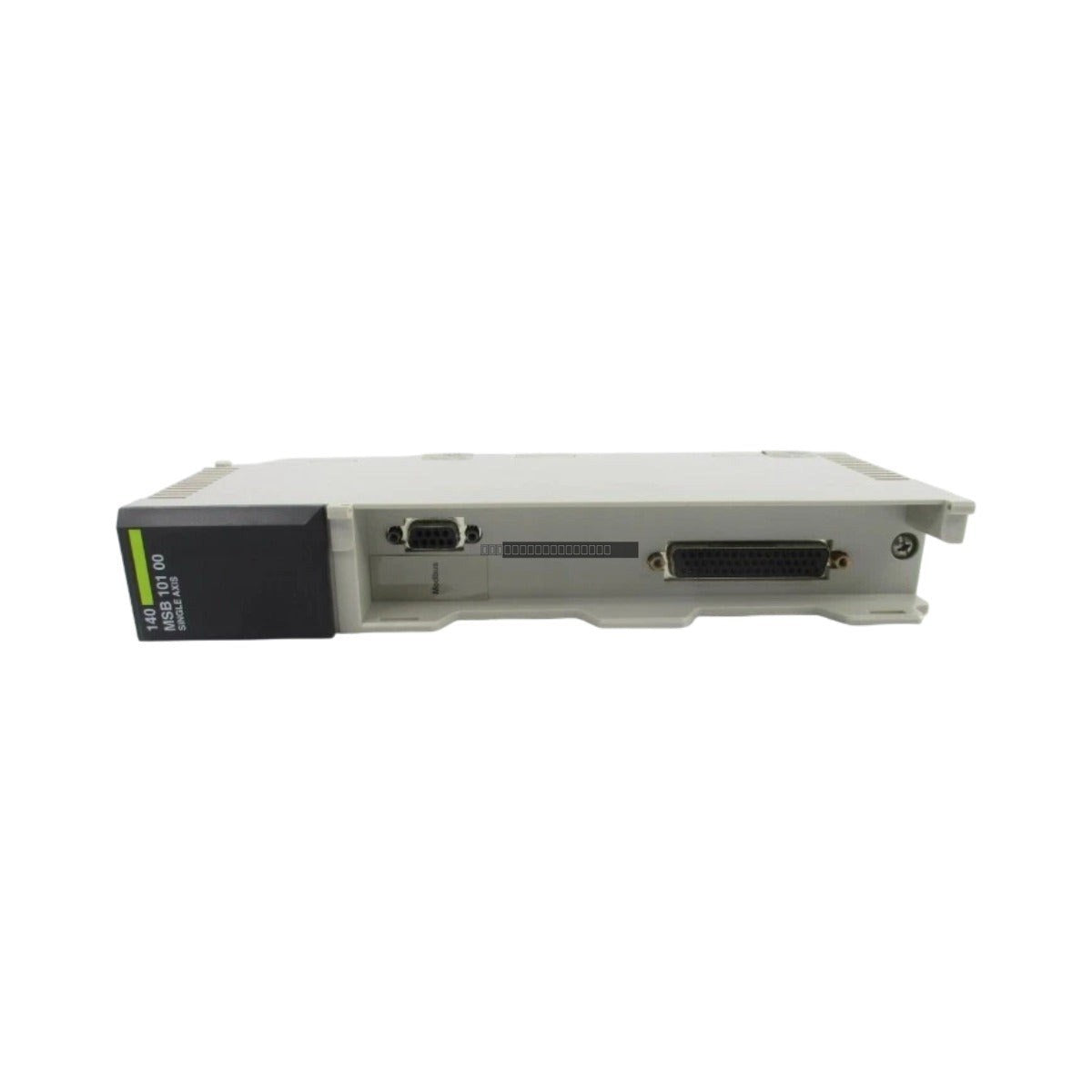

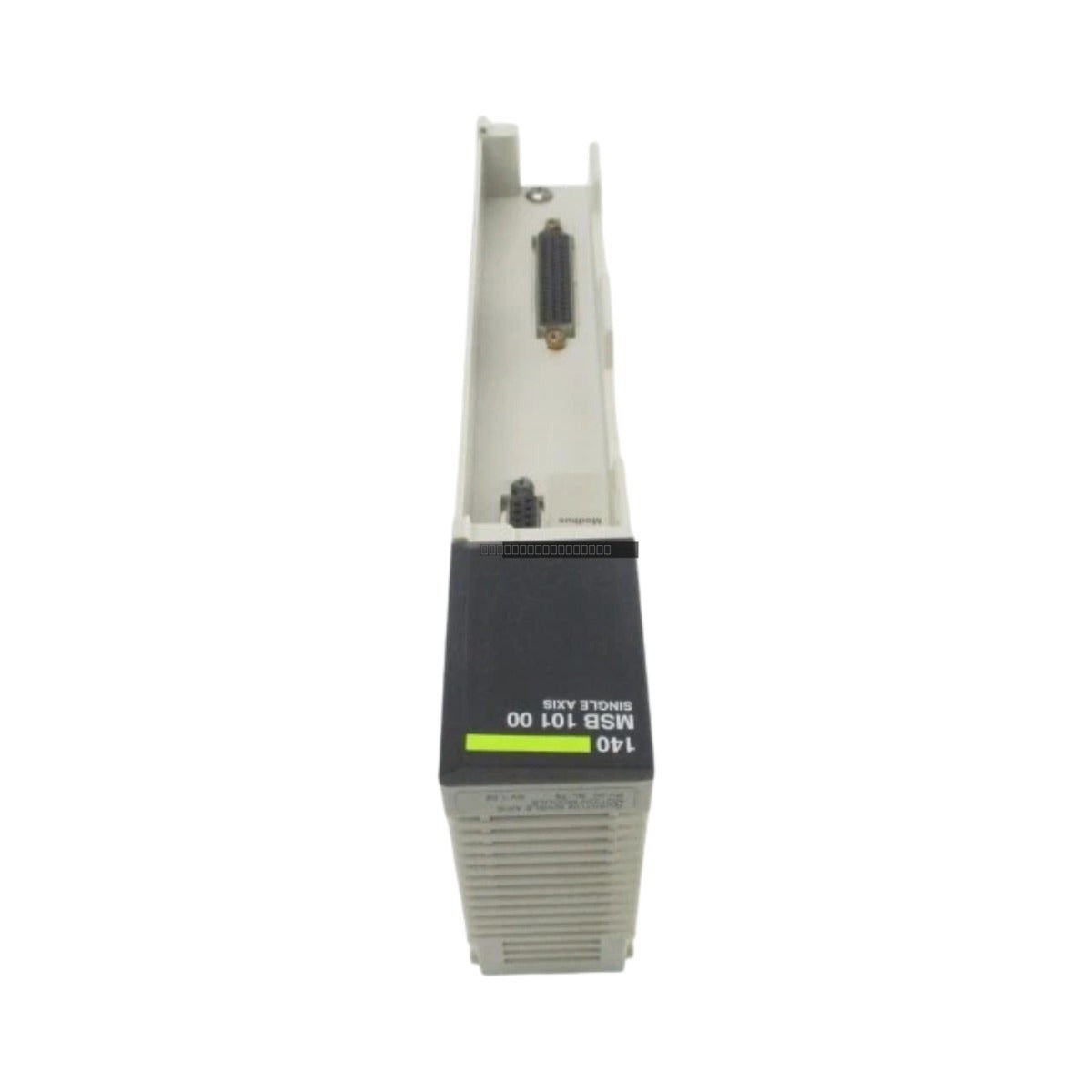

Schneider Electric 140MSB10100 Modicon Quantum Multi-Server S908 Module

Schneider Electric 140MSB10100 Modicon Quantum Multi-Server S908 Module

Product Overview

The Schneider Electric 140MSB10100 is a dedicated Multi-Server S908 module engineered for the Modicon Quantum automation architecture. This communication interface facilitates high-performance, deterministic data exchange across distributed I/O networks....

18 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: 140MSB10100
Proveedora: Schneider
tipo: Communication Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Product Overview

The Schneider Electric 140MSB10100 is a dedicated Multi-Server S908 module engineered for the Modicon Quantum automation architecture. This communication interface facilitates high-performance, deterministic data exchange across distributed I/O networks. It is specifically designed to handle complex communication tasks in industrial environments, such as power generation, petrochemical processing, and heavy mining, where reliable, collision-free data transmission between multiple server nodes is required to maintain system integrity.

Features

  • Optimized for deterministic S908 remote I/O network communication.
  • Supports multi-server database synchronization without increasing CPU scan cycle overhead.
  • Integrated galvanic isolation between the backplane and external line networks to protect sensitive internal logic.
  • Dual-channel media support for enhanced network redundancy and continuous health monitoring.
  • Robust hardware design suitable for demanding industrial temperature ranges.

Applications

This module is primarily utilized in large-scale distributed control systems where multiple controllers must access shared register data. It is ideal for applications requiring high-speed, low-latency communication across remote I/O drops, ensuring consistent network availability in continuous-process industries.

Technical Specifications

Model 140MSB10100
Brand Schneider Electric
Network Protocol S908 Remote I/O Multi-Server
Transmission Rate 1.544 Mbps
Network Ports 2 x F-type coaxial connectors
Maximum Nodes 32 drop addresses per branch
Power Consumption 1250 mA @ 5 VDC (from backplane)
Isolation 500 V DC channel-to-backplane
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C
Humidity 5 to 95% non-condensing

Installation Guidelines

  • Ensure the Modicon Quantum backplane is powered down before inserting or removing the module.
  • Use appropriate ESD protection when handling the module to prevent damage to internal circuitry.
  • Secure the module firmly into the designated rack slot to ensure proper backplane connection.
  • Maintain proper cable routing for coaxial lines to minimize EMI exposure and ensure signal integrity.
  • Verify that the F-type connectors are fully seated and free from debris before operation.
  • Ensure adequate ventilation in the cabinet to maintain ambient temperatures within the specified 0 to 60 deg C range.

FAQ

What is the primary function of the 140MSB10100?
This module acts as a high-speed communication interface for the Modicon Quantum platform, specifically managing S908 remote I/O data transfers between multiple server nodes.

How many nodes does this module support?
The 140MSB10100 supports up to 32 drop addresses per network branch.

Is the module galvanically isolated?
Yes, it features 500 V DC channel-to-backplane isolation to protect against electrical noise and voltage spikes.
