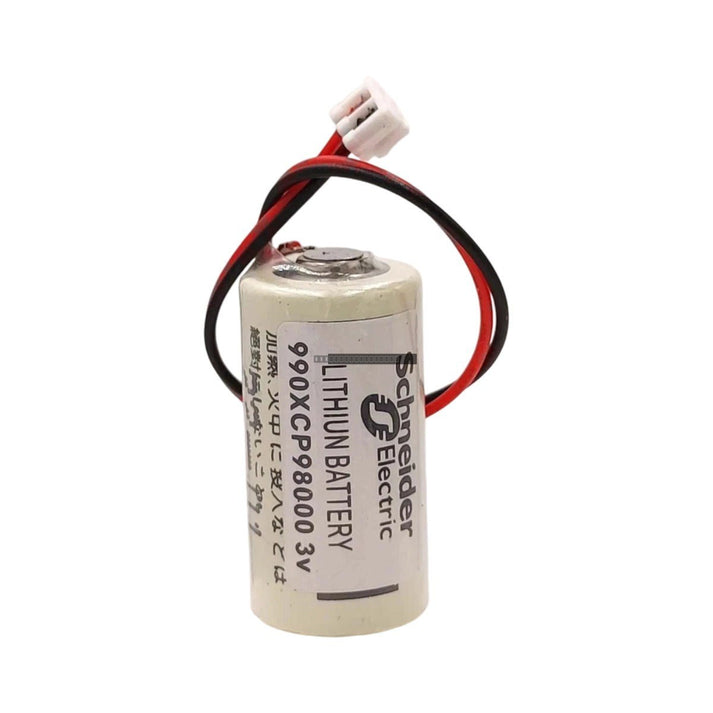

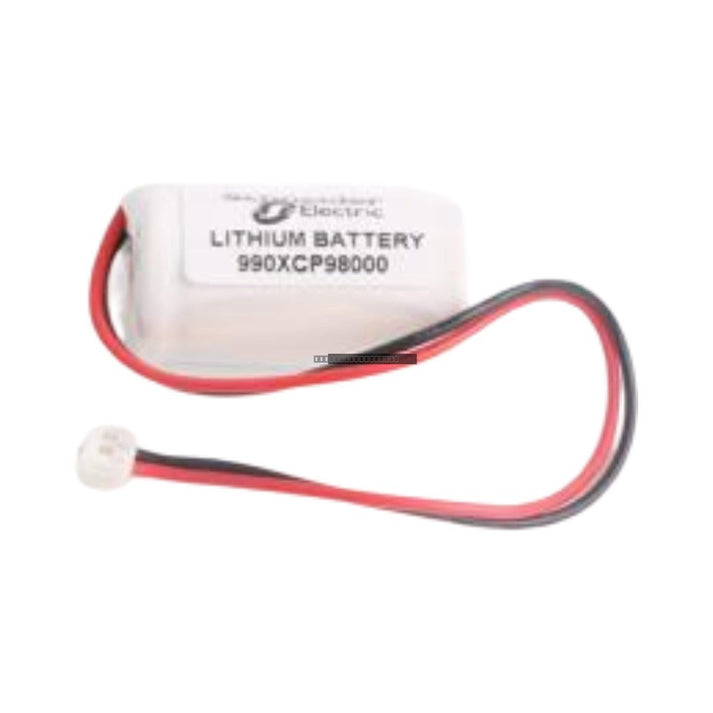

The Schneider Electric 990XCP98000 is a dedicated lithium backup battery designed specifically for the Modicon Quantum automation platform. This high-reliability power source provides a stable 3 V DC supply to the CPU, ensuring that volatile RAM contents, ladder logic programs, and real-time clock data remain intact during power outages. By preserving these critical memory segments, the battery prevents data loss and minimizes the need for time-consuming system reloads or configuration recovery after a power interruption.

Features

• Designed for seamless integration with Modicon Quantum CPU modules.
• Utilizes Lithium-Thionyl Chloride (Li-SOCl2) chemistry for high energy density and stability.
• Features a low self-discharge rate, supporting a service life of up to 10 years under standard operating conditions.
• Equipped with a factory-standard wire lead connector for quick and secure installation.
• Monitored by the CPU, with integrated support for BAT Alarm indicators to signal low voltage.
• Supports hot-swappable replacement procedures while the processor remains powered.

Applications

This battery is essential for industrial environments where the preservation of real-time data and program continuity is mission-critical. Typical applications include, but are not limited to, petrochemical processing, water and wastewater management, thermal power generation, and large-scale automated manufacturing infrastructure.

Technical Specifications

Installation Guidelines

• Ensure the CPU is powered on during replacement if performing a hot-swap to avoid memory loss.
• Handle with care to prevent short-circuiting the connector leads.
• Verify that the connector is firmly seated in the CPU battery socket.
• Check the front-facing BAT Alarm indicator on the CPU after installation to confirm the system recognizes the new cell.
• Store in a cool, dry environment away from direct heat sources to maximize shelf life.

FAQ

Does this battery require special handling during disposal?

Yes, as a lithium-based battery, it should be disposed of in accordance with local environmental regulations regarding hazardous waste and lithium battery recycling.

Can this battery be used in other Schneider PLC series?

This specific model is engineered for the Modicon Quantum platform. It is not recommended for use in other series unless explicitly specified in the hardware documentation for that specific PLC range.
