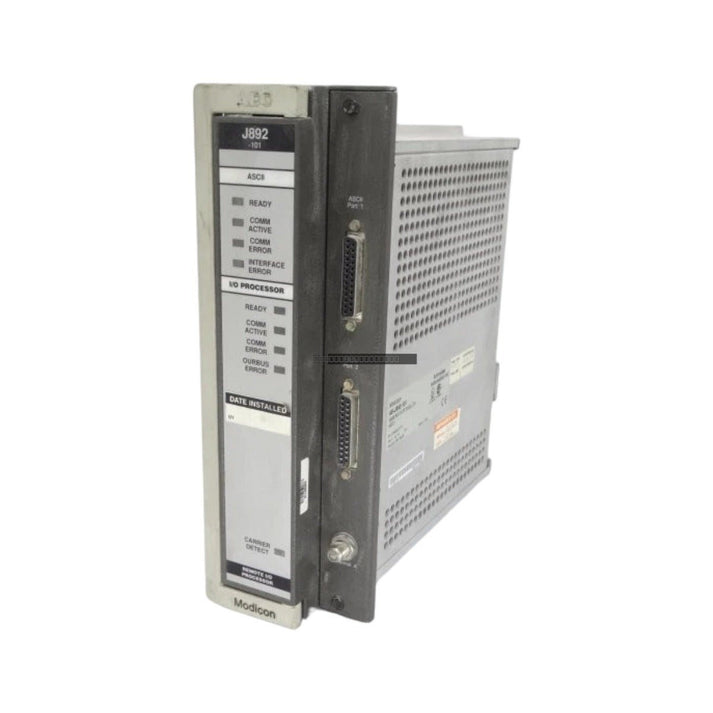

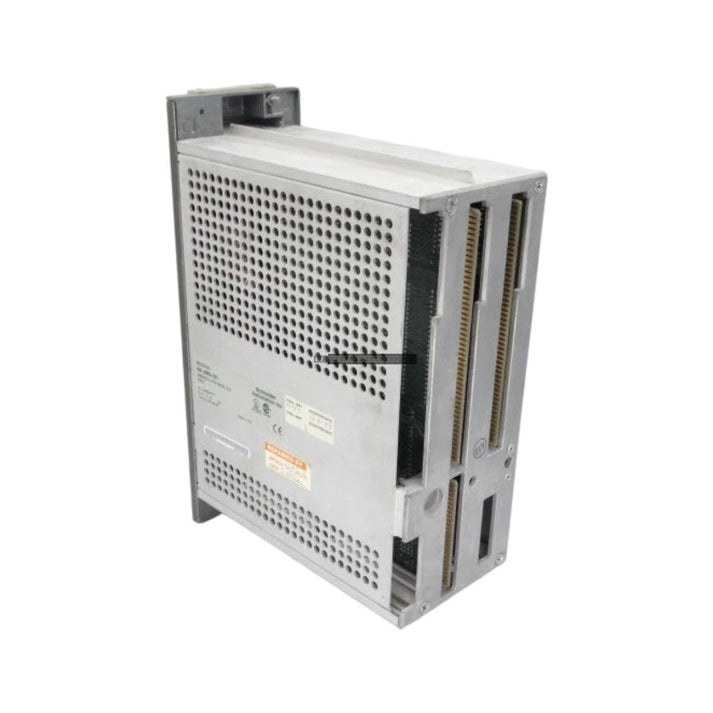

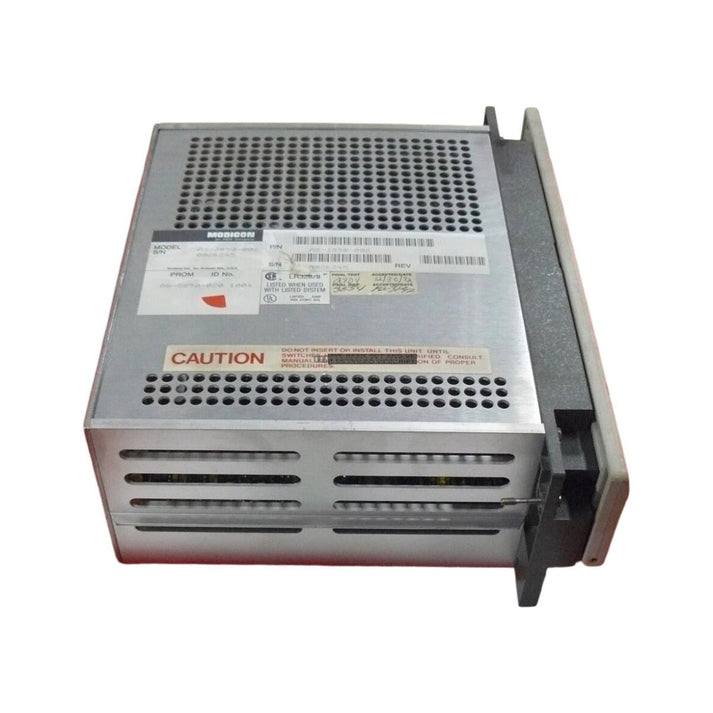

Schneider Modicon Quantum ASJ890002 Remote I/O Adapter Module

Schneider Modicon Quantum ASJ890002 Remote I/O Adapter Module

Description

The ASJ890002 interface module is an essential remote I/O adapter designed for the Schneider Electric Modicon Quantum automation platform. This module facilitates reliable, deterministic communication between remote I/O drops and...

16 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: ASJ890002
Proveedora: Schneider
tipo: Remote I/O Adapter Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The ASJ890002 interface module is an essential remote I/O adapter designed for the Schneider Electric Modicon Quantum automation platform. This module facilitates reliable, deterministic communication between remote I/O drops and the central controller, making it well-suited for demanding industrial environments such as power generation, chemical processing, and heavy mining. By providing robust data link management and rapid fault isolation, the module ensures continuous operation and minimizes unplanned system downtime in distributed control architectures.

Features

  • Supports dual-channel redundancy for high-availability network configurations.
  • Integrated physical layer transceivers optimized for high-speed token-pass bus networks.
  • Dedicated internal logic for packet encapsulation, error detection, and independent address routing.
  • Front-panel LED indicators for real-time diagnostics of network activity, channel health, and internal status.
  • Designed for seamless integration with standard coaxial media in Modbus Plus / Remote I/O environments.

Applications

This module is typically deployed in large-scale distributed control systems where remote I/O drops must communicate reliably with a primary PLC over extended distances. It is commonly found in critical infrastructure applications requiring high fault tolerance and deterministic data exchange.

Technical Specifications

Model ASJ890002
Brand Schneider Electric
Network Protocol Modbus Plus / Remote I/O
Redundancy Dual Channel (A and B)
Power Requirements 5 VDC, 750 mA (via backplane)
Cable Compatibility RG-6 Coaxial
Isolation Voltage 500 VDC (channel-to-backplane)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 85 deg C

Installation Guidelines

  • Ensure the system power is completely disconnected before inserting or removing the module from the backplane.
  • Verify that the module is fully seated in the Quantum rack slot to ensure reliable backplane connection.
  • Use shielded RG-6 coaxial cabling and ensure proper grounding to minimize EMI/RFI interference.
  • Maintain adequate clearance around the module for ventilation to prevent overheating during operation.
  • Handle the module using standard ESD (Electrostatic Discharge) precautions to protect internal circuitry.

FAQ

What is the primary function of the ASJ890002?

The ASJ890002 acts as a remote I/O adapter for the Modicon Quantum system, enabling the controller to communicate with remote I/O drops over a Modbus Plus network.

Does this module support redundant cabling?

Yes, the module features a dual-channel design, allowing for redundant cable configurations to maintain network integrity in the event of a single cable failure.

What power supply does this module require?

The module is powered directly through the Quantum backplane bus, requiring 5 VDC at 750 mA.
