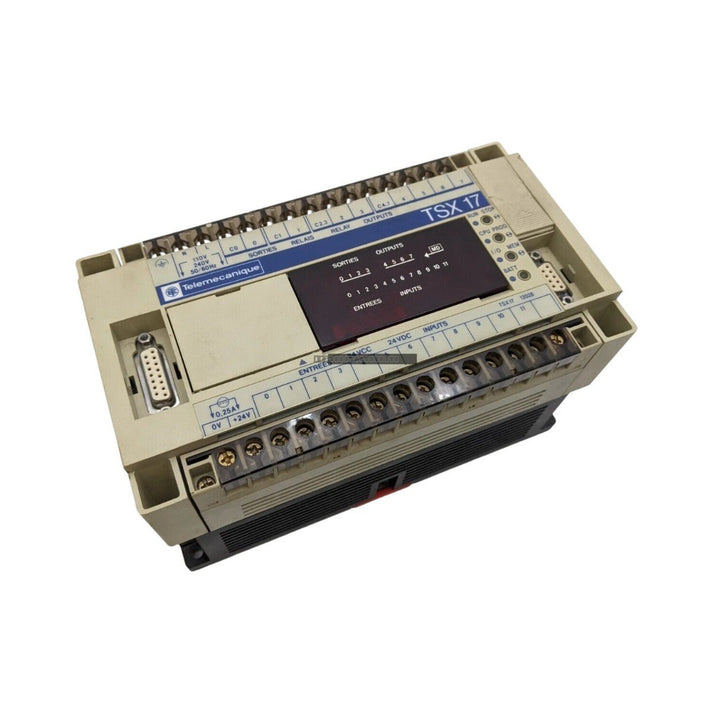

Schneider Telemecanique TSX1712028 Programmable Logic Controller

Schneider Telemecanique TSX1712028 Programmable Logic Controller

Product Overview

The Schneider Telemecanique TSX1712028 is a compact, self-contained programmable logic controller (PLC) designed for the TSX 17 series platform. This unit integrates processing capabilities with fixed onboard I/O, providing...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: TSX1712028
Proveedora: Schneider
tipo: Programmable Logic Controller
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Product Overview

The Schneider Telemecanique TSX1712028 is a compact, self-contained programmable logic controller (PLC) designed for the TSX 17 series platform. This unit integrates processing capabilities with fixed onboard I/O, providing a robust solution for localized automation tasks in industrial environments including power plant cooling systems, mining conveyor controls, and automated pumping stations. By utilizing an all-in-one architecture, the TSX1712028 reduces the need for complex external bus cabling, thereby increasing system reliability and simplifying maintenance in critical control loops.

Features

  • Integrated 20-point I/O configuration: 12 discrete inputs and 8 electromechanical relay outputs.
  • High-speed logic execution: 3.5 microseconds per Boolean instruction for responsive real-time control.
  • Integrated power supply: Operates directly from 100-240 V AC line power.
  • Rugged relay outputs: Supports direct switching of AC or DC loads without the need for interposing relays.
  • Optical isolation: Discrete inputs are internally isolated to protect the internal data bus from field-side voltage transients.
  • Real-time diagnostics: Front-panel LED indicators provide immediate status monitoring for inputs, outputs, and system health.
  • Non-volatile memory: Internal storage ensures instruction set retention during power interruptions.

Applications

This controller is suited for standalone machine control or as a distributed controller within larger legacy Modicon/Telemecanique automation architectures. Its compact design makes it ideal for space-constrained control panels in industrial infrastructure, small-scale process automation, and auxiliary equipment monitoring.

Technical Specifications

Model TSX1712028
Brand Schneider Electric / Telemecanique
Supply Voltage 100 to 240 V AC (50/60 Hz)
Power Consumption 30 VA max
Discrete Inputs 12 Channels (24 V DC)
Relay Outputs 8 Channels (Normally Open)
Max Switching Voltage 240 V AC / 30 V DC
Max Relay Current 2.0 A per point
Operating Temperature 0 to 55 deg C
Storage Temperature -25 to 70 deg C

Installation Guidelines

  • Ensure the controller is mounted in a well-ventilated enclosure to maintain ambient temperatures within the 0-55 deg C range.
  • Always disconnect main power before performing any wiring, module insertion, or removal.
  • Use shielded cables for communication and high-speed input lines to minimize electromagnetic interference (EMI).
  • Verify that input voltage polarity matches the specific sink/source configuration of the input block.
  • Ground the chassis properly to a common industrial earth point to ensure noise immunity and safety.
  • Keep high-voltage power lines and low-voltage signal lines in separate cable trays to prevent inductive coupling.

FAQ

Is the TSX1712028 compatible with modern programming software?
The TSX 17 series is a legacy platform. Programming typically requires specific legacy Telemecanique software and the appropriate serial communication hardware interface.

Does this unit require an external power supply for the inputs?
Yes, the 24 V DC discrete inputs require an external power source to function, ensuring electrical isolation from the AC supply.
