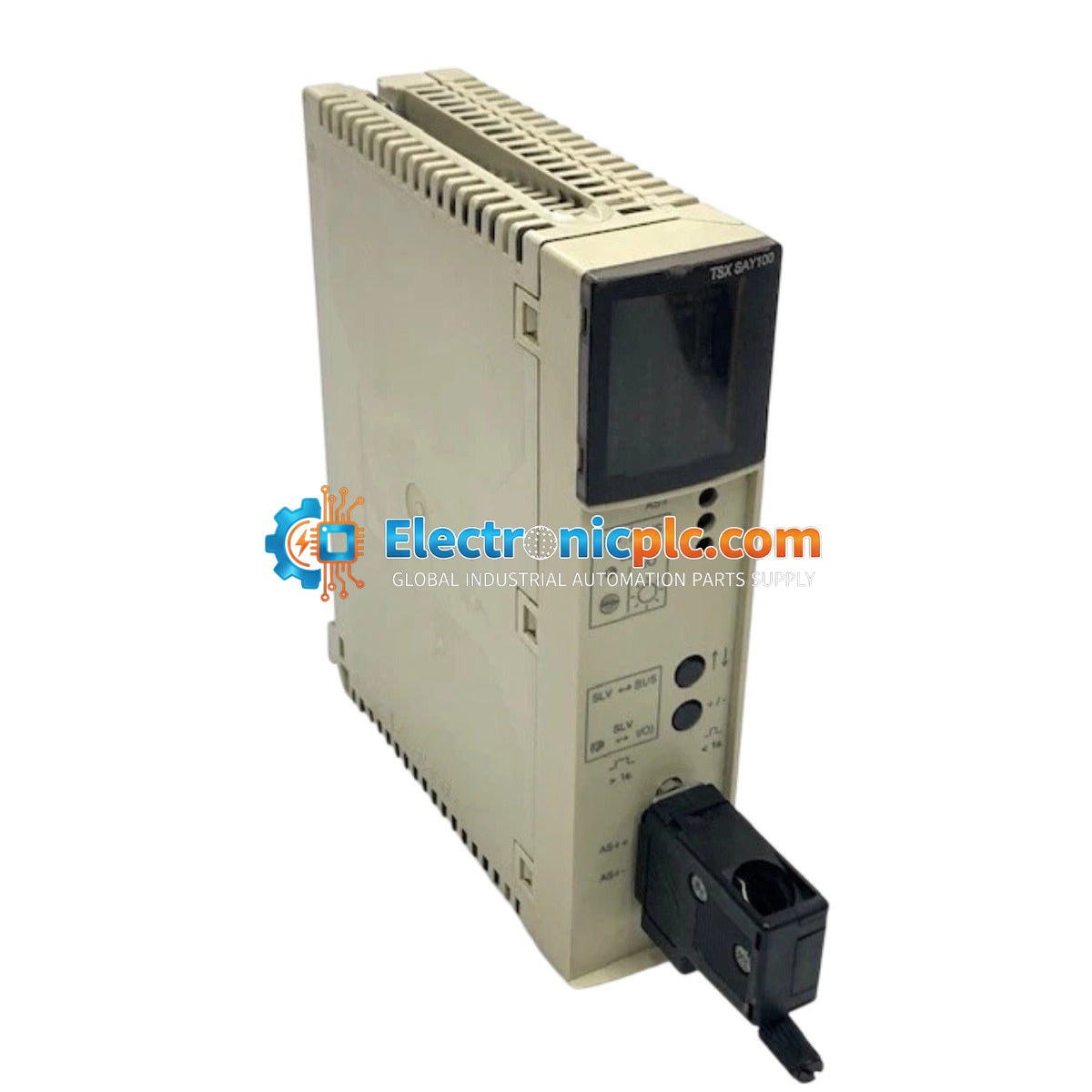

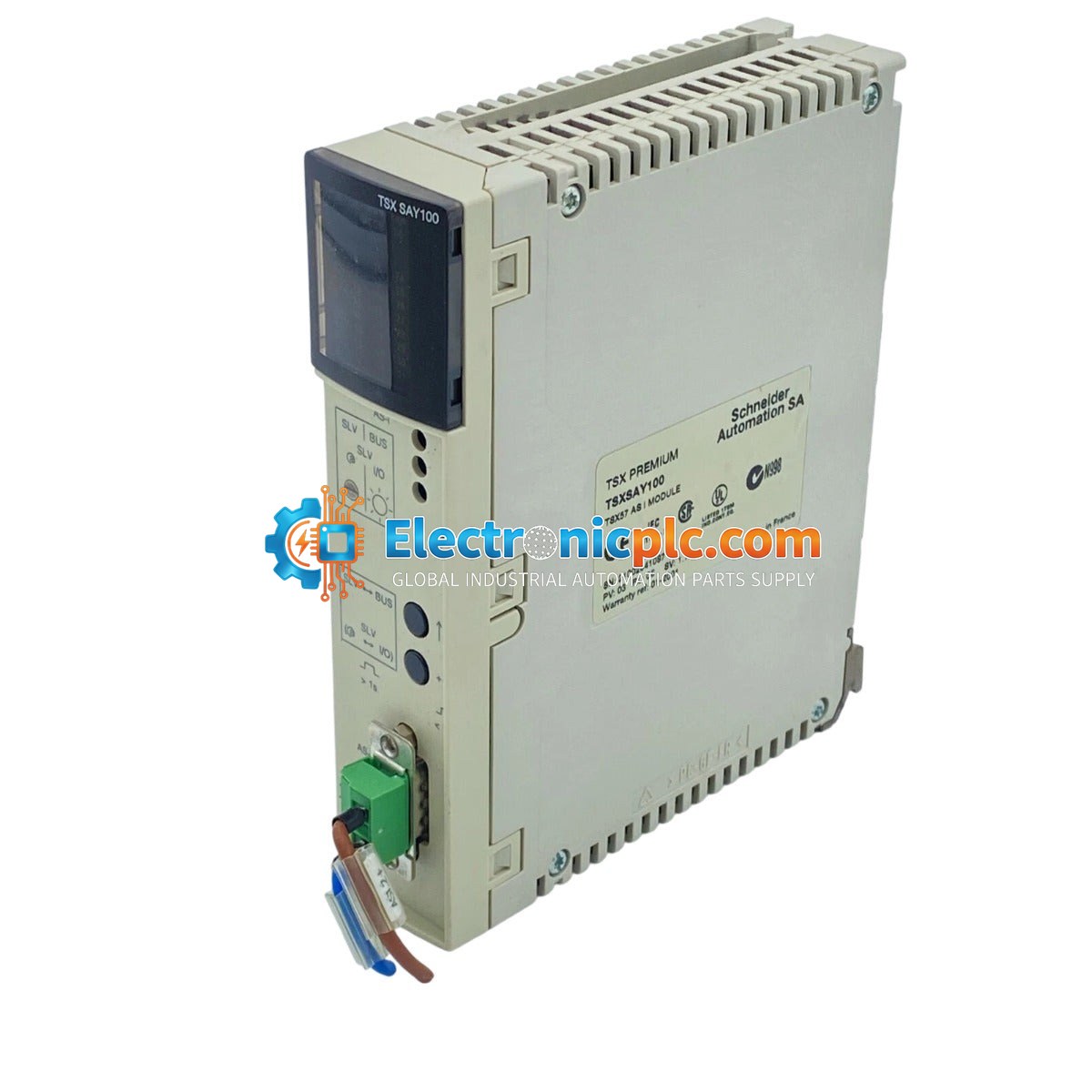

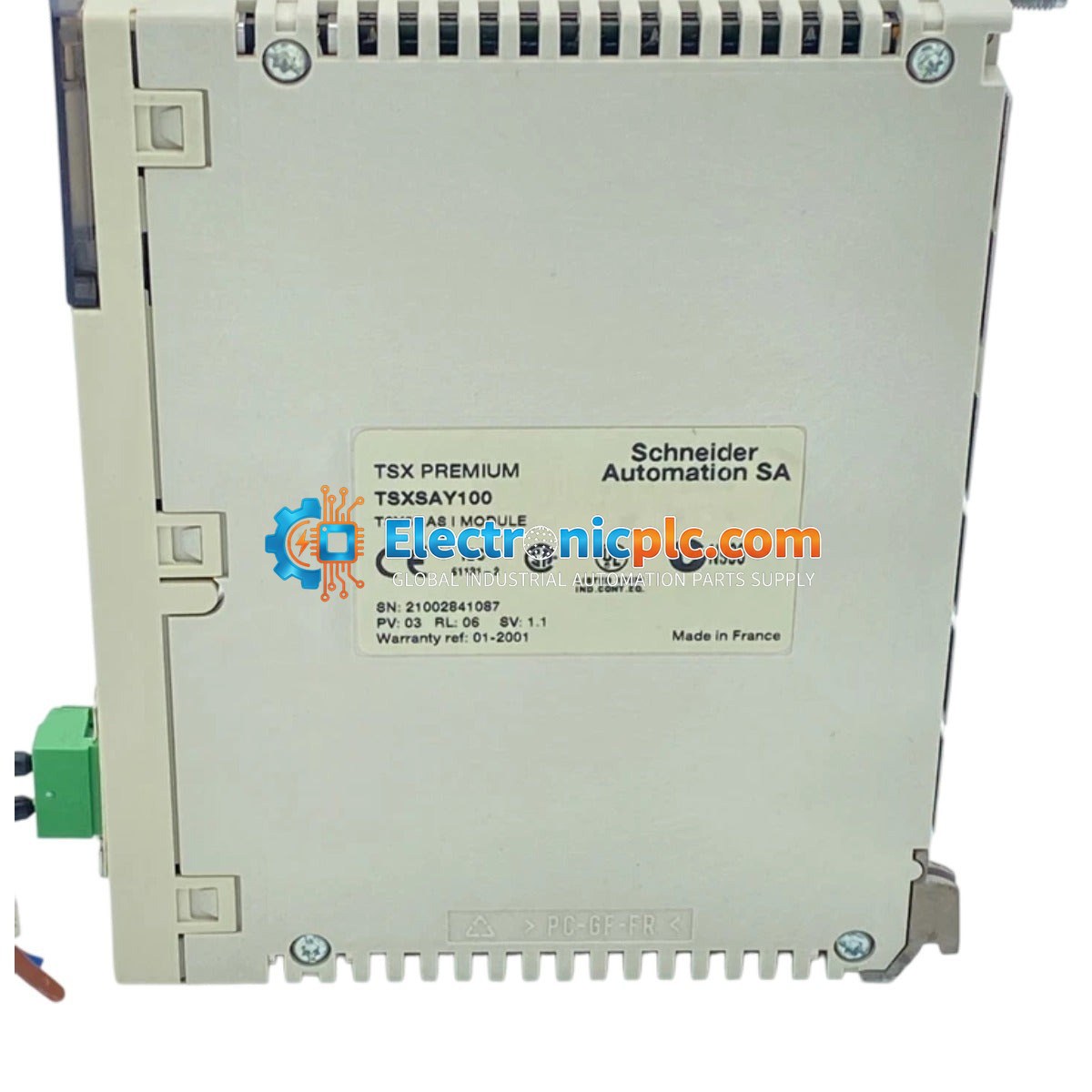

Schneider TSXSAY100 Modicon TSX BUS Coupler Module

Schneider TSXSAY100 Modicon TSX BUS Coupler Module

Description

The Schneider TSXSAY100 is a high-performance BUS Coupler Module belonging to the Modicon TSX series. This module is engineered to facilitate reliable communication between industrial control systems and various field...

17 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: TSXSAY100
Proveedora: Schneider
tipo: BUS Coupler Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Schneider TSXSAY100 is a high-performance BUS Coupler Module belonging to the Modicon TSX series. This module is engineered to facilitate reliable communication between industrial control systems and various field devices. It acts as a critical interface component, ensuring seamless data exchange and synchronization across complex automation architectures.

Features

  • Reliable Data Transfer: Provides stable and consistent communication for demanding industrial integration tasks.
  • Protocol Versatility: Supports multiple industrial protocols, including Profibus DP, Modbus, and CANopen, for broad system compatibility.
  • High-Speed Communication: Optimized for fast data transfer rates to support real-time, low-latency control applications.
  • Compact Form Factor: Designed for space-efficient installation within standard control cabinets and system racks.
  • Rugged Construction: Built to operate reliably in harsh industrial environments with a wide operating temperature range.

Technical Specifications

Manufacturer Schneider Electric
Model TSXSAY100
Product Series Modicon TSX
Number of Ports 1
Supported Protocols Profibus DP, Modbus, CANopen
Interface Type Ethernet, RS232, RS485
Power Supply 24V DC
Operating Temperature -10 degC to 60 degC
Storage Temperature -40 degC to 85 degC
Mounting Type DIN Rail Mount
Weight 0.4 kg

Installation Guidelines

  • Mounting: Designed for standard DIN rail mounting. Ensure the module is securely snapped into place to prevent vibration-related disconnections.
  • Power Supply: Verify that the input power is a stable 24V DC source before connecting. Ensure correct polarity to avoid damage to internal circuitry.
  • Grounding: Follow standard industrial grounding practices for the DIN rail and the cabinet to minimize EMI interference.
  • Handling: Observe ESD (Electrostatic Discharge) precautions when handling the module. Avoid touching the connector pins or internal components.
  • Environment: Ensure adequate ventilation around the module to maintain operating temperatures within the specified -10 degC to 60 degC range.

FAQ

What is the primary function of the TSXSAY100?

The TSXSAY100 serves as a BUS coupler module within the Modicon TSX series, enabling communication between the controller and various field devices using protocols like Modbus, Profibus DP, or CANopen.

Can this module be used in high-temperature environments?

The module is rated for an operating temperature range of -10 degC to 60 degC. Please ensure your cabinet cooling systems maintain the ambient temperature within these limits for optimal performance.
