Description

The Schneider TSXTLYEX is a dedicated line terminator designed for the Modicon Premium automation platform. This component is essential for maintaining signal integrity at the end of the rack bus, ensuring a stable and reliable communication environment for the system. The unit is supplied as a set of two connectors, specifically configured for rack-end termination.

Features

• Designed for use with Modicon Premium TSXRKY..EX rack units.
• Ensures proper bus termination to prevent signal reflection.

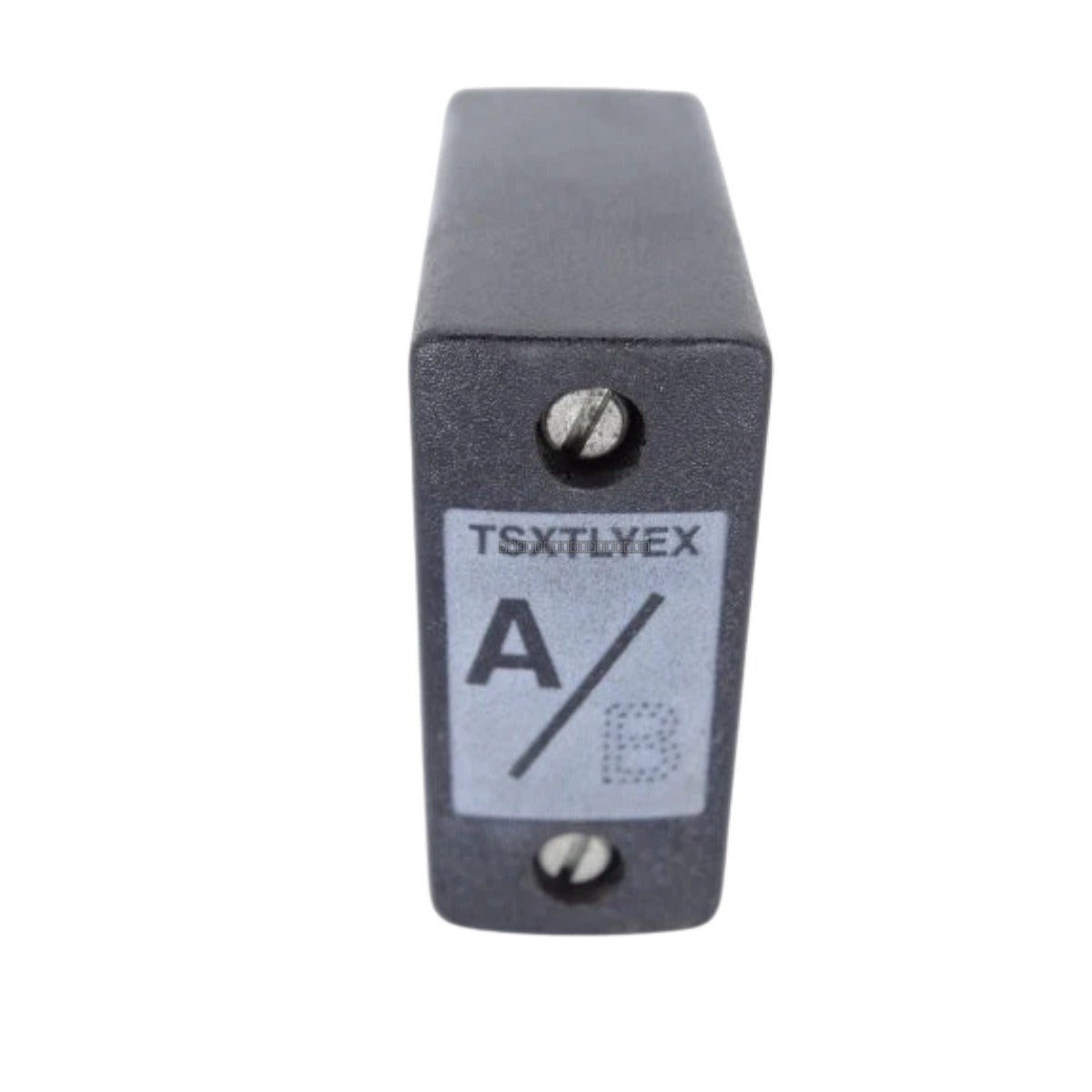

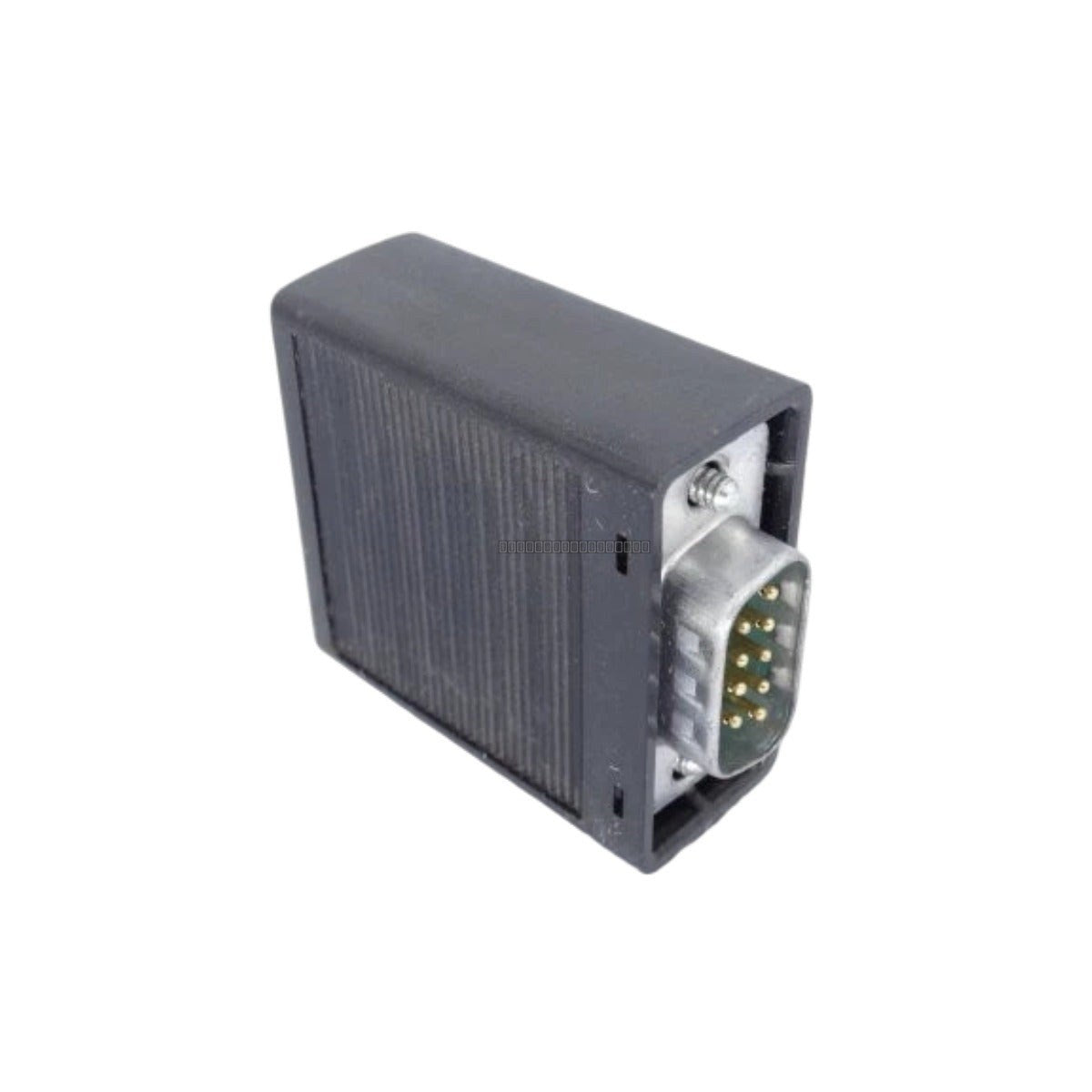

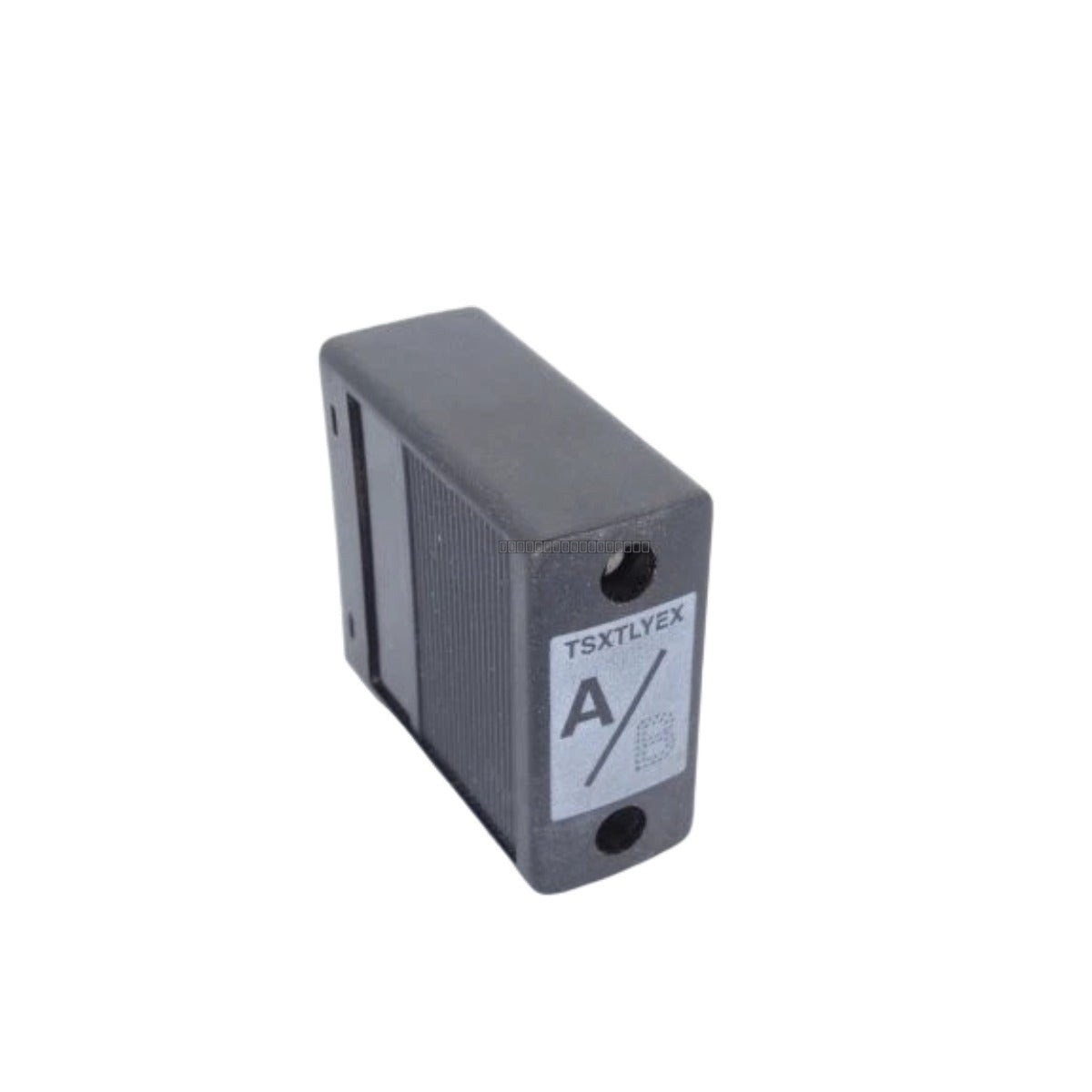

• Includes two SUB-D 9 connectors, clearly labeled A and B for correct installation.
• Compact and lightweight design for easy integration into existing rack configurations.

Technical Specifications

Installation Guidelines

• Ensure the PLC system power is disconnected before installing or removing bus terminators to prevent electrical damage.
• Verify that the rack is a compatible TSXRKY..EX model before attempting installation.
• Insert the connectors into the designated rack-end ports, ensuring the A and B labels match the corresponding system requirements.
• Handle with care to avoid bending the pins on the SUB-D 9 connectors.
• Maintain a clean, dry environment free from excessive vibration or extreme temperatures to ensure long-term reliability.

FAQ

What is the primary function of the TSXTLYEX?

The TSXTLYEX acts as a line terminator for the Modicon Premium rack bus. It is required at the end of the bus to prevent signal reflections, which can cause communication errors or system instability.

What is included in the package?

The package contains a set of two SUB-D 9 connectors, one labeled A and one labeled B, specifically designed for the TSXRKY..EX rack series.
