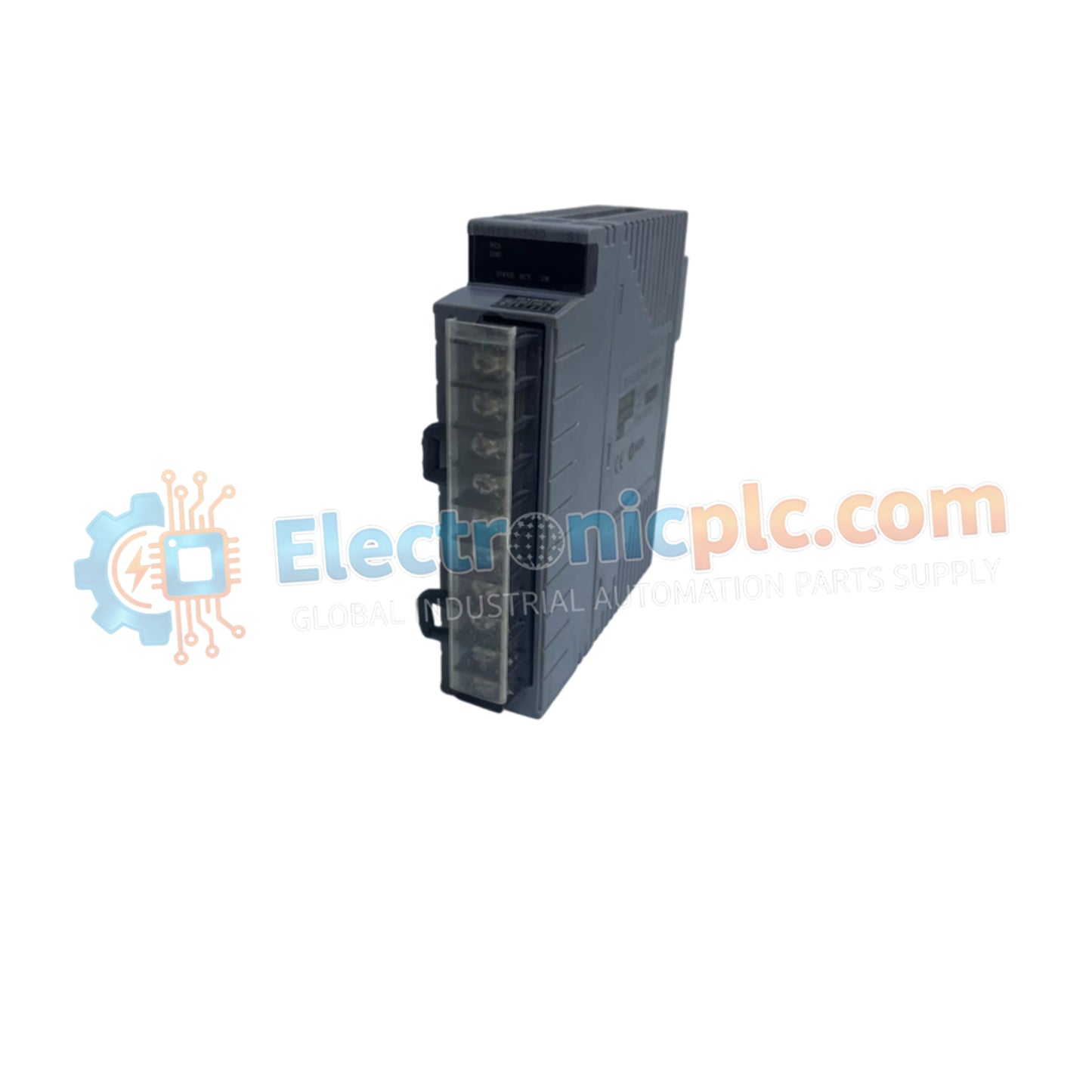

Serial Communication Module YOKOGAWA ALR121

Serial Communication Module YOKOGAWA ALR121

Configured for serial subsystem data exchange in CENTUM and ProSafe-RS control platforms, the YOKOGAWA ALR121 (ALR121 Communication Module) provides direct physical/electrical execution. This hardware component serves as a dual-port serial...

18 la gente está viendo esto ahora mismo

Disponibilidad: En existencias

SKU: ALR121
Proveedora: Yokogawa
tipo: Serial Communication Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Configured for serial subsystem data exchange in CENTUM and ProSafe-RS control platforms, the YOKOGAWA ALR121 (ALR121 Communication Module) provides direct physical/electrical execution. This hardware component serves as a dual-port serial gateway utilized to execute Modbus (RTU/ASCII) and general subsystem communication across distributed control system platforms.

Hardware Specifications

Parameter Specification
Model ALR121
Brand YOKOGAWA
Origin JAPAN
Weight 0.3 kg
Dimensions 2.2 cm x 12.4 cm x 12.6 cm
Operating Temp -20 to 70 deg C
Power Consumption 0.5 A (at 5 VDC)
Interface Type RS-422 / RS-485 (4-wire)
Transmission Speed 1200 to 38400 bps
Connection Mode Half-duplex

PLC/DCS Integration and Communication Characteristics

The ALR121 module is engineered to provide deterministic serial data bridging between the field control station (FCS) or safety control station (SCS) and external subsystems. It supports both point-to-point (RS-422) and multipoint (RS-485) configurations, allowing for integration with diverse industrial devices, including PLCs and third-party instrumentation. The module manages frame timing with a fixed 1 ms lag after transmission to ensure bus stability, and it supports dual-redundant communication configurations when paired with an adjacent module in the I/O chassis to maintain high availability in critical process loops.

Frequently Asked Questions

Q: Can the two ports on the ALR121 module be configured with different communication functions?

A: No. The two serial ports on a single ALR121 module must be configured with identical communication functions and parameters.

Q: Is this module capable of performing hot-swaps during system operation?

A: Yes, hot-swap replacement is supported when the module is installed in a redundant configuration; however, standard safety protocols should be followed to isolate the communication link before physical removal.

Field Installation Guidelines

  • Ensure the control station is powered down before seating the ALR121 into the base plate to prevent electrical short-circuits on the backplane bus.
  • Use shielded, twisted-pair cabling for all serial runs; terminate cable shields only at the specified system grounding points to avoid ground loops.
  • For RS-485 multipoint networks, ensure that 120 ohm termination resistors are installed at both physical ends of the transmission line to suppress signal reflections.
  • Verify that the transmission distance does not exceed 1200 m for RS-485 segments to maintain signal integrity and meet data throughput specifications.
  • Confirm that the module locking mechanism is fully engaged after installation to ensure low-resistance contact with the backplane connectors.
