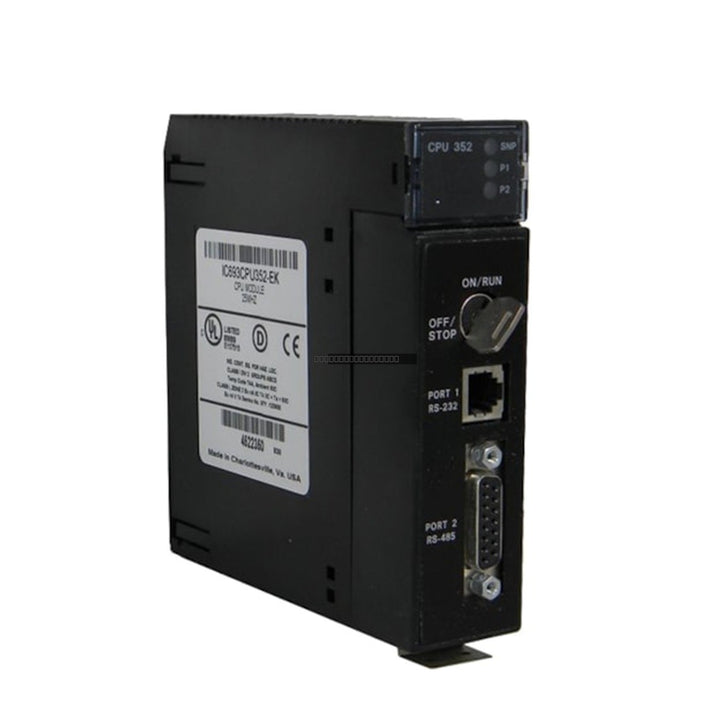

General Electric IC693CPU352 Series 90-30 PLC CPU Module

General Electric IC693CPU352 Series 90-30 PLC CPU Module

Product Overview

The GE Fanuc IC693CPU352 is a high-performance single-slot CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) system. Equipped with an 80386EX processor operating at 25 MHz,...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 1

SKU: IC693CPU352
Proveedora: General Electric
tipo: PLC CPU Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Product Overview

The GE Fanuc IC693CPU352 is a high-performance single-slot CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) system. Equipped with an 80386EX processor operating at 25 MHz, this module provides 240 KB of configurable user memory. It is engineered for demanding industrial applications requiring hardware-based floating-point math capabilities and extensive I/O capacity.

Features

  • Processing Power: Built-in hardware floating-point co-processor for complex mathematical calculations.
  • Memory: 240 KB of user-configurable memory for robust program storage.
  • Communication: Features three total serial ports, including an RJ45 port (Port 1), a 9-pin D-sub connector (Port 2), and a power supply connector port supporting SNP and SNP-X protocols.
  • I/O Scalability: Supports up to 2048 discrete inputs and 2048 discrete outputs, with the ability to manage up to 7 expansion or remote I/O baseplates.
  • Operational Control: Integrated physical keyswitch for selecting Run/Stop modes and enabling/disabling memory protection.
  • Data Security: Removable 3.6V lithium battery for long-term retention of user programs and register data.

Technical Specifications

Model IC693CPU352
Processor 80386EX (25 MHz)
User Memory 240 KB
Discrete I/O 2048 Inputs / 2048 Outputs
Analog I/O 32,640 Words (Max)
Scan Rate 0.22 ms per 1K Boolean logic
Operating Temp 0 to 60 degC
Power Requirements 890 mA at 5VDC

Installation Guidelines

  • Slot Placement: This module must be installed in the CPU slot of the primary 90-30 baseplate.
  • Handling: Always observe ESD (Electrostatic Discharge) precautions when handling the module to prevent damage to internal circuitry.
  • Grounding: Utilize the shield ground connector located on the bottom of the module to mitigate electromagnetic interference (EMI) and electrical noise in high-interference environments.
  • Battery Installation: Ensure the lithium battery is correctly seated to maintain data integrity during power cycles.
  • Safety: Always disconnect power from the baseplate before inserting or removing the CPU module.

Applications

  • Water Treatment: Management of pumping stations, chemical dosing, and monitoring equipment.
  • Logistics: Control of automated conveying systems and vertical storage stackers.
  • Renewable Energy: Pitch control and condition monitoring for wind turbine systems.
  • Packaging: Multi-axis synchronous control and precise positioning for high-speed lines.

FAQ

What is the primary distinction between the CPU351 and CPU352?

The IC693CPU352 includes a hardware-based floating-point math co-processor, whereas the IC693CPU351 does not support this feature.

How many baseplates can this CPU manage?

The module supports a total of 8 baseplates: one local CPU baseplate and up to 7 additional expansion or remote I/O baseplates.

What protocols are supported by the serial ports?

The module supports SNP and SNP-X slave protocols on the power supply connector, and both RTU slave and SNP/SNP-X master/slave protocols on Ports 1 and 2.
