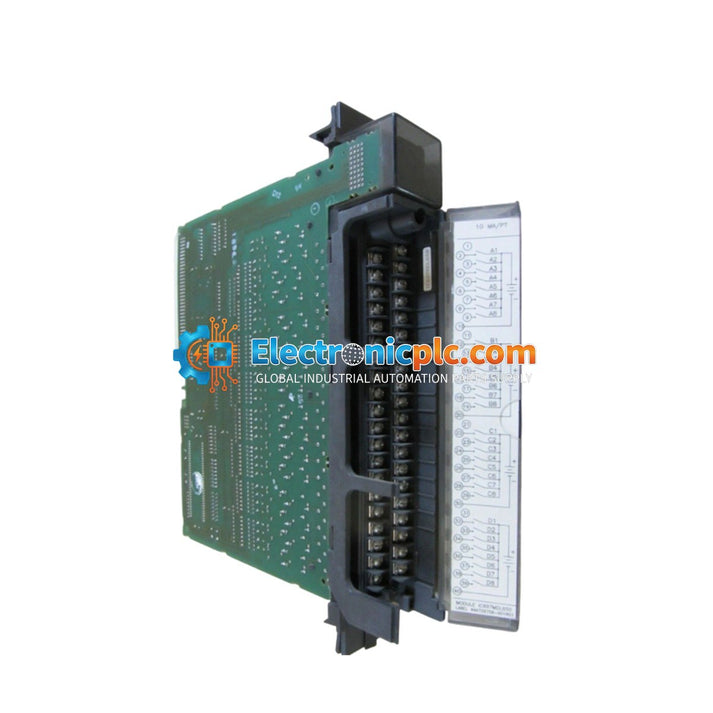

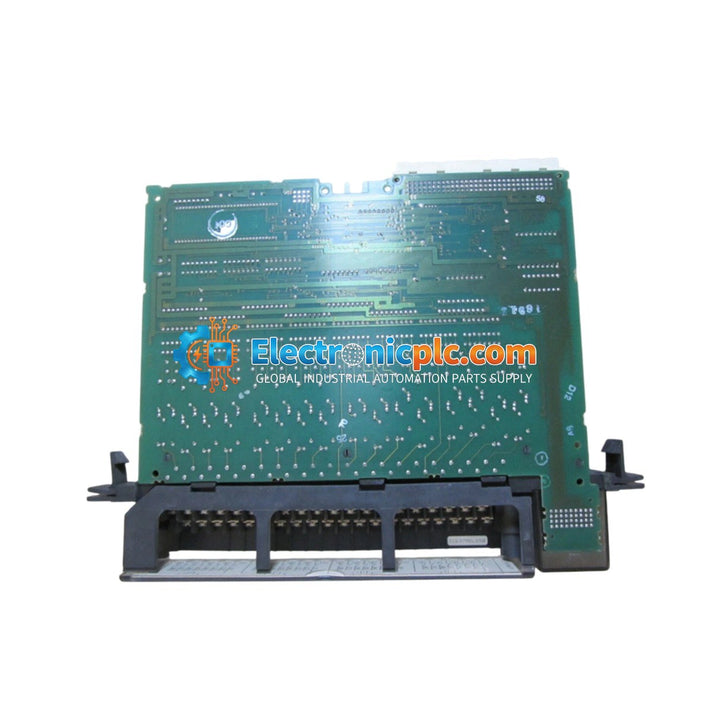

GE Fanuc IC697MDL650 Series 90-70 32-Point Discrete Input Module

GE Fanuc IC697MDL650 Series 90-70 32-Point Discrete Input Module

Description

The IC697MDL650 is a high-density discrete input module engineered for the GE Fanuc Series 90-70 PLC system. This module provides 32 points of positive logic (sinking) inputs, specifically designed to...

18 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: IC697MDL650
Proveedora: GE FANUC
tipo: Discrete Input Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The IC697MDL650 is a high-density discrete input module engineered for the GE Fanuc Series 90-70 PLC system. This module provides 32 points of positive logic (sinking) inputs, specifically designed to interface with high-speed field devices in demanding industrial environments. It is essential for applications requiring rapid signal acquisition, such as monitoring limit switches, push buttons, and proximity sensors to optimize machine cycle times and ensure system reliability.

Features

  • 32-point high-density input configuration for space-efficient rack utilization.
  • Positive logic (sinking) input architecture.
  • Integrated opto-isolation (1500 V Peak) to protect backplane and CPU components from electrical noise and voltage transients.
  • Front-mounted LED indicators for real-time visual status monitoring of each input channel.
  • Four isolated groups of eight inputs to simplify field wiring and segmentation.

Applications

The IC697MDL650 is widely deployed in sectors including automotive manufacturing, steel milling, and petrochemical processing. It is ideal for high-speed data acquisition tasks where granular monitoring of field devices is required to prevent unplanned downtime and maintain operational efficiency.

Technical Specifications

Model IC697MDL650
Series Series 90-70
Input Type Positive Logic (Sinking)
Number of Channels 32
Nominal Input Voltage 24 VDC
Input Voltage Range 0 to 30 VDC
On-state Voltage 15 to 30 VDC
Off-state Voltage 0 to 5 VDC
Backplane Power Consumption 350 mA at +5 VDC
Isolation 1500 V Peak (Field to Backplane)
Operating Temperature 0 to 60 deg C

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the module to prevent electrical damage.
  • Verify that the module is fully seated in the backplane slot and secured with the provided mounting screws.
  • Use shielded cables for field wiring to minimize EMI/RFI interference, especially in high-voltage industrial environments.
  • Maintain proper ventilation within the cabinet to ensure the ambient temperature remains within the 0 to 60 deg C operating range.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect internal circuitry.

FAQ

What is the input logic of the IC697MDL650?

The IC697MDL650 is a positive logic (sinking) module, meaning it detects current flowing from the field device into the input terminal.

How are the 32 inputs organized?

The inputs are partitioned into four groups of eight, each sharing a common power return, which facilitates organized and simplified field wiring.

What is the primary function of the LED indicators?

The front-mounted LEDs provide immediate visual verification of the logic state of each individual input point, which is critical for efficient troubleshooting during commissioning and maintenance.
