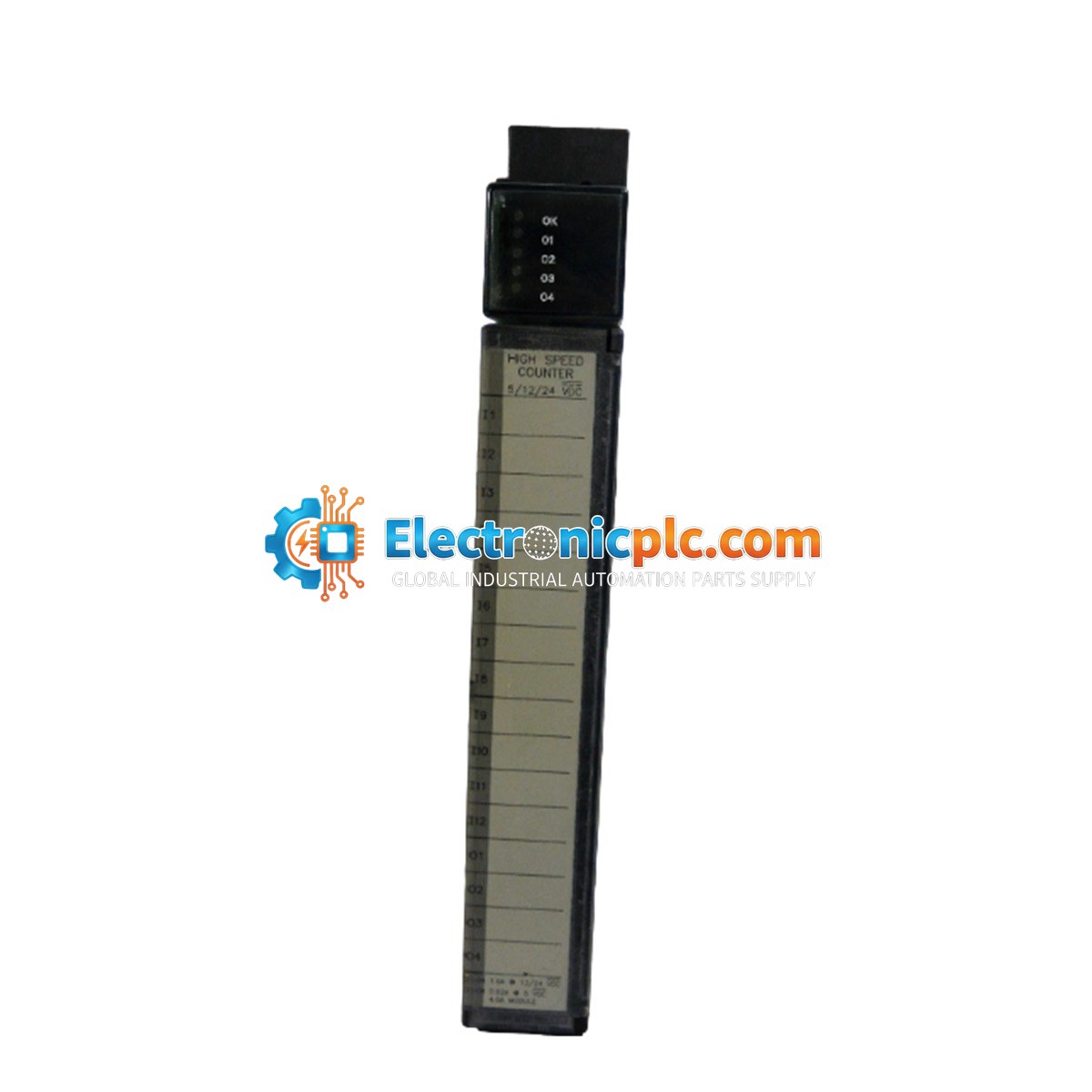

GE Fanuc IC697HSC700 Series 90-70 High-Speed Counter Module

GE Fanuc IC697HSC700 Series 90-70 High-Speed Counter Module

Description

The IC697HSC700 is a high-performance High-Speed Counter (HSC) module designed for the GE Fanuc Series 90-70 programmable logic controller system. This single-slot module is engineered to interface high-speed switching signals,...

20 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: IC697HSC700
Proveedora: General Electric
tipo: High-Speed Counter Module
