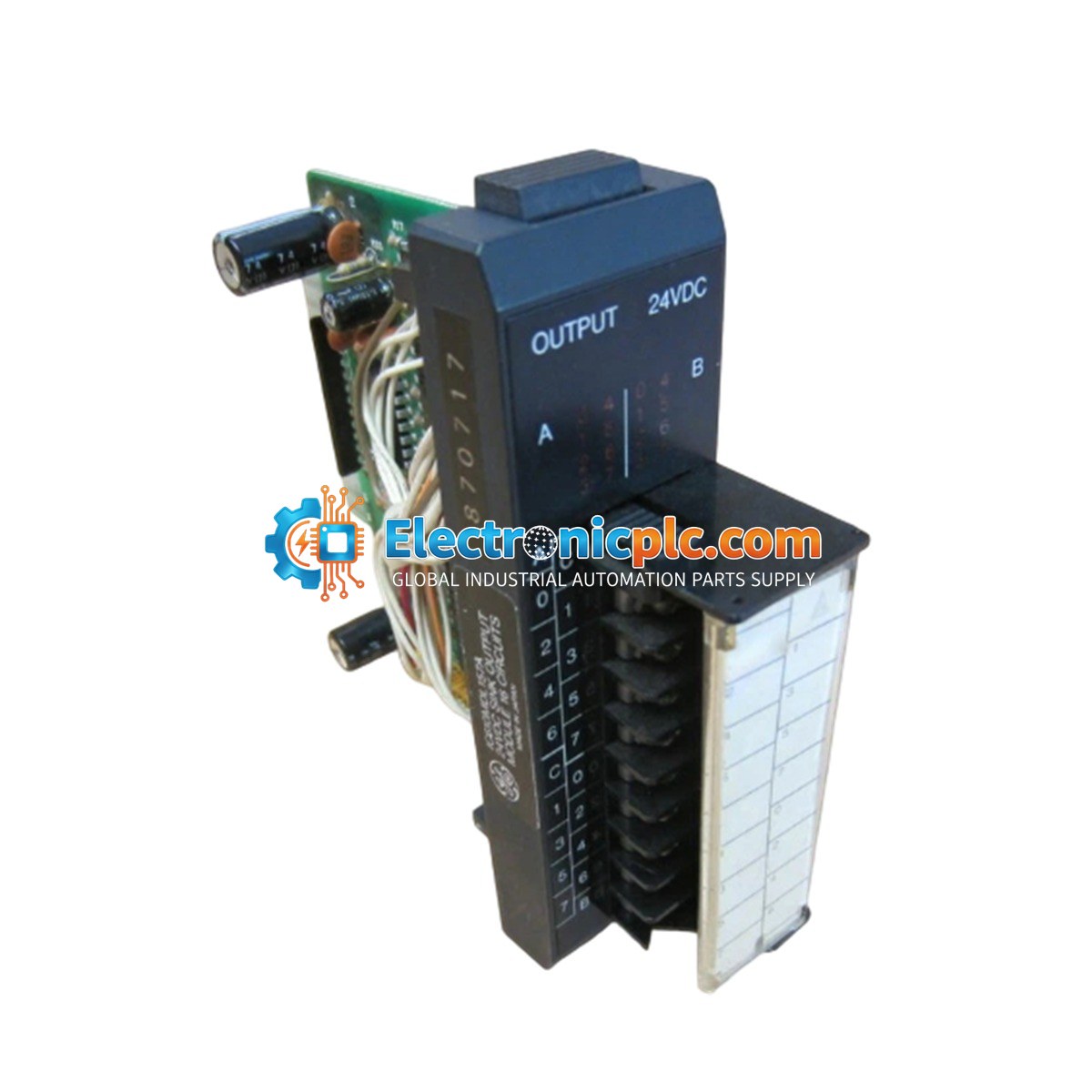

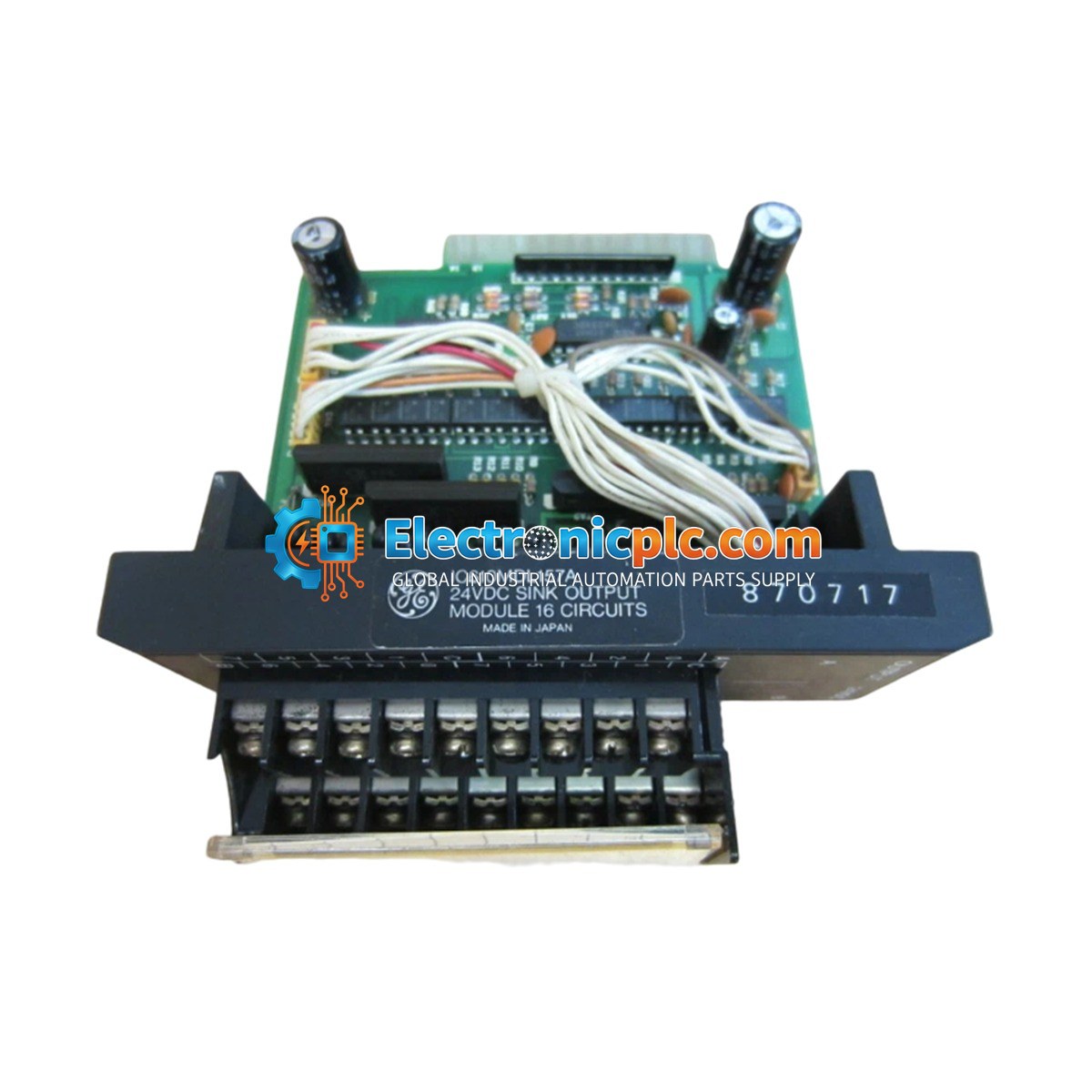

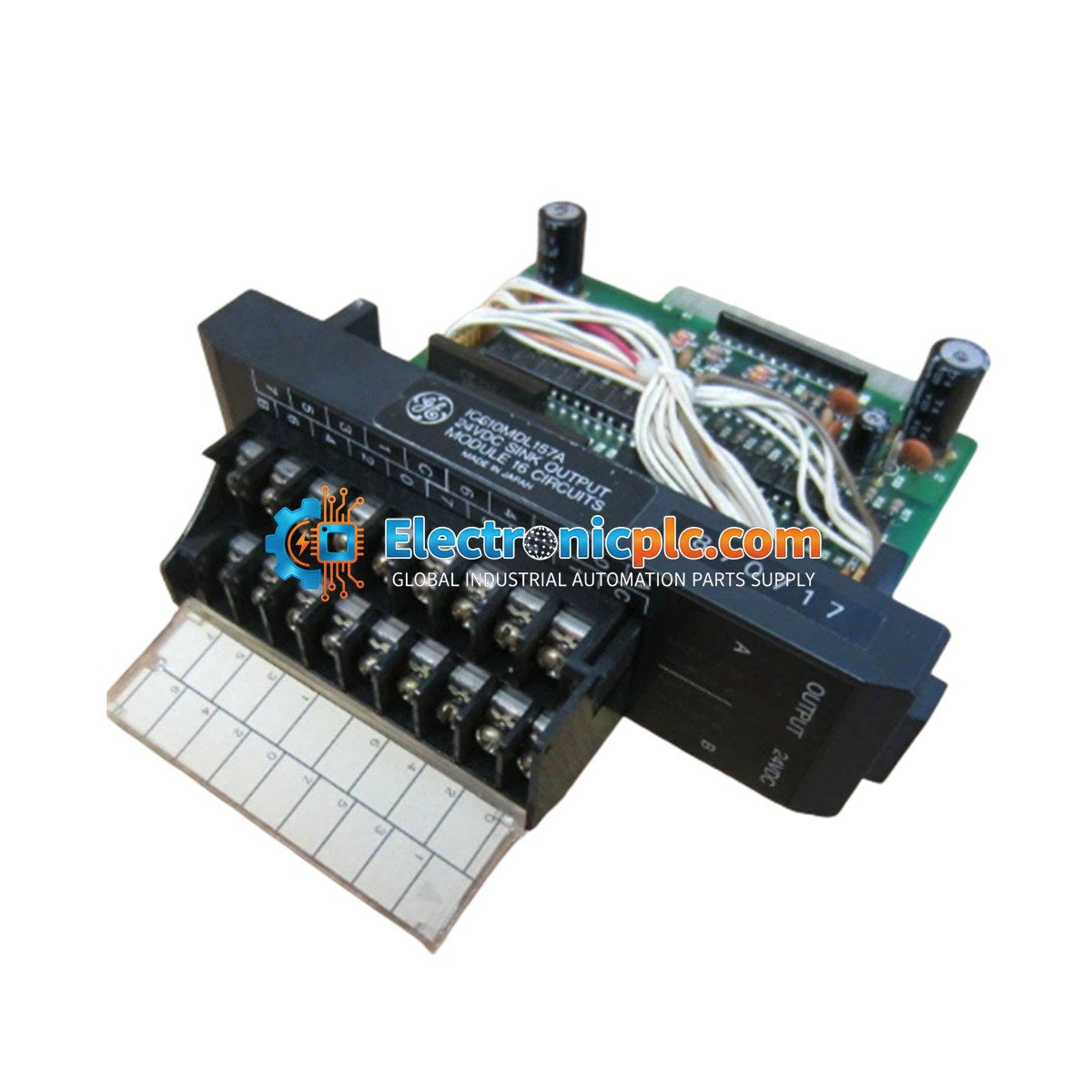

GE Fanuc IC610MDL157 Series One 16-Channel Sink Output Module

GE Fanuc IC610MDL157 Series One 16-Channel Sink Output Module

Description

The GE Fanuc IC610MDL157 is a 16-channel sink output module engineered for the Series One controller architecture. This module provides reliable discrete control for industrial automation applications, operating on a...

24 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 8

SKU: IC610MDL157
Proveedora: GE FANUC
tipo: PLC I/O Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The GE Fanuc IC610MDL157 is a 16-channel sink output module engineered for the Series One controller architecture. This module provides reliable discrete control for industrial automation applications, operating on a 24 VDC nominal voltage platform. It is designed to manage field-side actuators, relays, and indicators with high efficiency, featuring a low-loss semiconductor design that minimizes internal thermal accumulation. The module supports rapid response times and includes robust transient protection, making it suitable for demanding environments such as power generation and mining.

Features

  • 16 independent solid-state sink output circuits.
  • Supports a wide operating voltage range of 5 to 24 VDC.
  • High inrush current tolerance: 3 Amps for 20 ms or 1 Amp for 100 ms.
  • Minimal on-state voltage drop (1V typical) to reduce heat dissipation.
  • Low leakage current profile of 0.11 mA at 40 VDC to prevent false activation.
  • Front-facing, removable terminal block for simplified maintenance and field wiring management.

Applications

This module is typically deployed in Series One PLC systems for the control of discrete industrial loads. Common applications include the operation of solenoid valves, contactors, pilot lights, and other 24 VDC field devices in manufacturing, oil and gas, and utility automation systems.

Technical Specifications

Model IC610MDL157
Brand GE Fanuc
Product Line Series One
Number of Outputs 16
Output Configuration Sink
Nominal Voltage 24 VDC
Max Current per Circuit 0.5 Amps
Response Time 0.1 milliseconds
Operating Temperature 0 to 60 deg C
Terminal Interface Removable terminal block

Installation Guidelines

  • Ensure the Series One controller power is disconnected before installing or removing the module from the rack.
  • Use appropriate ESD protection when handling the module to prevent damage to internal logic components.
  • Ensure field wiring is properly secured in the removable terminal block; verify that no loose strands are present to prevent short circuits.
  • Maintain adequate ventilation within the control cabinet to ensure the ambient temperature remains within the 0 to 60 deg C range.
  • Route signal cables away from high-voltage AC lines and high-EMI sources to maintain signal integrity.

FAQ

Is this module compatible with other Series One components?

Yes, the IC610MDL157 is designed specifically for integration with the GE Fanuc Series One controller architecture.

Does this module require external power for the outputs?

Yes, the module requires a 24 VDC supply to power the sinking output circuits for field devices.

Can I replace the module without rewiring?

Yes, the module features a removable terminal block assembly, allowing you to swap the module without disconnecting individual field wires.
