Description

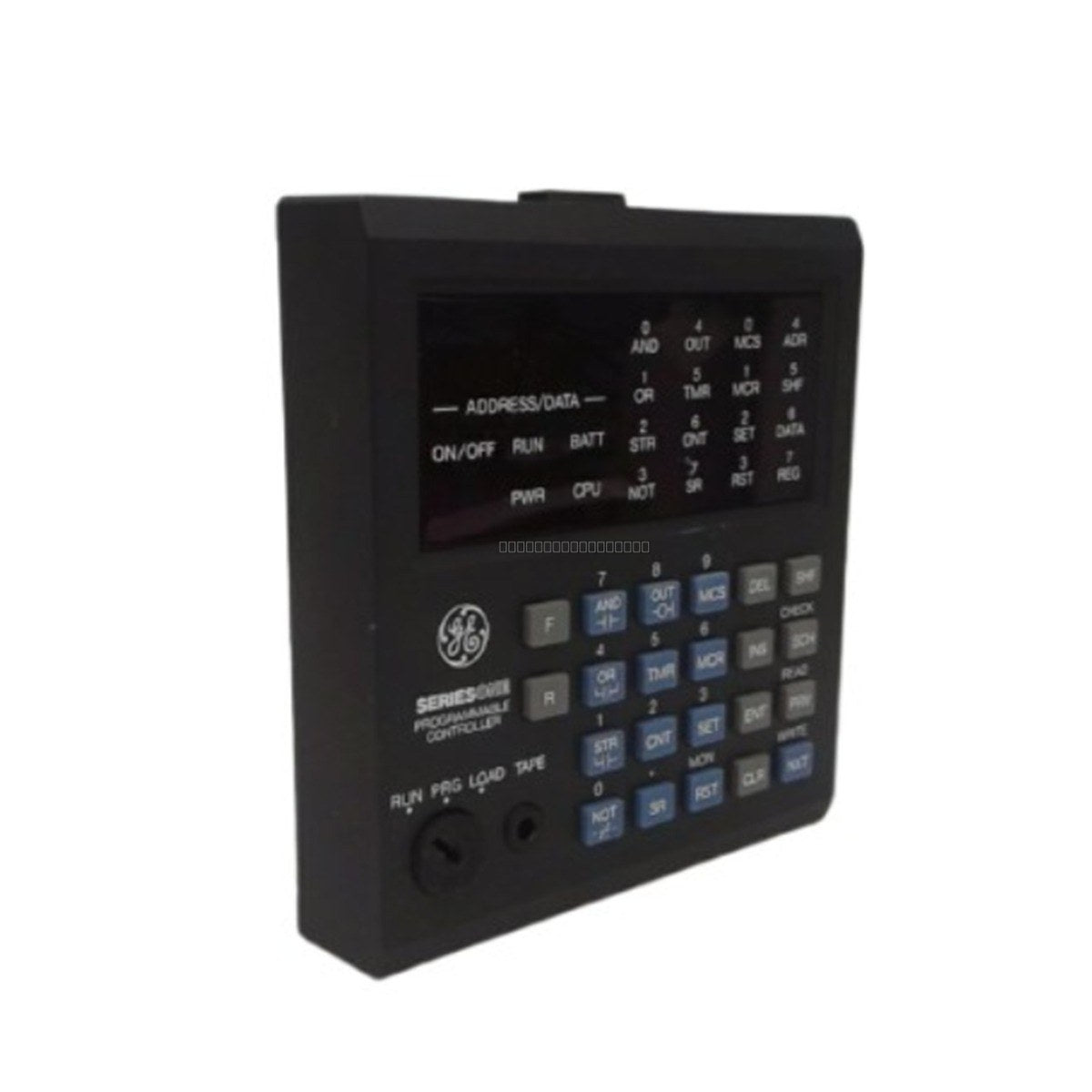

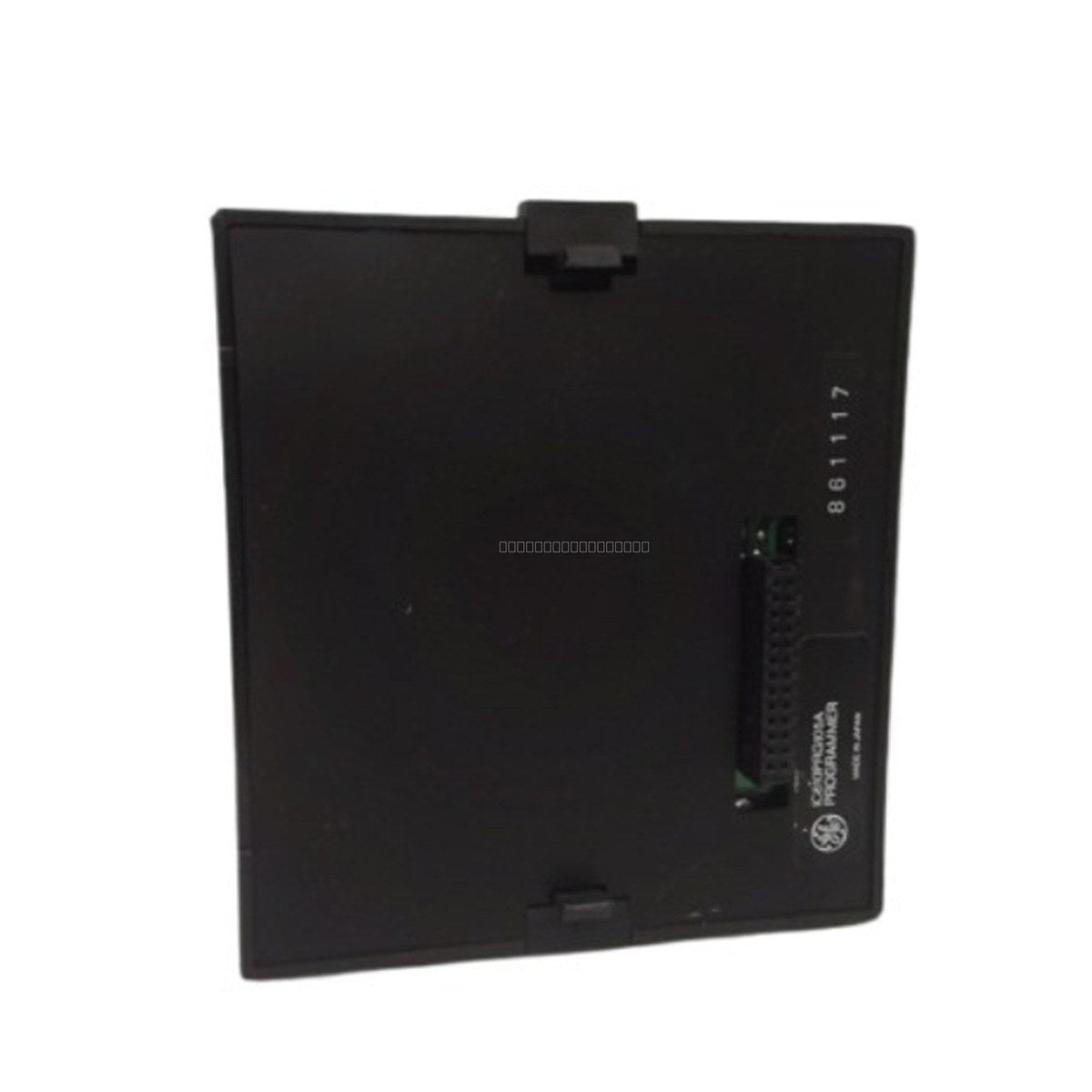

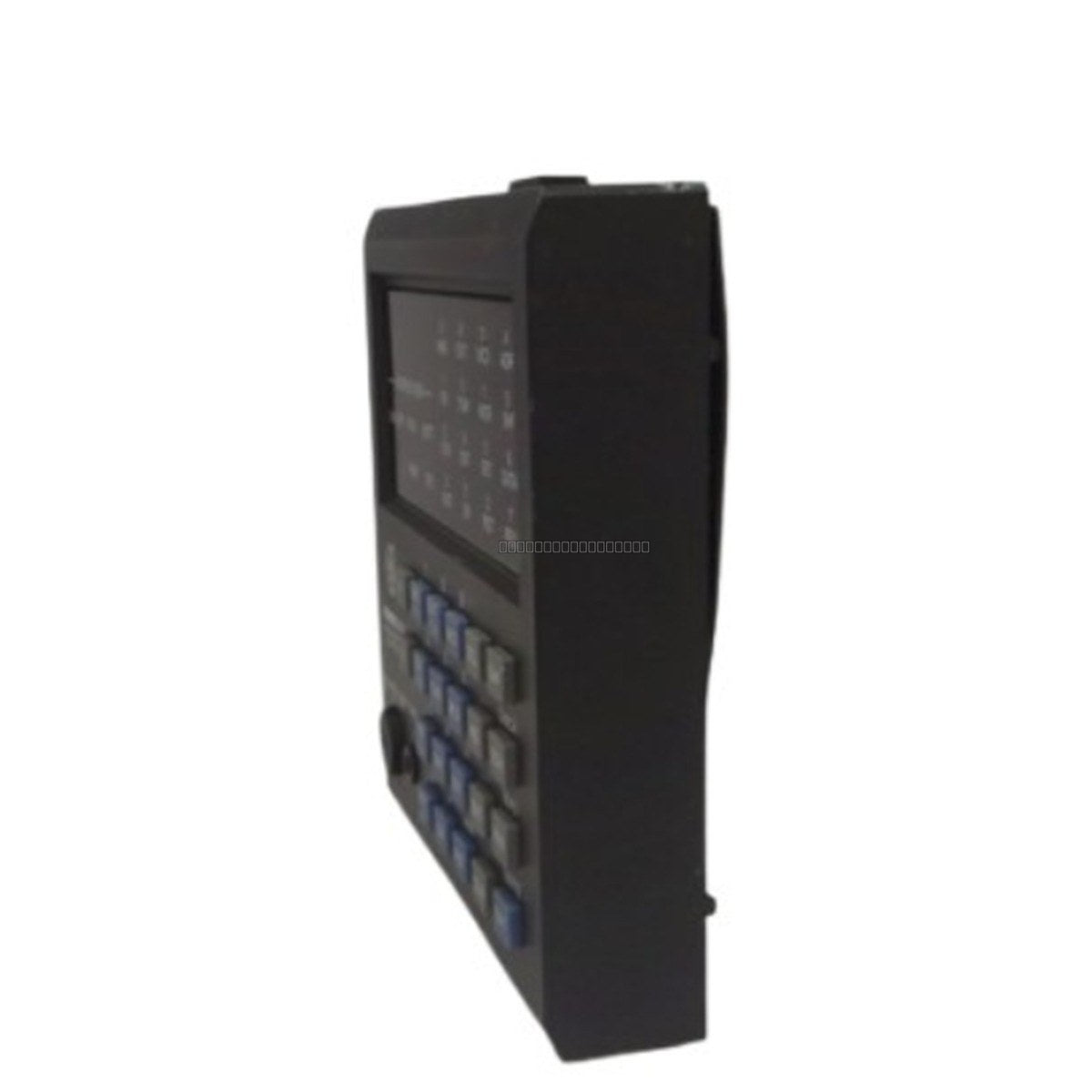

The IC610PRG105 is a specialized, industrial hand-held programming terminal designed by GE Fanuc for the legacy Series One controller platform. Engineered to operate on a 24 VDC nominal power supply, this interface tool facilitates localized logic adaptation, diagnostic lookup, and direct register overrides for modular processors. It is engineered for use in demanding industrial environments, including mining control consoles, power plant sub-stations, and chemical refining facilities. By enabling engineers to perform immediate logic adjustments, force inputs, and review runtime register states directly on the factory floor, this device minimizes the need for external programming computers and reduces system troubleshooting cycles.

Features

• Ruggedized 22-key tactical input matrix for reliable alphanumeric entry and command execution.
• Includes a 1.5-meter tethered communication cable for flexible maneuvering.
• Supports both volatile CMOS RAM cartridges and permanent UV-erasable EPROM storage chips.
• Non-volatile memory architecture with 700-word storage capacity.
• Versatile deployment: suitable for hand-held operation or flush mounting on control panel doors.
• Robust mechanical housing designed to prevent thermal drift and internal component oxidation.

Applications

This programmer is primarily used for the maintenance and configuration of GE Fanuc Series One PLC systems. It is essential for field technicians requiring direct access to controller registers and logic states in environments where full-sized programming stations are impractical or unavailable.

Technical Specifications

Installation Guidelines

• Ensure the controller is powered down before connecting or disconnecting the programmer cable to prevent electrical transients.
• When mounting the device on a console or panel door, ensure the cutout is properly sealed to maintain the integrity of the enclosure.
• Avoid routing the communication cable near high-voltage power lines or heavy inductive loads to prevent EMI-induced data errors.
• Handle the unit with standard ESD precautions when accessing internal memory cartridges or EPROM chips.
• Store in a clean, dry environment within the specified temperature range when not in use.

FAQ

Is this programmer compatible with other GE Fanuc PLC series?
No, the IC610PRG105 is specifically designed for the Series One platform and is not compatible with later GE Fanuc or Emerson PLC series.

Does this unit require an external power supply?
The unit is designed to operate on a 24 VDC supply, typically sourced from the Series One controller rack or an auxiliary power source within the control cabinet.
