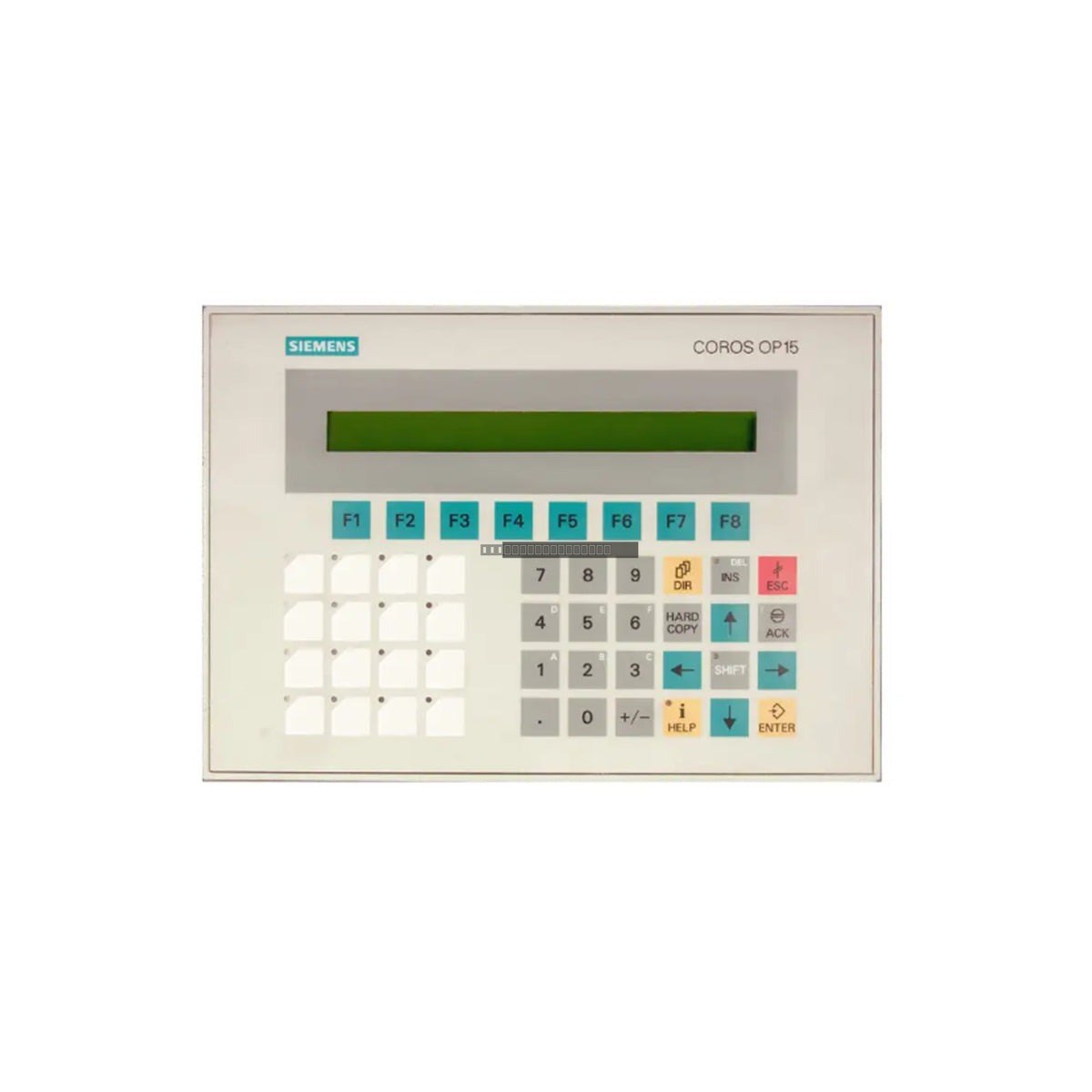

Siemens 6AV3515-1EB30 SIMATIC Operator Panel

Siemens 6AV3515-1EB30 SIMATIC Operator Panel

Description

The Siemens 6AV3515-1EB30 is a robust HMI operator panel engineered for reliable machine-level visualization and control within legacy industrial automation environments. This unit features a clear 2-line alphanumeric display paired...

21 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 6

SKU: 6AV3515-1EB30
Proveedora: Siemens
tipo: Operator Panel
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6AV3515-1EB30 is a robust HMI operator panel engineered for reliable machine-level visualization and control within legacy industrial automation environments. This unit features a clear 2-line alphanumeric display paired with a durable 48-button functional keypad, enabling operators to monitor real-time system variables, acknowledge alarms, and execute precise control commands. Designed for demanding industrial applications, this panel facilitates direct, low-latency access to PLC memory registers, assisting in the reduction of configuration errors and streamlining troubleshooting processes.

Features

  • Tactile Keypad: Equipped with a 48-button membrane keyboard featuring tactile dome switches, designed for high-cycle durability and resistance to dust and oil ingress.
  • Multi-Port Connectivity: Includes two V.24/TTY (SS1/SS2-A) female ports supporting 20 mA active/passive current loops and one RS422/RS485 female port for versatile fieldbus and serial communication.
  • Industrial Design: Rugged construction suitable for deployment in heavy industries such as automotive manufacturing, chemical processing, and mineral handling.
  • Optimized Communication: Isolated serial data channels ensure signal integrity and network stability, even in environments with significant electromagnetic interference.

Technical Specifications

Model 6AV3515-1EB30
Brand Siemens
Series SIMATIC HMI
Display 2-line alphanumeric
Input 48-button tactile keypad
Serial Ports 2 x V.24/TTY (SS1/SS2-A), 1 x RS422/RS485
Supply Voltage 24 VDC
Operating Temperature 0 to 50 deg C

Installation Guidelines

  • Ensure the panel is mounted in a location that allows for adequate airflow to maintain operating temperatures within the 0 to 50 deg C range.
  • Use shielded communication cables for all serial connections to minimize the impact of electromagnetic noise.
  • Verify that the 24 VDC power supply is stable and properly grounded before connecting the unit to the PLC network.
  • Always power down the system before inserting or removing communication cables to prevent electrical damage to the interface ports.
  • Clean the membrane keypad periodically using only approved industrial cleaners to maintain tactile responsiveness and seal integrity.

FAQ

What type of communication protocols does this panel support?

The 6AV3515-1EB30 supports V.24/TTY (20 mA current loop) for legacy point-to-point connections and RS422/RS485 for multi-node master-slave networking.

Is this unit suitable for high-dust environments?

Yes, the 48-button membrane keypad is designed with tactile dome switches to prevent dust and oil from entering the internal circuitry, making it suitable for standard industrial shop-floor conditions.
