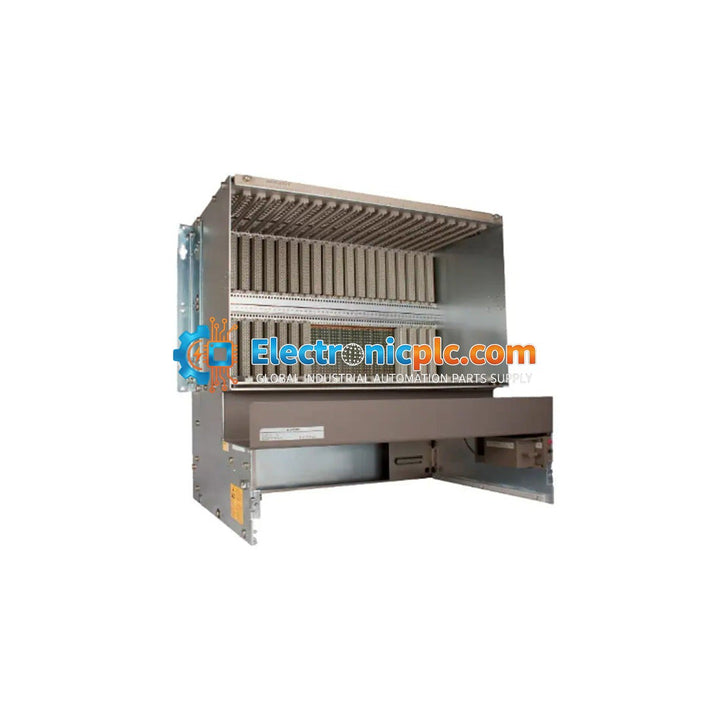

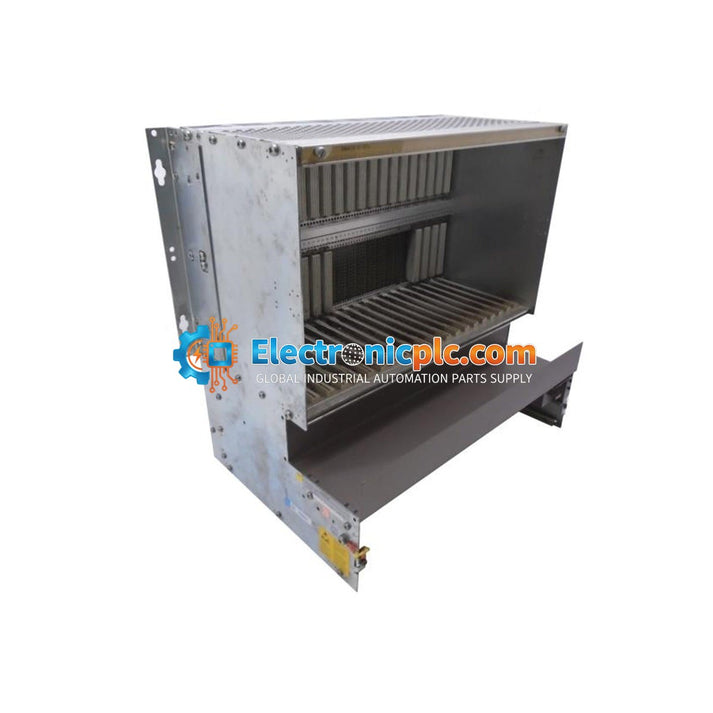

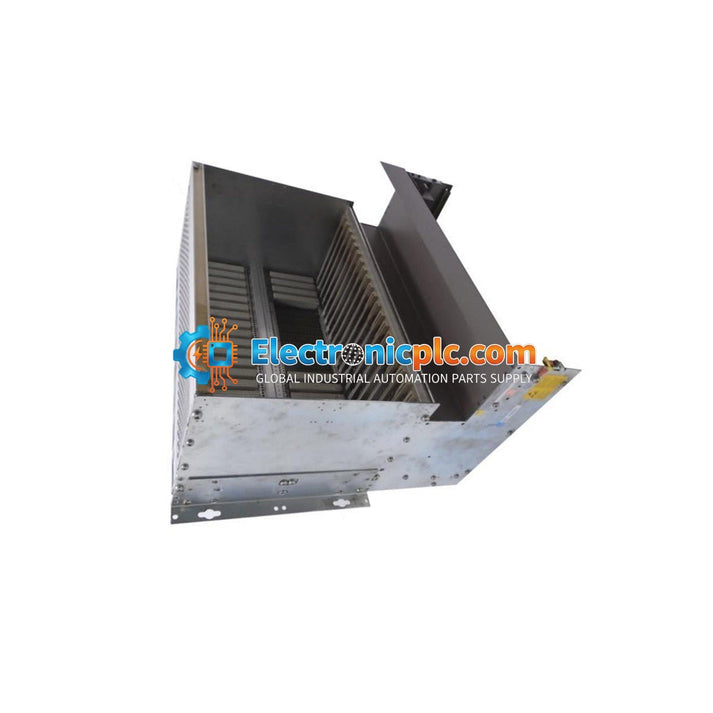

Siemens 6ES5135-3KB13 SIMATIC S5-135U Central Controller Rack

Siemens 6ES5135-3KB13 SIMATIC S5-135U Central Controller Rack

Description

The Siemens 6ES5135-3KB13 is a central controller rack designed for the SIMATIC S5-135U automation platform. This 21-slot chassis provides the structural and electrical framework required to house high-performance CPU processors,...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 2

SKU: 6ES5135-3KB13
Proveedora: Siemens
tipo: PLC Rack
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6ES5135-3KB13 is a central controller rack designed for the SIMATIC S5-135U automation platform. This 21-slot chassis provides the structural and electrical framework required to house high-performance CPU processors, I/O modules, and communication interfaces. It is intended for large-scale industrial applications such as automotive assembly lines, steel rolling mills, and power distribution substations, facilitating rapid signal processing and coherent system management.

Features

  • 21-slot high-density layout for expansive system customization.
  • High-speed backplane architecture for deterministic data transfer between the central S-processor and peripheral modules.
  • Robust industrial-grade enclosure designed to withstand vibration and thermal stressors.
  • Modular design to support component upgrades and maintenance.
  • Supports high-current requirements up to 18 A.

Applications

This rack is widely utilized in heavy industrial environments where centralized control and high-density I/O configurations are required. Typical applications include complex manufacturing processes, automated assembly lines, and power generation control systems within the SIMATIC S5-135/155 family.

Technical Specifications

Model 6ES5135-3KB13
Series SIMATIC S5-135/155
Slot Capacity 21 Slots
Rated Current 18 A
Voltage Compatibility 115 VAC to 240 VAC (via compatible power modules)
Operating Temperature 0 deg C to 55 deg C
Mounting Standard Rack Mount

Installation Guidelines

  • Ensure the rack is mounted in a clean, dry, and vibration-dampened environment to maintain long-term reliability.
  • Maintain adequate clearance around the rack to allow for proper airflow and cooling, preventing thermal buildup.
  • Ensure all power is disconnected before installing or removing any modules from the rack slots.
  • Use appropriate grounding techniques to minimize EMI interference, following standard industrial electrical safety practices.
  • Verify that all modules are fully seated and secured in their respective slots to ensure reliable backplane connectivity.

FAQ

Is the power supply included with the 6ES5135-3KB13?

No, this rack is provided as a chassis without an integrated power supply. It is designed to accommodate compatible power modules that support 115 VAC to 240 VAC input ranges.

What series is this rack compatible with?

This rack is specifically designed for the Siemens SIMATIC S5-135U and S5-155U automation systems.
