Description

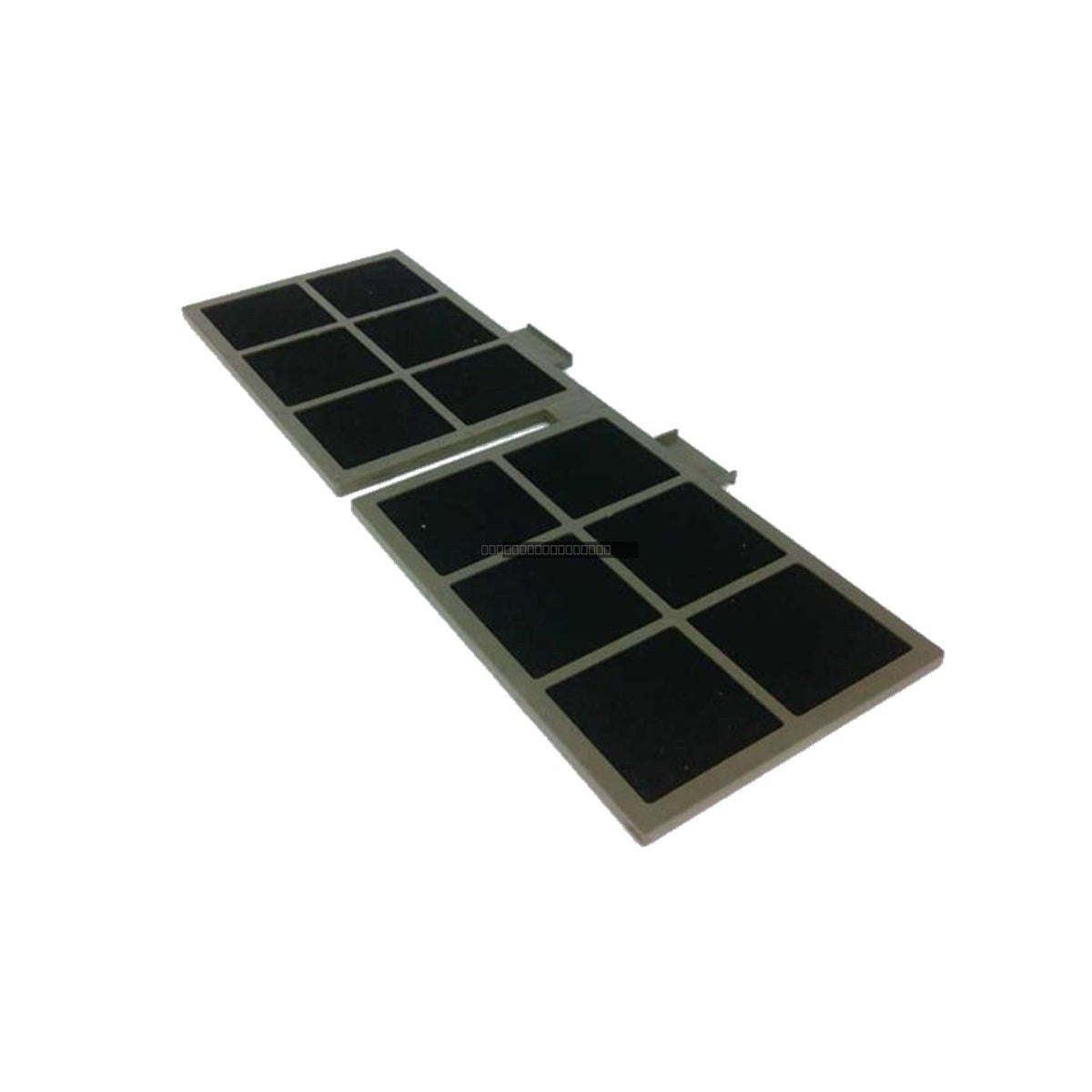

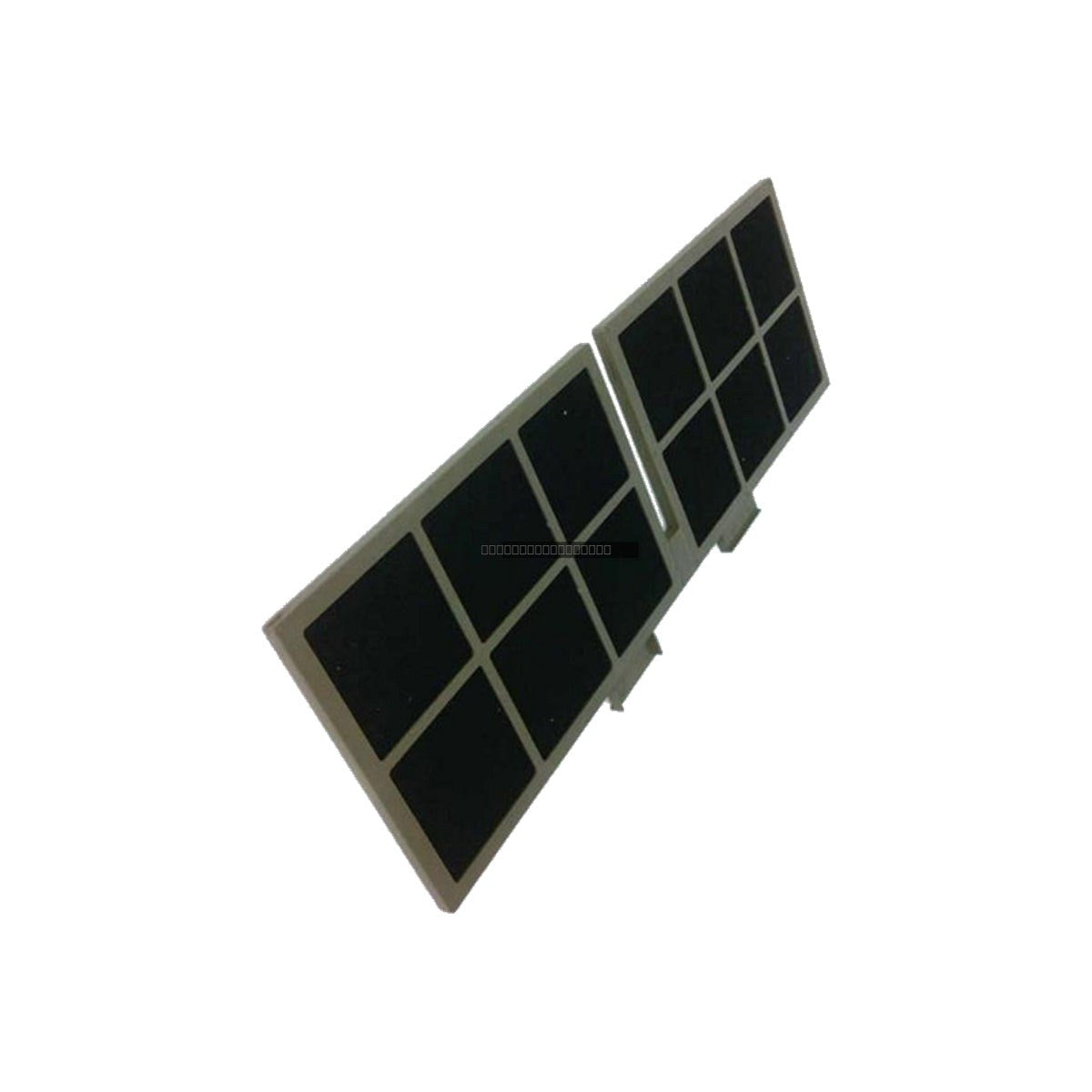

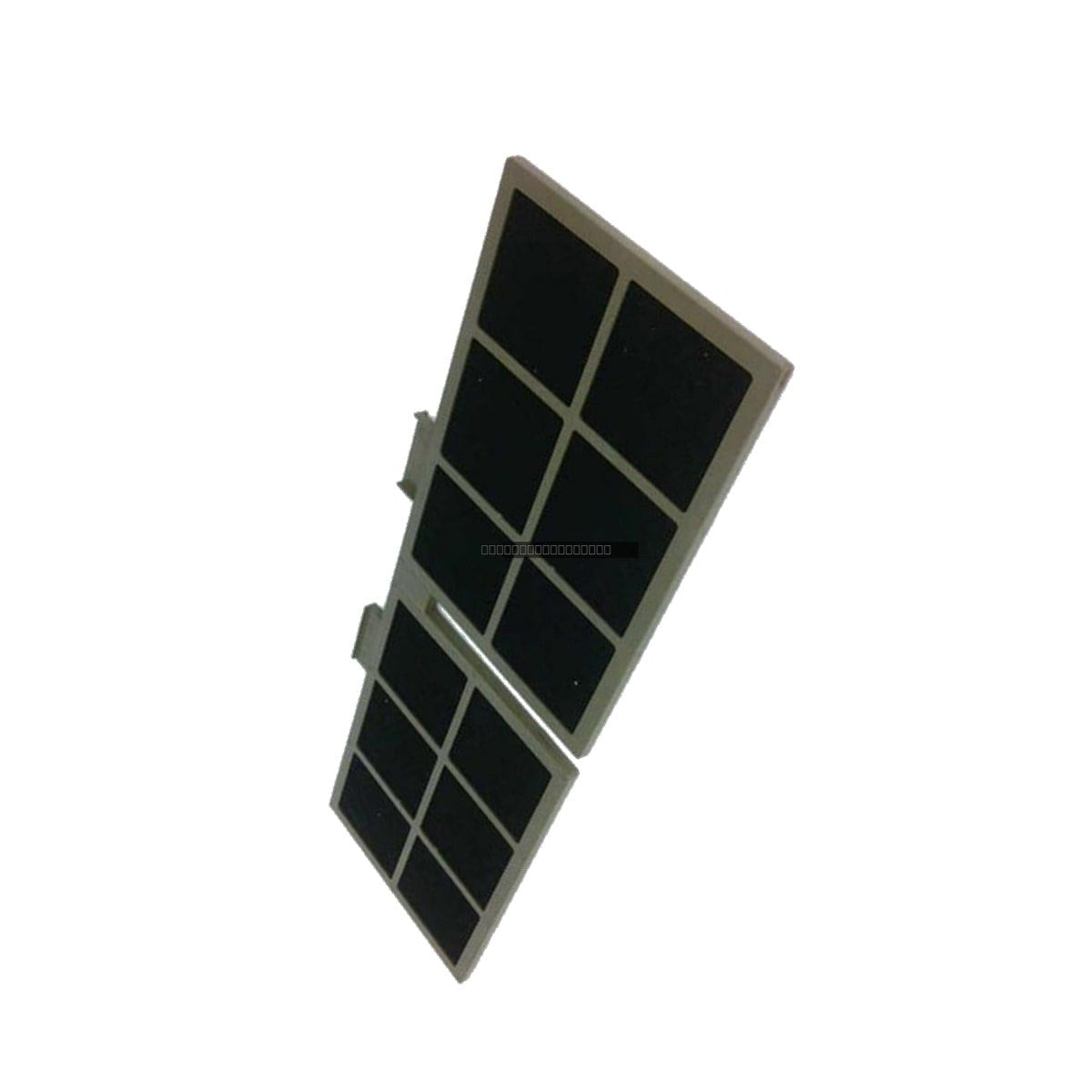

The Siemens 6ES5981-0JA11 is a specialized filter element engineered for the fan subassembly of the SIMATIC S5-115U programmable logic controller (PLC) rack system. This passive component serves as a critical barrier against airborne contaminants, metallic dust, and fibrous debris, preventing them from entering the sensitive electronic housing of the PLC rack. By maintaining clean airflow, the filter protects internal PCB traces and switching components from particulate buildup, which can otherwise lead to thermal hot spots or electrical bridging. This component is essential for maintaining system reliability in demanding industrial environments, such as manufacturing, mining, and processing facilities.

Features

• System Compatibility: Designed specifically for the S5-115U rack fan unit, ensuring a precise fit that prevents bypass airflow.
• Optimized Airflow: The porous media structure is engineered to maintain high volumetric airflow, ensuring efficient cooling of the CPU and power supply modules.
• Environmental Protection: Acts as a primary defense against abrasive media that can degrade backplane tracking and card-edge contacts.
• Passive Design: Requires no electrical power, functioning purely as a mechanical filtration barrier.

Installation Guidelines

• Power Down: Always ensure the PLC rack power is disconnected before performing maintenance on the fan unit.
• Access: Locate the fan subassembly on the S5-115U rack. Carefully remove the existing filter element by disengaging the mechanical retention clips or housing cover.
• Orientation: Ensure the new filter is seated correctly within the frame to prevent air gaps around the perimeter.
• Maintenance: Inspect the filter periodically based on the severity of the plant environment. Replace the filter if significant particulate accumulation is observed to ensure continued thermal performance.
• Handling: Avoid touching the filter media with oily or dirty hands to prevent clogging the porous structure before installation.

Technical Specifications

FAQ

Is this filter compatible with other SIMATIC S5 racks?

This specific model is designed for the S5-115U rack fan subassembly. Please verify your rack model number before installation to ensure proper fitment.

How often should this filter be replaced?

Replacement frequency depends on the ambient air quality of your facility. In high-dust environments, such as cement or mining plants, more frequent inspection and replacement are recommended to prevent airflow restriction.
