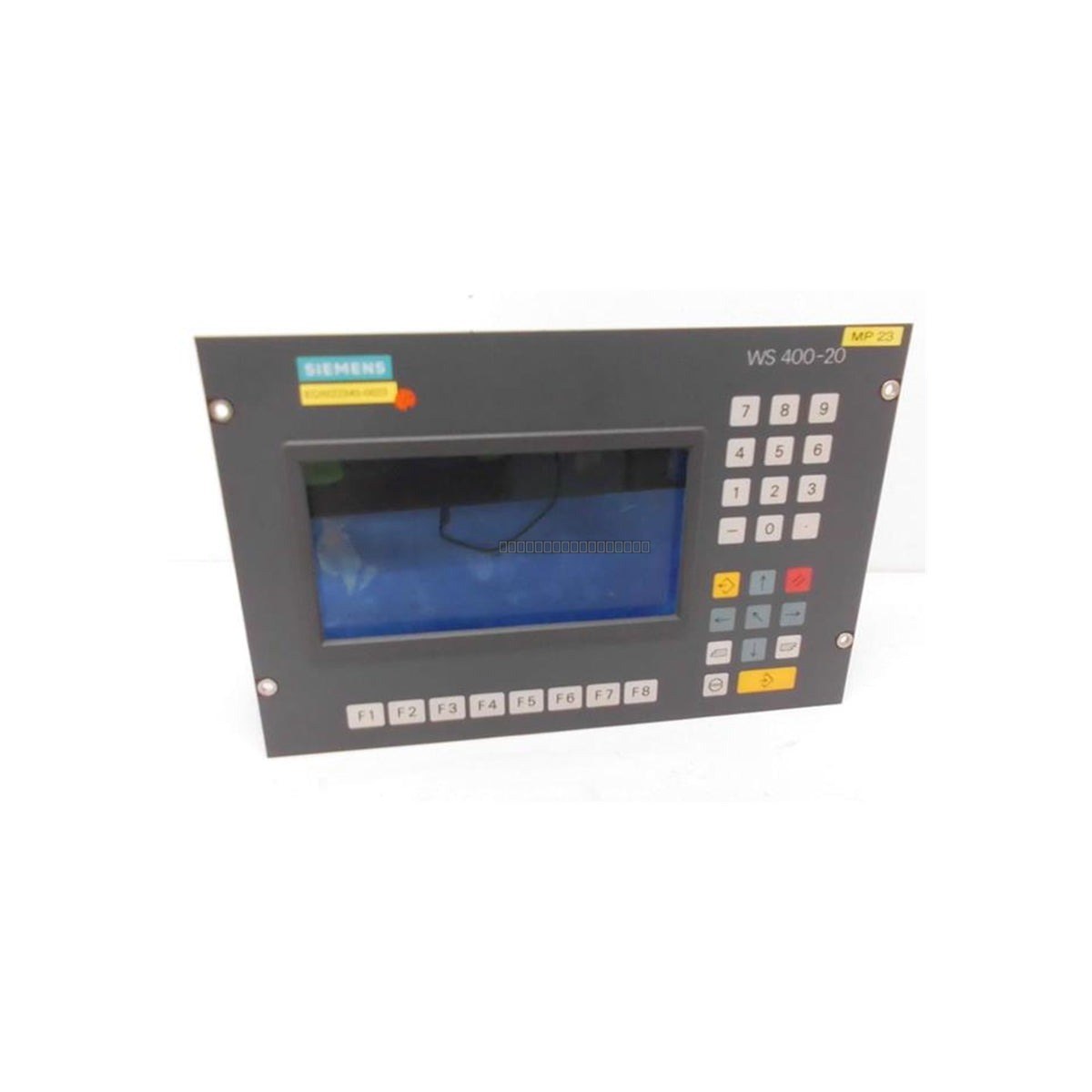

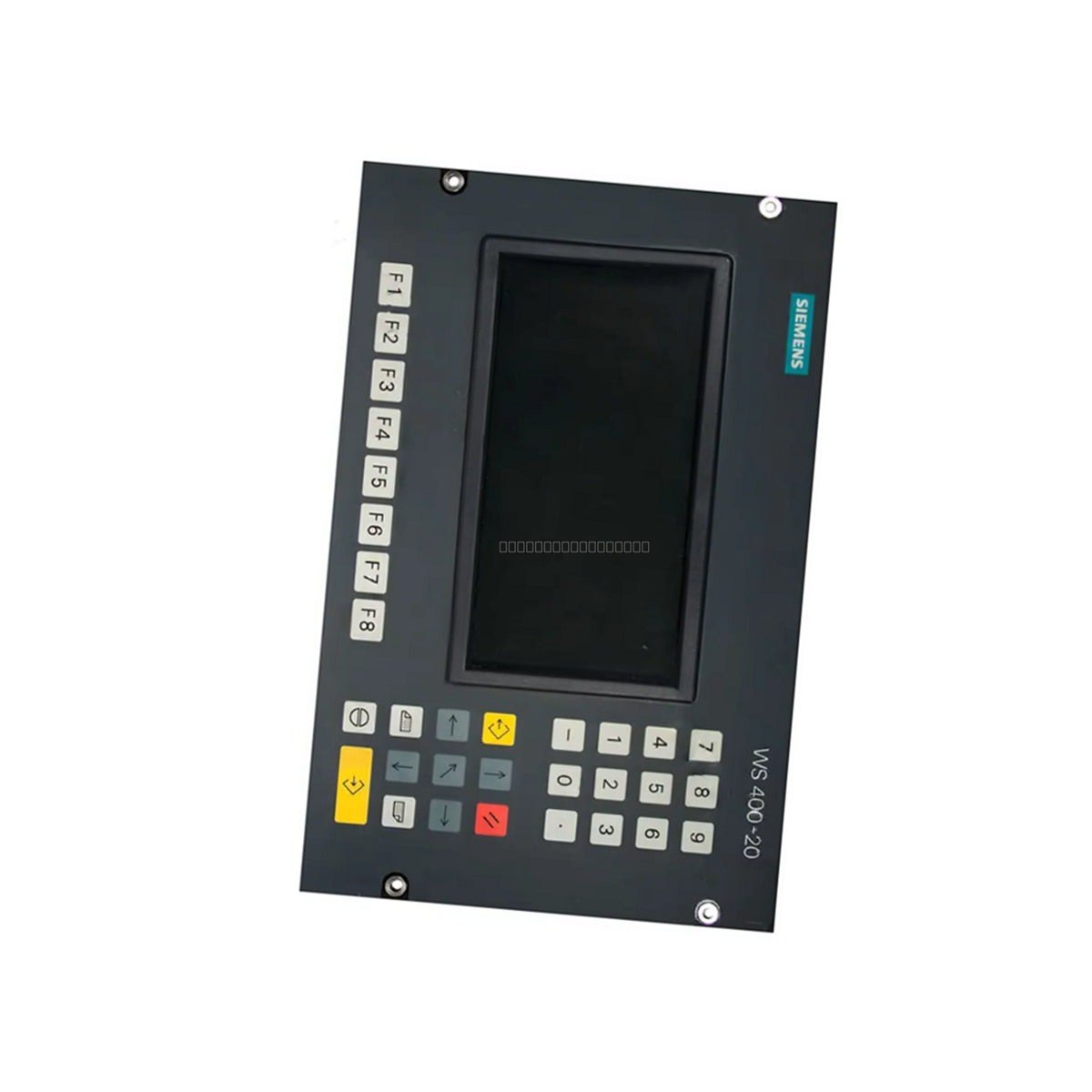

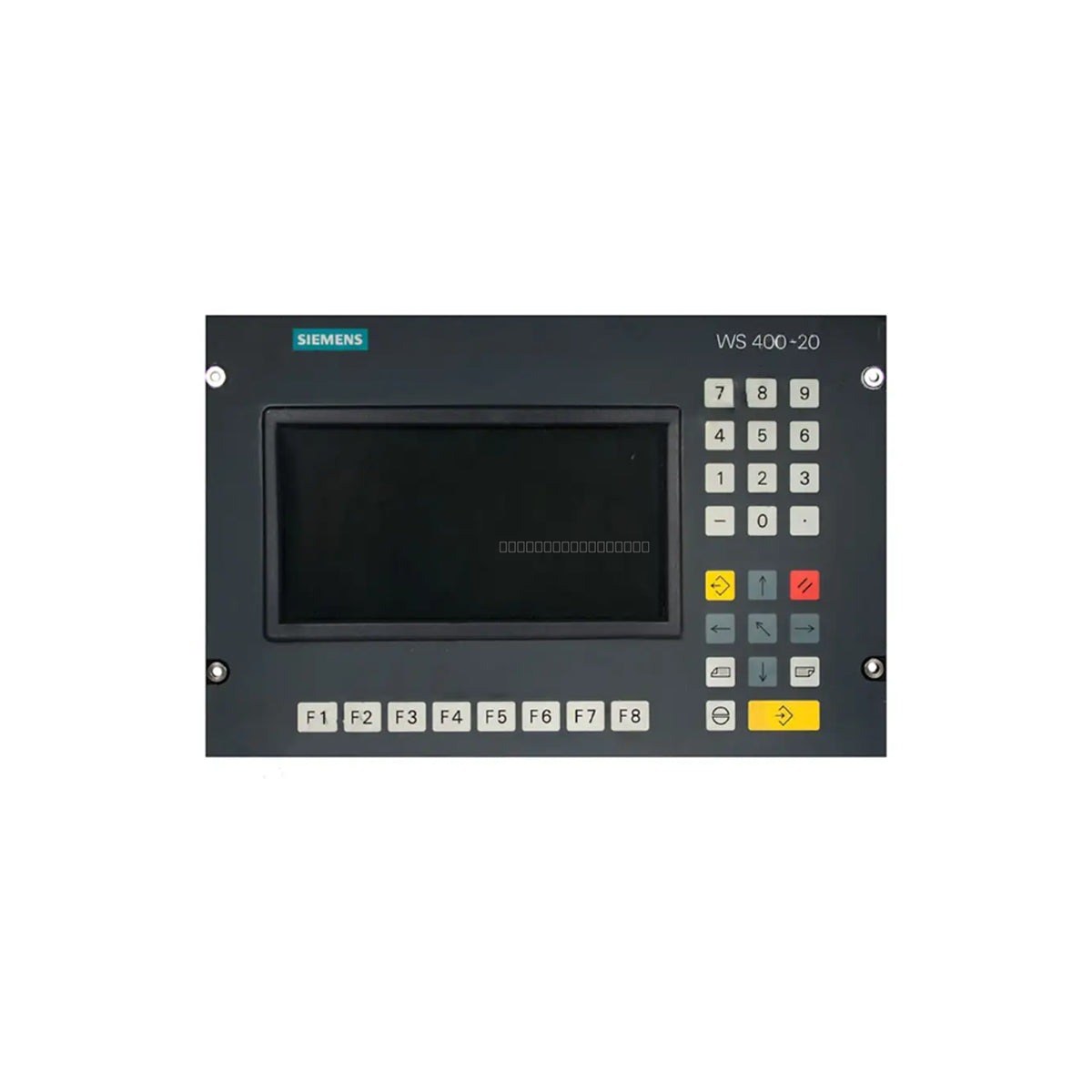

Siemens 6FM1420-1CA00 WS 400-20 Operator Interface

Siemens 6FM1420-1CA00 WS 400-20 Operator Interface

Description

The Siemens 6FM1420-1CA00 is a rugged machine-level Human-Machine Interface (HMI) designed for the legacy WS 400-20 operator series. This device integrates an Electroluminescent (EL) display block alongside a dedicated array...

26 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 7

SKU: 6FM1420-1CA00
Proveedora: Siemens
tipo: Operator Interface HMI
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6FM1420-1CA00 is a rugged machine-level Human-Machine Interface (HMI) designed for the legacy WS 400-20 operator series. This device integrates an Electroluminescent (EL) display block alongside a dedicated array of 8 physical function keys and a 10-key block for deterministic numeric data entry. Engineered for resilience in harsh environments such as automated petroleum refining, base-load thermal power plants, and underground mining operations, this interface provides operators with localized process monitoring and fault diagnostics.

Features

  • High-contrast Electroluminescent (EL) display for superior legibility in variable lighting.
  • Tactile membrane switch interface with 8 function keys and a 10-key numeric block.
  • Sealed housing design to protect internal electronics from industrial dust and moisture.
  • Designed for flush-panel mounting in standard control enclosures.
  • Provides direct hardware feedback and communication with host PLC systems for rapid alarm and process variable updates.

Applications

This operator interface is intended for use in legacy industrial automation systems, including machine tool control, power plant auxiliary monitoring, and mining process management where reliable, localized operator interaction is required.

Technical Specifications

Model 6FM1420-1CA00 (WS 400-20)
Brand Siemens
Series WS 400 Series
Device Type Operator Interface HMI
Display Technology Electroluminescent (EL)
Input Interface 8 Function Keys, 10-Key Block
Operating Voltage 24 VDC
Operating Temperature 0 to 50 deg C
Storage Temperature -20 to 60 deg C

Installation Guidelines

  • Ensure the control panel cutout is prepared to the manufacturer's specifications to maintain the integrity of the gasket seal.
  • Verify that the power supply is disconnected before installation or removal of the module to prevent electrical damage.
  • Ensure the unit is mounted in a location that provides adequate ventilation to maintain operating temperatures within the specified 0 to 50 deg C range.
  • Use shielded communication cables to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Handle with care to avoid damage to the membrane keypad and display surface during mounting.

FAQ

Is this unit compatible with modern SIMATIC S7 controllers?

The 6FM1420-1CA00 is designed specifically for the legacy WS 400-20 series. Compatibility with newer S7-series controllers may require specific communication gateways or protocol converters; please consult your system documentation to verify interface requirements.

What is the primary maintenance requirement for this HMI?

Maintenance is primarily focused on ensuring the integrity of the panel gasket to prevent ingress and periodically cleaning the membrane keypad with non-abrasive industrial cleaners to maintain tactile responsiveness.
