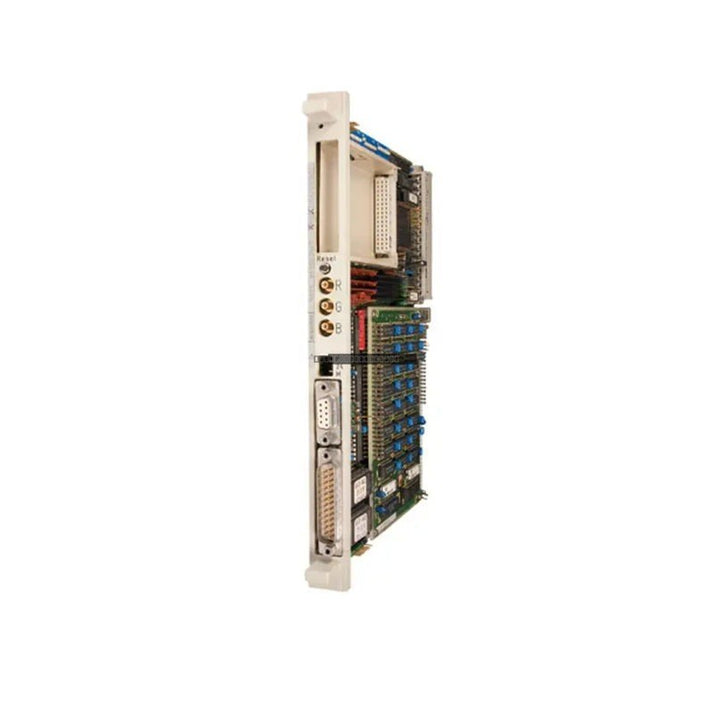

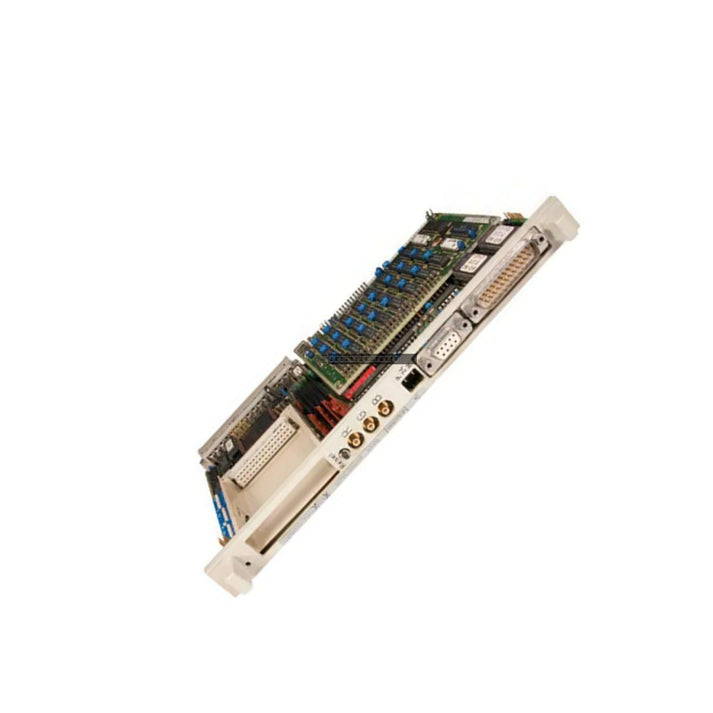

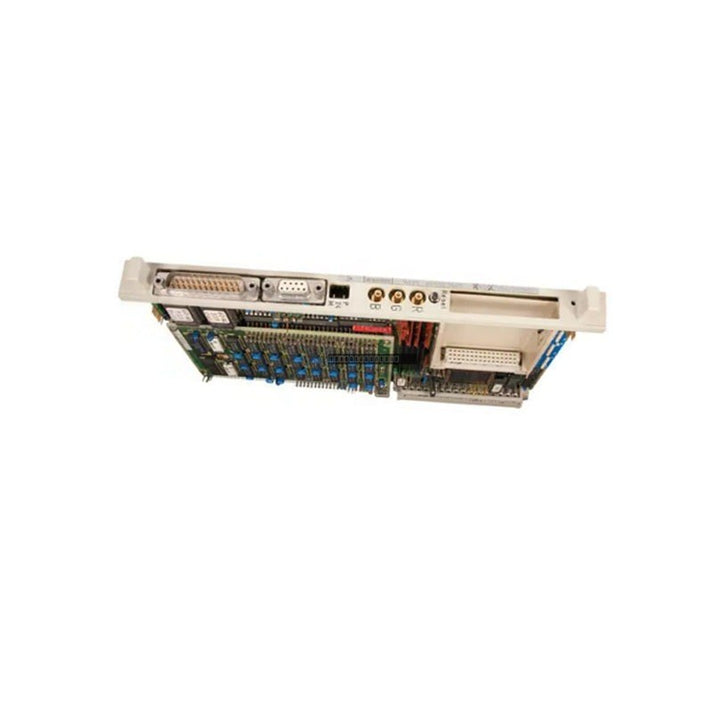

Siemens 6FM1470-3AA21 Simatic S5 WF 470 Color Display Module

Siemens 6FM1470-3AA21 Simatic S5 WF 470 Color Display Module

Description

The Siemens 6FM1470-3AA21 is a specialized color display interface module engineered for the WF 470 intelligent processor subsystem within the Simatic S5 PLC environment. This module serves as a dedicated...

29 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 10

SKU: 6FM1470-3AA21
Proveedora: Siemens
tipo: Display Control Module
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6FM1470-3AA21 is a specialized color display interface module engineered for the WF 470 intelligent processor subsystem within the Simatic S5 PLC environment. This module serves as a dedicated graphics controller, offloading visualization and monitoring tasks from the main CPU to ensure high-performance operator interface stability. It supports multi-language firmware, including English, German, French, and Russian, making it suitable for diverse industrial automation applications such as automotive assembly, steel processing, and heavy mining infrastructure.

Features

  • Standalone microprocessor architecture for independent graphical rendering and data processing.
  • Integrated memory expansion slot to support complex screen topologies and character sets.
  • Direct Simatic S5 backplane interface for efficient I/O register mapping and command execution.
  • Optimized for high-speed synchronization with industrial color CRT and flat-panel displays.
  • Reduces system bottlenecks by handling visualization tasks independently of the primary control logic.

Applications

This module is typically deployed in Simatic S5-based control systems where real-time operator feedback is critical. It is widely utilized in environments requiring complex diagnostic displays, process monitoring, and localized operator interfaces to maintain continuous plant operation and minimize downtime.

Technical Specifications

Model 6FM1470-3AA21 (WF 470)
Brand Siemens
Product Family Simatic S5
Product Type Display Control Module
Memory Expansion 1 Slot
Supported Languages English, German, French, Russian
Power Consumption 15 Watts (via S5 backplane)
Operating Temperature 0 to 55 deg C

Installation Guidelines

  • Ensure the Simatic S5 rack power is fully disconnected before inserting or removing the module.
  • Handle the PCB by the edges to prevent electrostatic discharge (ESD) damage to sensitive components.
  • Verify that the module is correctly seated in the designated backplane slot to ensure proper bus communication.
  • Maintain adequate ventilation within the cabinet to keep ambient temperatures within the specified 0-55 deg C range.
  • Route video signal cables away from high-voltage power lines and sources of electromagnetic interference (EMI) to maintain signal integrity.

FAQ

Q: Does this module require external power?
A: No, the 6FM1470-3AA21 is powered directly through the Simatic S5 backplane with a nominal power consumption of 15 Watts.

Q: Can this module support custom language scripts?
A: The module comes with pre-installed firmware supporting English, German, French, and Russian. It is designed for use within the WF 470 subsystem architecture.
