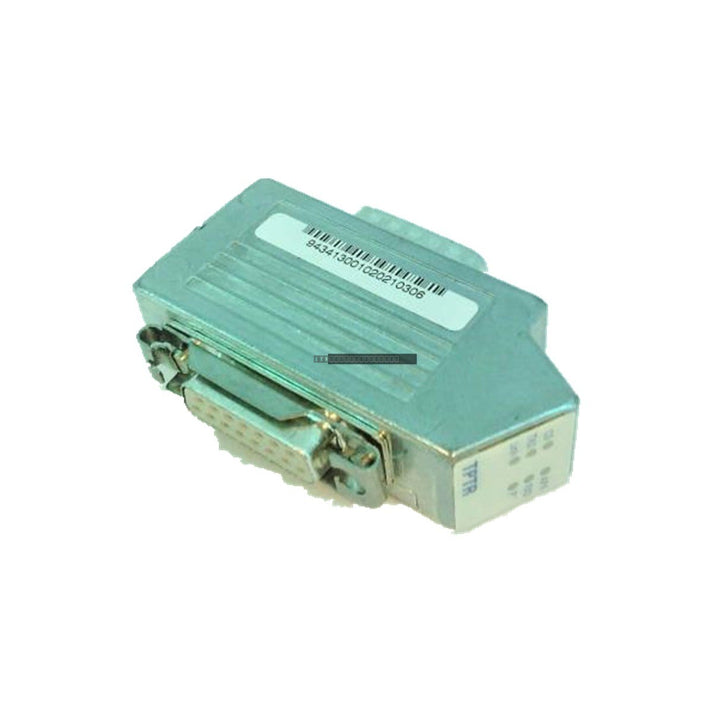

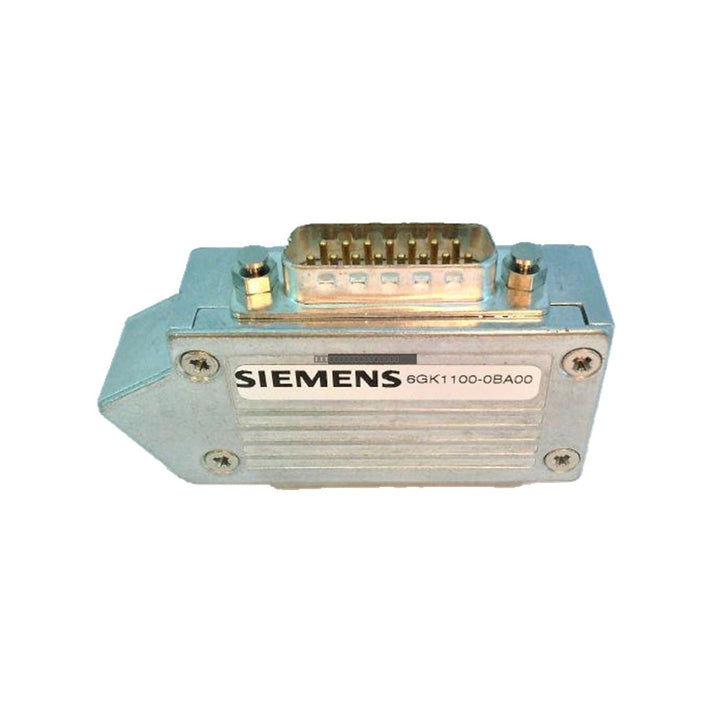

Siemens 6GK1100-0BA00 Simatic Net Transceiver Plug

Siemens 6GK1100-0BA00 Simatic Net Transceiver Plug

Description

The Siemens 6GK1100-0BA00 is a dedicated transceiver plug designed for the Simatic Net communications ecosystem. This component serves as a critical interface bridge within Industrial Ethernet and related network architectures,...

19 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 3

SKU: 6GK1100-0BA00
Proveedora: Siemens
tipo: Transceiver Plug
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

The Siemens 6GK1100-0BA00 is a dedicated transceiver plug designed for the Simatic Net communications ecosystem. This component serves as a critical interface bridge within Industrial Ethernet and related network architectures, facilitating stable data exchange between field-level devices and control systems. By providing a reliable physical connection, it minimizes signal degradation and communication interruptions in demanding industrial environments, such as manufacturing plants and automated processing facilities.

Features

  • Designed for seamless integration within the Siemens Simatic Net product family.
  • Features a pass-through design for efficient inline signal routing.
  • Equipped with a 15-pin male Sub-D connector and a 15-pin female Sub-D connector.
  • Robust mechanical housing built to withstand vibration and environmental stress in control cabinets.
  • Passive integration design ensures low-attenuation signal transmission.

Applications

This transceiver plug is typically deployed in industrial network infrastructures where reliable 15-pin Sub-D connectivity is required. It is commonly utilized in PLC-to-workstation communication, legacy LAN topology maintenance, and distributed I/O network setups across heavy industry and infrastructure automation sectors.

Technical Specifications

Model 6GK1100-0BA00
Brand Siemens
Series Simatic Net
Product Type Transceiver Plug (TPTR)
Interface A 15-Pin Male Sub-D
Interface B 15-Pin Female Sub-D
Operating Temperature 0 to 60 deg C
Power Consumption Passive

Installation Guidelines

  • Ensure the control system is powered down before installing or removing the transceiver plug to prevent electrical arcing or data corruption.
  • Align the 15-pin connectors carefully to avoid bending pins during insertion.
  • Secure the connection using the integrated mounting hardware to ensure contact stability under vibration.
  • Route communication cables away from high-voltage power lines and sources of strong electromagnetic interference to maintain signal integrity.
  • Verify that the cable shielding is properly grounded at the cabinet entry point if required by your specific network configuration.

FAQ

Is the 6GK1100-0BA00 an active device?
No, this is a passive transceiver plug designed for signal routing and interface adaptation.

What is the primary connector type for this module?
The module features a standard 15-pin Sub-D interface with a male-to-female pass-through configuration.

Can this be used in high-temperature environments?
The module is rated for operation within a standard industrial temperature range of 0 to 60 deg C.
