Description

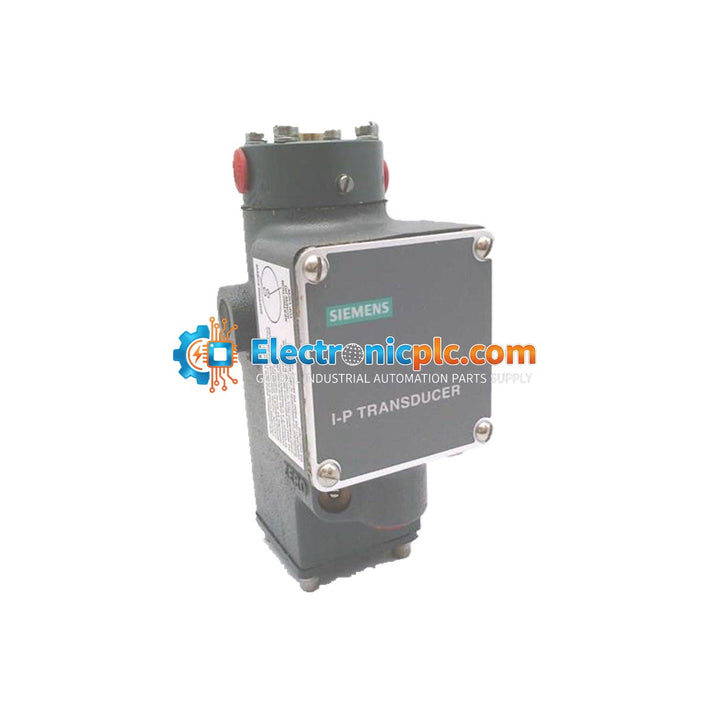

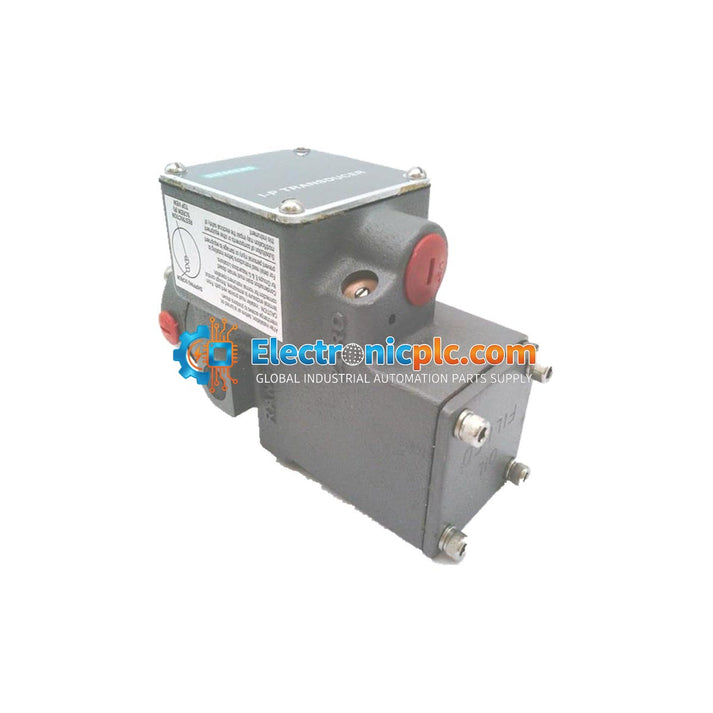

The Siemens 771-3STF2 is a precision Current-to-Pressure (I/P) transducer engineered to interface electronic control systems with pneumatic final control elements. This device converts a 1-5 mA DC electrical input signal into a proportional 3-15 PSIG pneumatic output, enabling electronic controllers to accurately modulate pneumatic valves, dampers, and actuators. It is a critical component for legacy process control environments, including oil refineries, chemical processing plants, and power generation facilities, where pneumatic actuation remains the standard for high-torque mechanical movement.

Features

• Force-Balance Mechanism: Utilizes a high-accuracy force-balance design to ensure minimal hysteresis and high linearity.
• Signal Conversion: Reliable 1-5 mA DC to 3-15 PSIG conversion for seamless integration with older control architectures.
• Rugged Construction: Industrial-grade housing designed to protect sensitive internal components from vibration and atmospheric contaminants.
• Direct Replacement: Designed to serve as a direct replacement for legacy Moore Industries and Siemens instrumentation.

Applications

This transducer is primarily used in industrial automation systems requiring the conversion of electronic control signals into pneumatic pressure for the operation of valves and actuators. Typical applications include process control loops in petrochemical, chemical, and power generation industries where pneumatic infrastructure is still in operation.

Technical Specifications

Installation Guidelines

• Mounting: Ensure the unit is mounted in a location free from excessive vibration or extreme thermal cycling to maintain calibration accuracy.
• Pneumatic Connections: Use standard 1/4 inch NPT fittings. Ensure all pneumatic lines are clean, dry, and free of debris before connection to prevent nozzle clogging.
• Supply Air: Provide a clean, regulated instrument air supply at 20 PSIG. The use of an air filter/regulator is recommended to ensure the longevity of the internal pilot mechanism.
• Wiring: Ensure proper polarity when connecting the 1-5 mA DC input signal. Follow standard industrial practices for shielded cable routing to minimize EMI interference.
• Maintenance: Periodically check for pneumatic leaks at the fittings and verify the output pressure against the input signal to ensure the unit remains within calibration tolerances.

FAQ

What is the primary function of the 771-3STF2?

The 771-3STF2 acts as an interface between electronic controllers and pneumatic actuators, converting a 1-5 mA electrical signal into a 3-15 PSIG pneumatic signal to control valves or dampers.

What supply pressure is required for this unit?

The unit requires a standard supply pressure of 20 PSIG to achieve the full 3-15 PSIG output range.

Is this unit compatible with legacy Moore Industries systems?

Yes, the 771-3STF2 is designed to be a direct replacement for legacy instrumentation originally supplied by Moore Industries or Siemens.
