Description

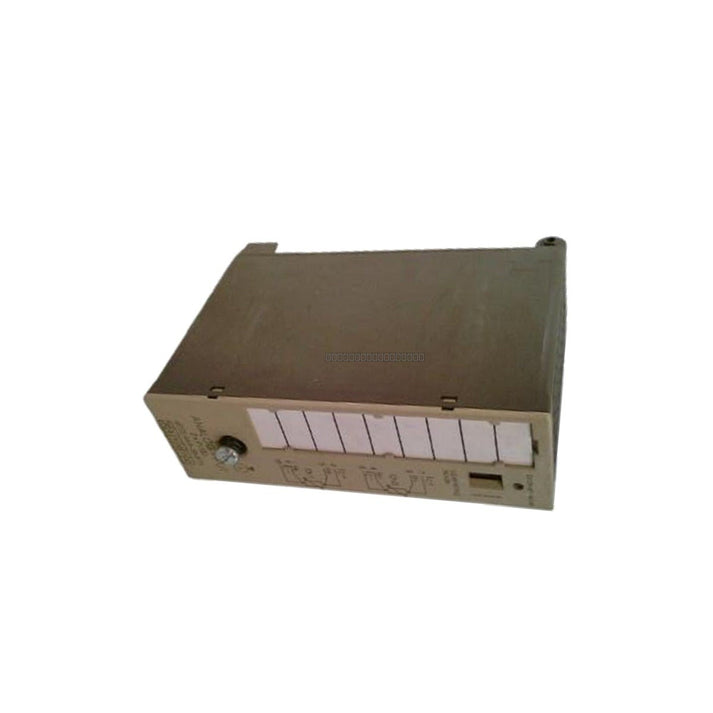

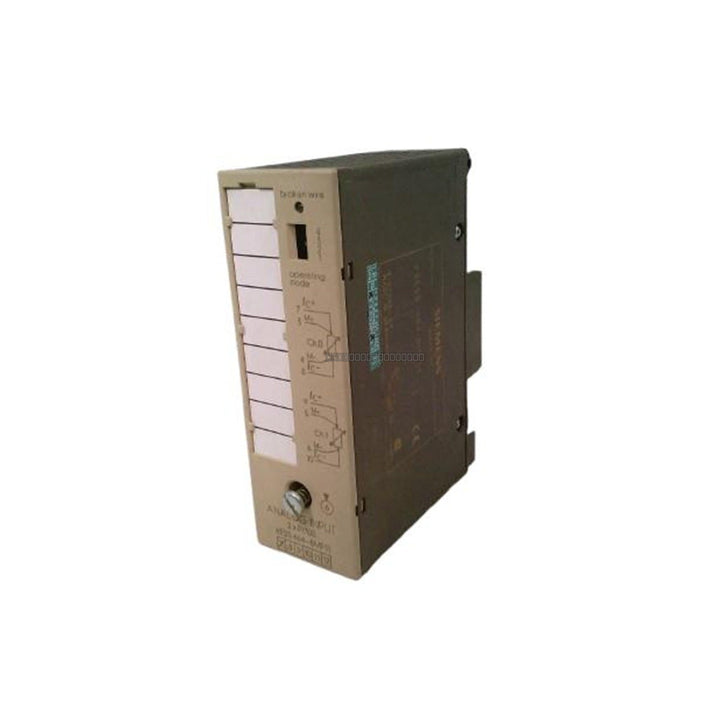

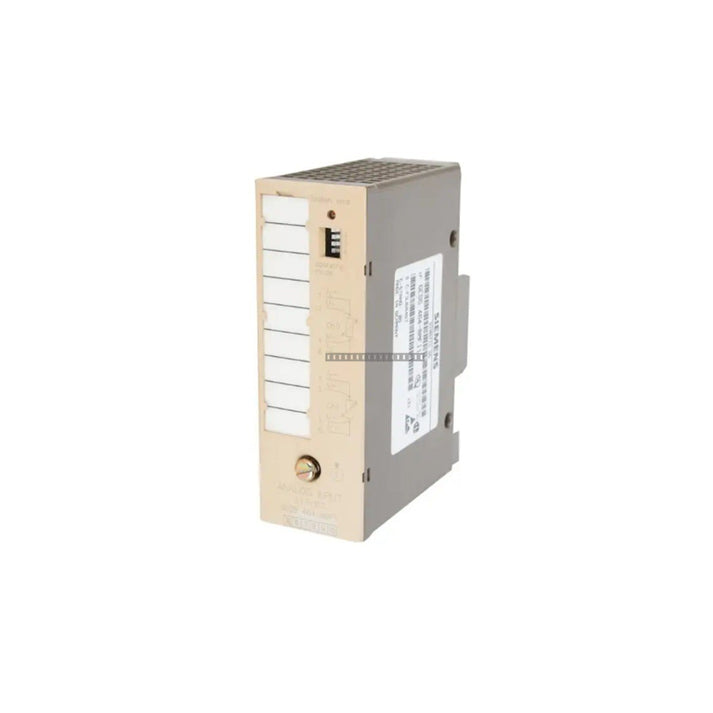

The Siemens 6ES5 464-8MF11 is an isolated 2-channel analog input module designed for the Simatic S5 architecture, including S5-90U, S5-95U, and S5-100U systems, as well as ET 100U and ET 200U distributed I/O stations. This module is engineered for high-precision conversion of low-voltage millivolt signals (+/-500 mV) and Pt100 resistance temperature detectors. By providing galvanic isolation between field signals and the internal system backplane, the module ensures signal integrity, suppresses common-mode noise, and prevents ground loop currents in demanding industrial environments such as petrochemical refining and thermal power facilities.

Features

• 2-channel isolated analog input configuration.
• Supports +/-500 mV and Pt100 RTD sensor inputs.
• Galvanic isolation between channels and the backplane to protect against electrical interference.
• Integrated signal conditioning and filtering for high noise rejection.
• Compact design compatible with standard S5-100U bus units.

Applications

This module is typically deployed in temperature-critical processing environments where precise analog-to-digital conversion is required for closed-loop control. Common applications include monitoring thermal processes in metal smelting, petrochemical plants, and power generation facilities.

Technical Specifications

Installation Guidelines

• Ensure the controller power is switched off before inserting or removing the module from the rack or bus unit.
• Mount the module securely into the designated S5-100U bus unit slot to ensure proper backplane connection.
• Use shielded cabling for all analog inputs to minimize electromagnetic interference (EMI).
• Maintain proper grounding practices to ensure the effectiveness of the galvanic isolation.
• Ensure adequate ventilation in the control cabinet to maintain operating temperatures within the 0 to 60 deg C range.

FAQ

Is this module compatible with S5-115U systems?

The 6ES5 464-8MF11 is specifically designed for the S5-90U, S5-95U, and S5-100U series. Please consult your specific system documentation before attempting installation in other S5 series hardware.

Does this module require external power?

The module draws its operational power directly from the backplane rail of the S5 system.
