Siemens 6ES5762-1AA12 PROFIBUS Bus Connector

Siemens 6ES5762-1AA12 PROFIBUS Bus Connector

Description

The Siemens 6ES5762-1AA12 is a specialized bus connector designed for reliable PROFIBUS network connectivity within SIMATIC S5 automation systems. This component serves as a critical interface for SINEC L2-DP protocols,...

15 la gente está viendo esto ahora mismo

Disponibilidad: Bajas existencias: quedan 5

SKU: 6ES5762-1AA12
Proveedora: Siemens
tipo: Bus Connector
Related Series:

Envíos y devoluciones

Entrega confiable a nivel mundial

  • Transportistas: Envíos a través de DHL, FedEx, UPS o USPS .
  • Envío: Los pedidos se procesan en 1-2 días hábiles y se envían dentro de 3-5 días hábiles .
  • Seguimiento: Detalles completos de seguimiento proporcionados por correo electrónico después del envío.

Garantía de devolución de dinero de 30 días

  • Garantía: período de devolución de 30 días para productos en stock y sellados de fábrica.
  • Condición: Los artículos deben estar sin abrir, sin usar y en su embalaje original.
  • Autenticidad: Garantizamos hardware 100% original y auténtico.

¿Necesitas más información? Consulta nuestra Política de envíos y reembolsos completa.

Autenticidad y garantía

  • Garantía genuina: Suministramos únicamente piezas de automatización industrial 100% originales, nuevas y selladas de fábrica .
  • Cobertura total: cada componente está respaldado por una garantía integral de 12 meses a partir de la fecha de compra.
  • Trazabilidad: Todos los productos se entregan con documentación original de fábrica y accesorios para un pleno cumplimiento industrial.

Soporte técnico y abastecimiento

  • Asistencia de expertos: Nuestro equipo técnico ofrece consulta gratuita para ayudarle a verificar la compatibilidad de los sistemas DCS y PLC.
  • Abastecimiento de piezas raras: nos especializamos en componentes obsoletos y difíciles de encontrar de Allen-Bradley, Siemens, ABB, HIMA y más.
  • Consultas al por mayor: contáctenos en pambo@5gplc.com para obtener precios por volumen o cotizaciones de proyectos personalizados.
Ver todos los detalles

Description

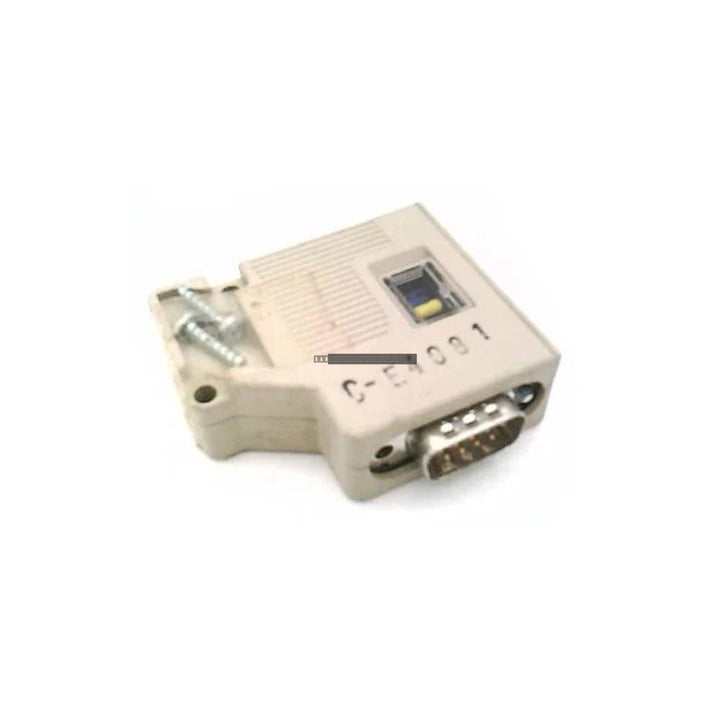

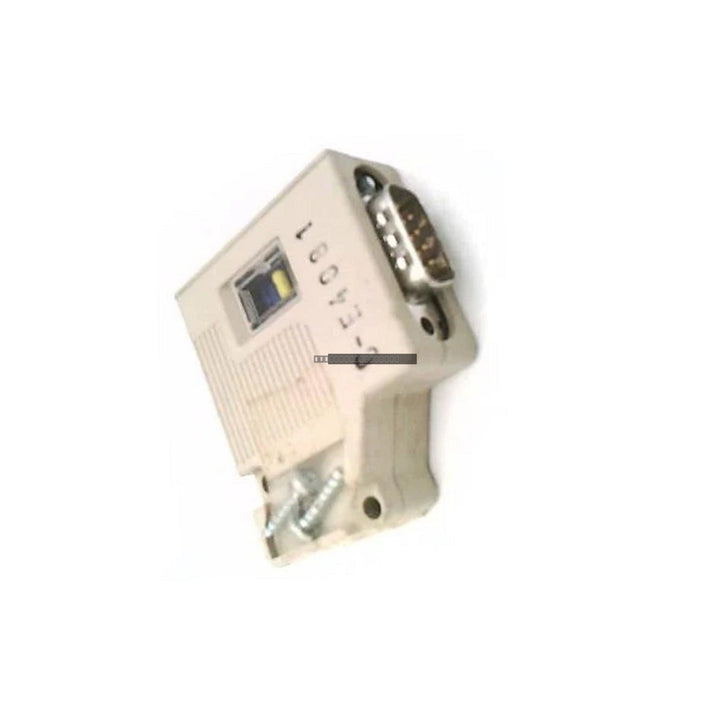

The Siemens 6ES5762-1AA12 is a specialized bus connector designed for reliable PROFIBUS network connectivity within SIMATIC S5 automation systems. This component serves as a critical interface for SINEC L2-DP protocols, ensuring robust data transmission between central controllers and decentralized field devices. Featuring a durable beige housing and an integrated diagnostic viewing window, this connector is engineered to maintain signal integrity and provide vibration-resistant performance in demanding industrial environments.

Features

  • Designed for PROFIBUS DP and SINEC L2-DP communication protocols.
  • Integrated diagnostic viewing window for rapid status verification.
  • Compact, low-profile mechanical design suitable for high-density control cabinet installations.
  • Robust construction provides shielding against electromagnetic interference (EMI).
  • Supports standard RS-485 transmission speeds for consistent network performance.
  • Passive, non-powered design for simplified integration into existing legacy architectures.

Applications

This bus connector is widely utilized in legacy industrial automation systems, including automotive manufacturing, chemical processing facilities, and material handling infrastructure. It is essential for maintaining stable communication links in decentralized periphery systems where reliable fieldbus connectivity is required to prevent unplanned downtime.

Technical Specifications

Model 6ES5762-1AA12
Brand Siemens
Product Series SIMATIC S5
Protocol SINEC L2-DP / PROFIBUS
Protection Class IP20
Operating Temperature 0 degC to 60 degC
Power Consumption Passive (Non-powered)
Housing Color Beige
Successor Model 6ES7 972-0BA42-0XA0

Installation Guidelines

  • Ensure the PROFIBUS cable is properly stripped and terminated according to standard RS-485 wiring practices to maintain shielding integrity.
  • Verify that the connector is securely seated on the device port to prevent intermittent signal loss due to vibration.
  • Use the integrated diagnostic window to confirm bus status during commissioning and routine maintenance.
  • Ensure the installation environment remains within the specified temperature range of 0 degC to 60 degC.
  • Always power down the associated network segment before inserting or removing the connector to prevent potential electrical shorts or data corruption.

FAQ

What is the primary function of the 6ES5762-1AA12?
This module acts as a physical interface connector for PROFIBUS networks, specifically within the SIMATIC S5 ecosystem, to facilitate stable communication between controllers and field devices.

Is this connector powered?
No, the 6ES5762-1AA12 is a passive device and does not require an external power supply.

What is the recommended successor for this part?
The manufacturer-recommended successor for this connector is the 6ES7 972-0BA42-0XA0.
